Fiber‑Optic Drone Model A: Quick Answer & Details for Industrial Missions
by SkyVolt FPV Engineering Team · About the authors

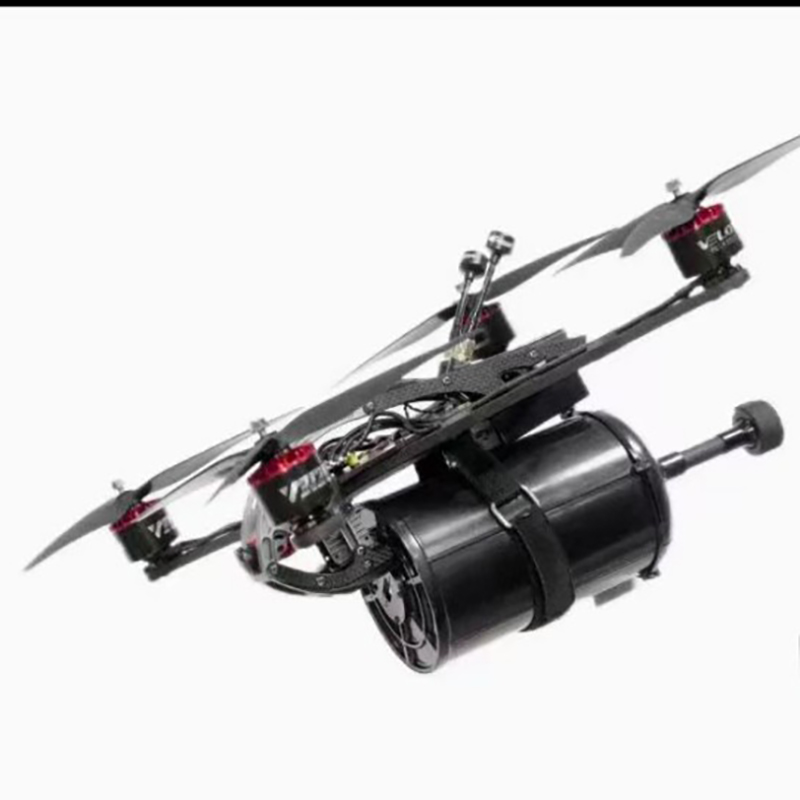

Quick Answer Fiber‑Optic Drone Model‑A is a 7‑inch heavy‑lift long‑endurance industrial drone. It features strong payload capacity and long flight range, delivering high‑speed performance and high ceiling, ideal for industrial operations such as material delivery and site inspection.
The Details
Hardware Configuration
Equipped with 7‑inch Mark4 V2 frame, F405 flight controller and ICM‑42688 gyroscope. It adopts 6S 60A ESC, paired with 2807 1300KV motors and 7040 propellers.
Its vision system consists of a 1500TVL day‑vision analog camera and Analog 5.8Ghz 88CH 3W VTX. The receiver is ELRS‑915Mhz for long‑range radio control.
- **Flight Performance Specifications**
Maximum altitude: 5000 Meters
Maximum speed: 165 km/h
Max fly distance: 20 km
With 6S 6000mAh battery:
No‑load flight time: 20‑25 mins
Max‑load flight time (2kg payload): 10‑15 mins
For Industrial Missions
For long‑range inspection and material delivery in open areas, this drone’s 2 kg payload capacity and 20‑km flight range satisfy most small‑to‑medium‑scale industrial tasks. Its top speed of 165 km/h supports large‑area rapid site survey.
The 5000‑meter service ceiling adapts to plateau and mountain operation environments. The ELRS‑915Mhz receiver provides reliable anti‑interference performance for long‑distance control.
The analog video transmission solution is cost‑effective for daytime visible‑light industrial surveys. Upgrade to digital HD VTX if noise‑free high‑definition video is required for your mission.
The Model‑A platform supports optional digital VTX upgrade to meet different industrial image‑quality requirements.
