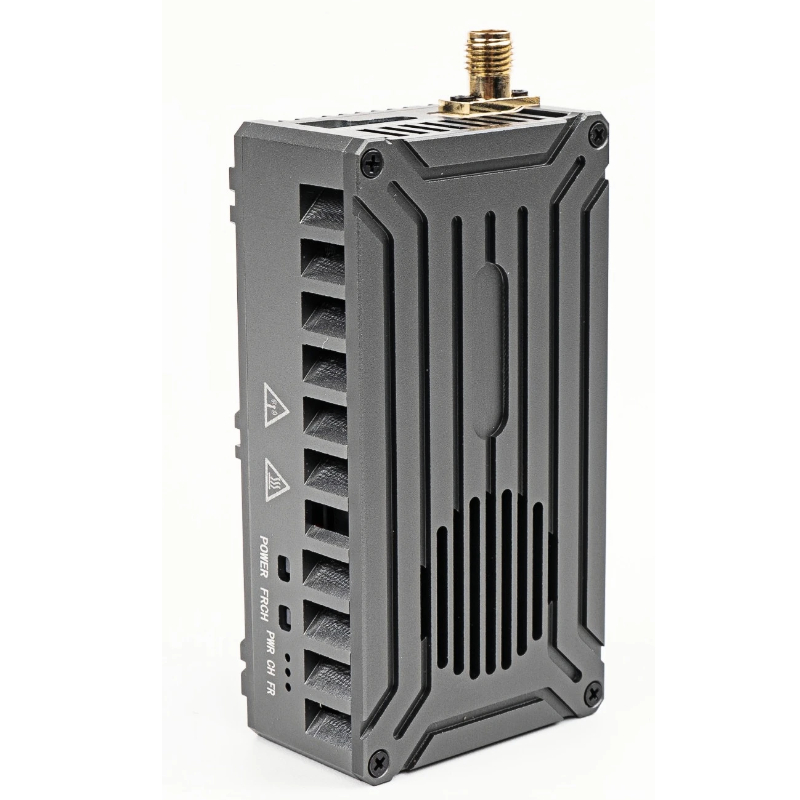

High-Power VTX Guide: Heat Management, Antennas & Component Selection

• Quick Answer

• The Details: Wattage vs. Heat

• The Details: Antenna & Cable Upgrades

• For Industrial Missions

High power requires robust components. Here is how to build a reliable long-range video link.

Quick Answer

Don't just chase high wattage. A 10W VTX will overheat rapidly without proper airflow and a capable power supply. To truly extend range, pair a high-power VTX with high-gain directional antennas (like patch or helical) and ensure your coax cables and flight controller can handle the electrical load.

The Details: Wattage vs. Heat

We often see pilots buying 5W or 10W transmitters (like our 10W 5.8G Analog VTX or 5W-5.8G VTX-FM) expecting instant range. However, high wattage comes with physical limits:

1.Thermal Throttling: A 10W VTX generates massive heat. If not mounted in high airflow, it will overheat, and the internal protection circuit will automatically drop the power (thermal throttling) to save itself.

2.Power Consumption: A 10W VTX can drain a standard 6S LiPo battery very quickly. Ensure your drone has the battery capacity to support it.

3.Bench Testing: Never leave a high-power VTX idle on the ground. Always use a cooling fan during setup.

The Details: Antenna & Cable Upgrades

A high-power VTX is only as good as the antenna connected to it.

1.Connector Types: High-power modules often use SMA or RP-SMA connectors, which are more robust than IPEX. Ensure your antennas match this standard. For micro HD setups like the CADDX Avatar GT2, ensure you are using high-quality MMCX-to-SMA pigtails.

2.Antenna Gain: Upgrading to a high-gain directional antenna on your goggles is often more effective than doubling VTX power. A 10dBi patch antenna can effectively double your range without adding any heat to the drone.

3.Cable Shielding: High-power RF output requires heavily shielded coax cables. Cheap or damaged cables will leak RF energy, causing interference with your GPS or radio receiver (ELRS/Crossfire).

For Industrial Missions

For industrial BVLOS (Beyond Visual Line of Sight) and extreme long-range flights, thermal management and component quality are critical. For mission-specific payloads like the Eclipse 009 HD Thermal Camera, we recommend pairing it with a VTX that supports stable power input (e.g., 7-36V wide input) and mounting it on a heat-sinked, vibration-isolated platform.

All SkyVolt high-power VTX modules are built with heavy-duty heat sinks and support wide voltage inputs. If you need help selecting the right antenna or power supply for your heavy-lift drone, contact our engineering team.
