F405 V5 12S FPV FC

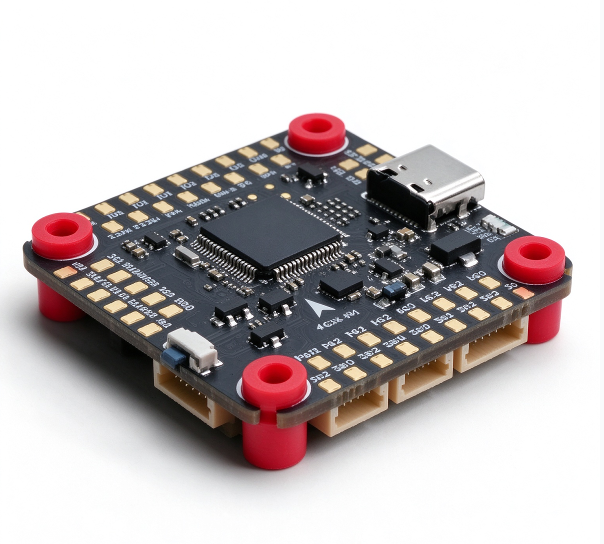

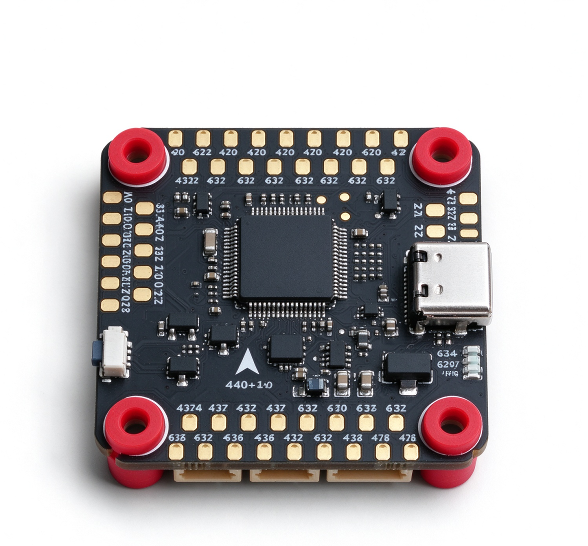

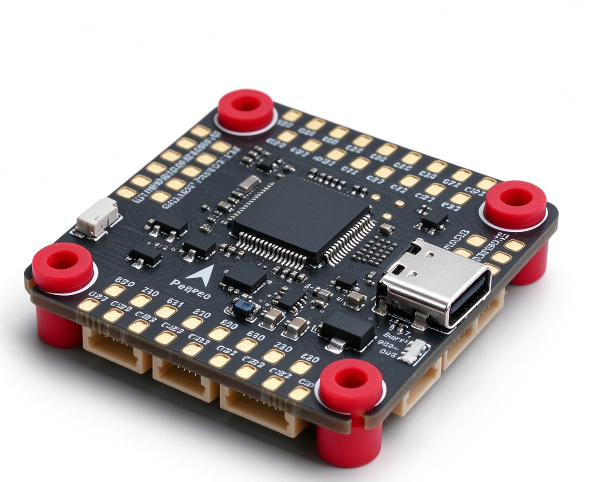

FPV FC F405 V5 12S Flight Controller for FPV Drone
| Mounting Holes | 30.5 × 30.5mm / M3 |
|---|---|
| Operating Voltage | DC 7-36V (2-8S) |
| BEC1 | 5V/2.5A |
| BEC2 | 12V/2.5A |
| UART Ports | 5 |
| Motor Output Channels | 8 |
| Blackbox | 16M |
| MCU | STM32 F405 |
| Processor Frequency | 168MHz |
| Gyroscope | 42688 |
| OSD Chip | AT7456E |
| Supported Receiver Protocols | CRSF / SBUS / IBUS / DSM |
| Buzzer Pad | Supported |
| Current Sensor Telemetry Pad | Supported |
| DJI O3 / O4 Air Unit Interface | Supported |
| Surge Protection | Supported |
| Flight Controller Firmware | Betaflight |
Request Quote
Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details
This F405 V5 flight controller adopts STM32 F405 main chip, 168MHz high-speed processor and ICM42688 gyro, pre-supported Betaflight firmware. It integrates AT7456E OSD chip, 16M Blackbox, dual BEC power supply, perfect for freestyle, cinematic and long-range FPV builds. It reserves dedicated interface for DJI O3 / O4 Air Unit, compatible with common receiver protocols.
Key Features
- STM32 F405 MCU, 168MHz, stable flight performance
- ICM42688 high precision gyro
- Built-in AT7456E OSD chip
- 5 UART ports, 8 motor outputs
- Dual BEC: 5V/2.5A + 12V/2.5A
- 16M Blackbox for flight log recording
- Reserved DJI O3/O4 digital VTX interface
- Multiple receiver protocols: CRSF, SBUS, IBUS, DSM
- With buzzer pad & current telemetry pad, surge protection circuit
