FM FPV VTX

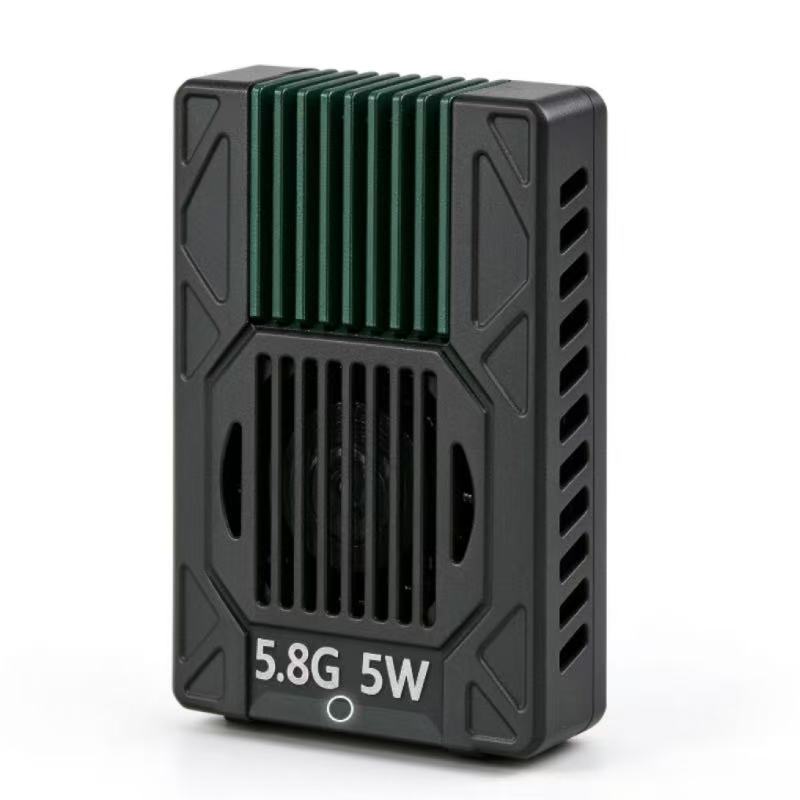

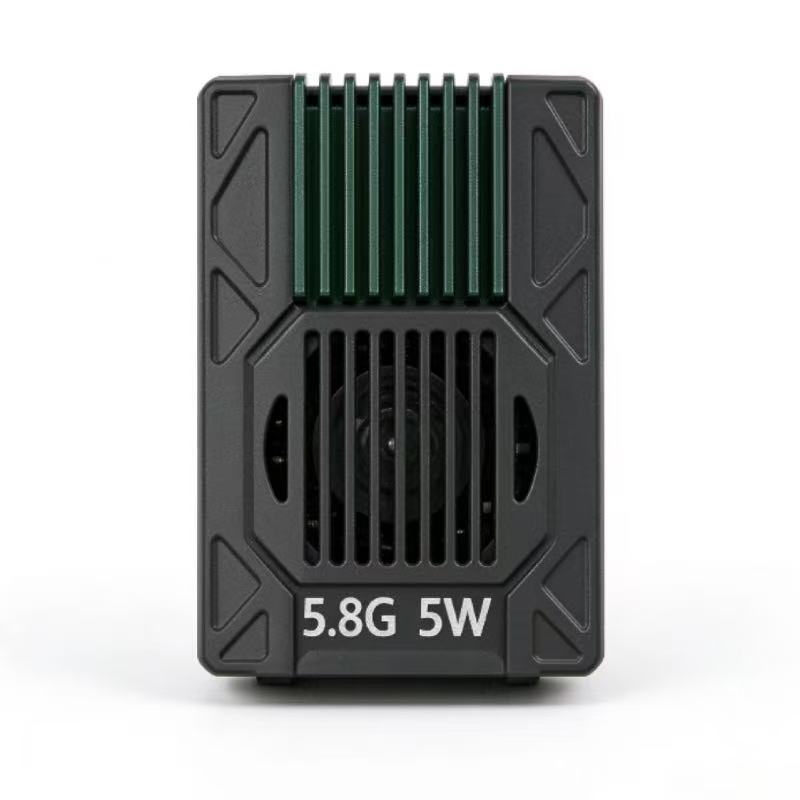

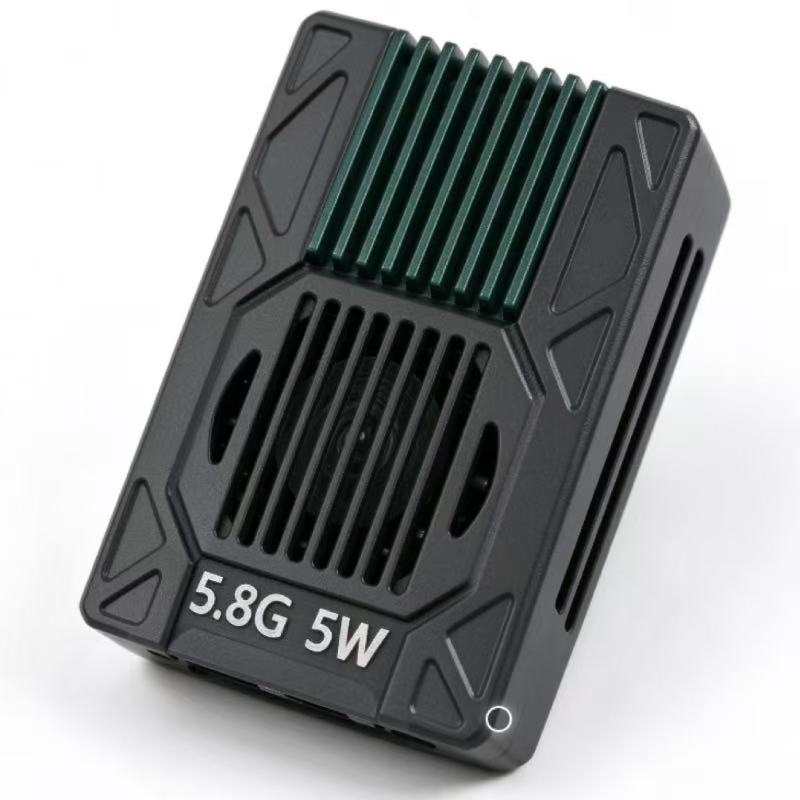

5W-5.8G VTX-FM 5.8GHz 5W FM Analog VTX FPV Video Transmitter
| Product Model | 5W-5.8G VTX-FM |
|---|---|
| Frequency | 5.8GHz (4900~6100MHz) |
| Output Power | 37dBm±1dBm (MAX) |
| Channels | 88CH |
| Power Levels | 25mW, 250mW, 1W, 2W, 5W |
| Modulation Type | FM Frequency Modulation |
Request Quote
Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details
Skyvolt 5W-5.8G VTX-FM 5.8GHz 5W FM Analog VTX FPV Video TransmitterSkyvolt 5W high power analog FPV VTX adopts FM frequency modulation, long range video transmission for FPV drones. It comes with 88 channels and 5 adjustable power output from 25mW up to 5W. Wide input voltage 7~36V makes it compatible for different FPV aircraft. Support IRC Tramp protocol and OSD parameter adjustment, easy to configure. Support both PAL and NTSC video standard.
| Dimensions | 53mm×33mm×17mm |
| Weight | 50g (Antenna not included) |
| Control Protocol | IRC Tramp, OSD parameter adjustment supported |
| Channel Bandwidth | 8MHz |
| Antenna Connector | MMCX |
| Video Standard | NTSC/PAL |
| Color | Black-Green |
