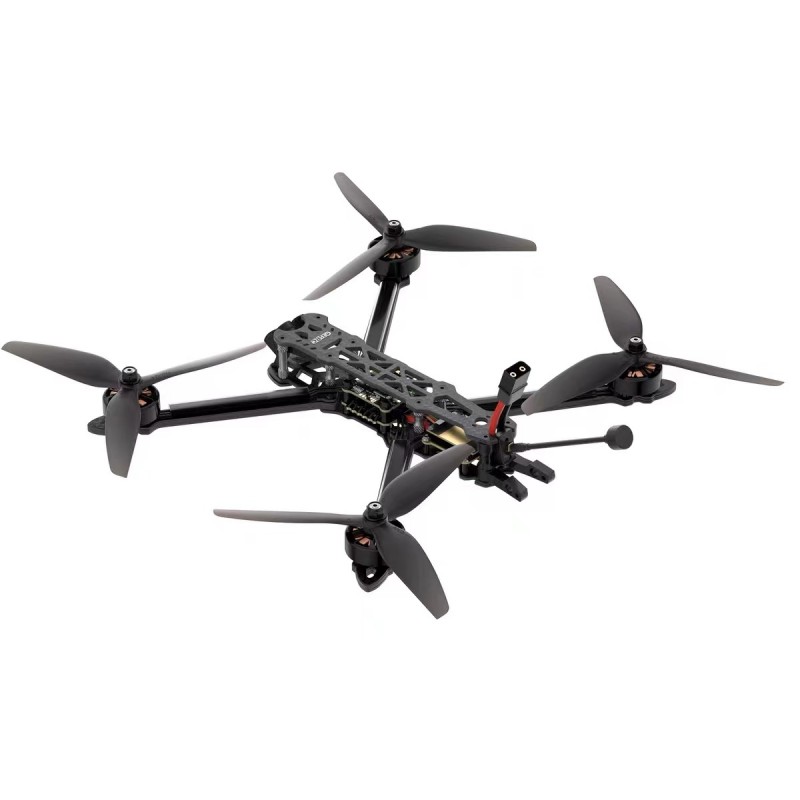

AI-enabled FPV drone featuring intelligent recognition and automatic target locking.
by SkyVolt FPV Engineering Team · About the authors
In this guide
- Product Overview
- Key Features
AI enabled FPV drone featuring intelligent recognition
Product Overview

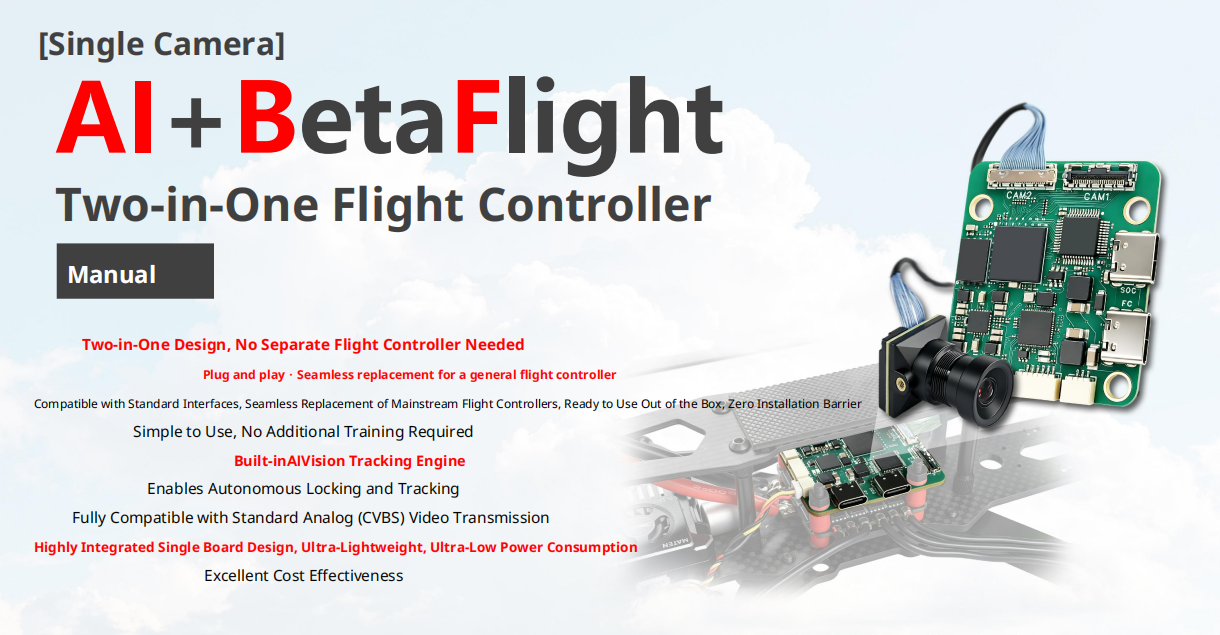

This all‑in‑one AI vision flight controller integrates flight control and intelligent visual tracking function, eliminating the need for an extra separate flight controller. Featuring plug‑and‑play installation and standard interfaces, it can seamlessly replace mainstream flight controllers and works right out of the box. No special training is needed for operation, ideal for 5‑18‑inch quadcopters.

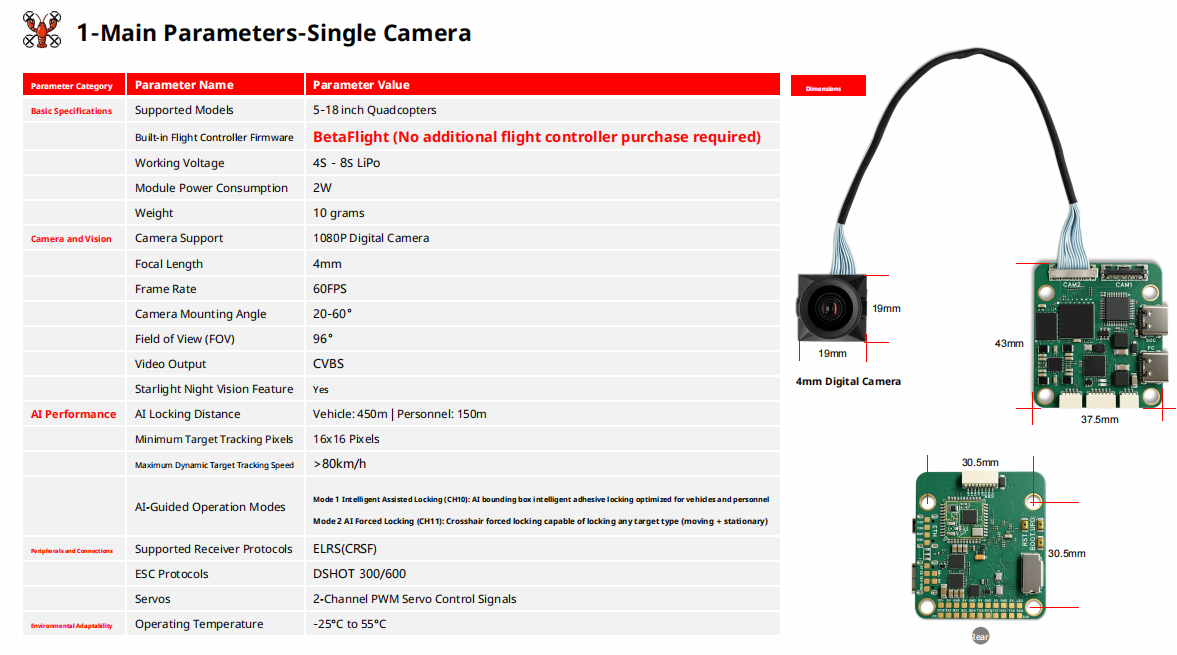

Key Features
Built‑in BetaFlight flight controller firmware, no extra flight controller purchase required. Standard interfaces support seamless replacement of common flight controllers, true plug‑and‑play.
✅ Powerful Built‑in AI Vision Tracking Engine
Realize autonomous target locking & tracking. Two working modes: intelligent assisted locking for vehicles/personnel, and crosshair forced locking for both moving and static targets.
- Max locking distance: 450m for vehicles, 150m for personnel
- Supports target tracking with minimum 16×16 pixels
- Dynamic target tracking speed up to 80km/h
✅ Excellent Imaging Performance
Works with 1080P digital camera, 4mm focal length, 60FPS frame rate, 96° wide field‑of‑view, adjustable camera mounting angle 20‑60°. Equipped with starlight night vision, compatible with standard CVBS analog video transmission.
✅ Ultra‑light & Low‑power Single‑board Hardware
Only 10g weight, module power consumption merely 2W. Operates on 4S‑8S LiPo power input. Wide working temperature range: ‑25℃ ~ 55℃. High cost‑effective complete solution.
✅ Rich Peripheral Compatibility
- Receiver protocol: ELRS(CRSF)
- ESC protocol: DSHOT 300/600
- 2‑channel PWM servo control signals output
All SkyVolt drones can be configured with AI systems. Please specify your operating environment and payload requirements via the quotation form, and we will recommend the optimal configuration for your specific mission.
