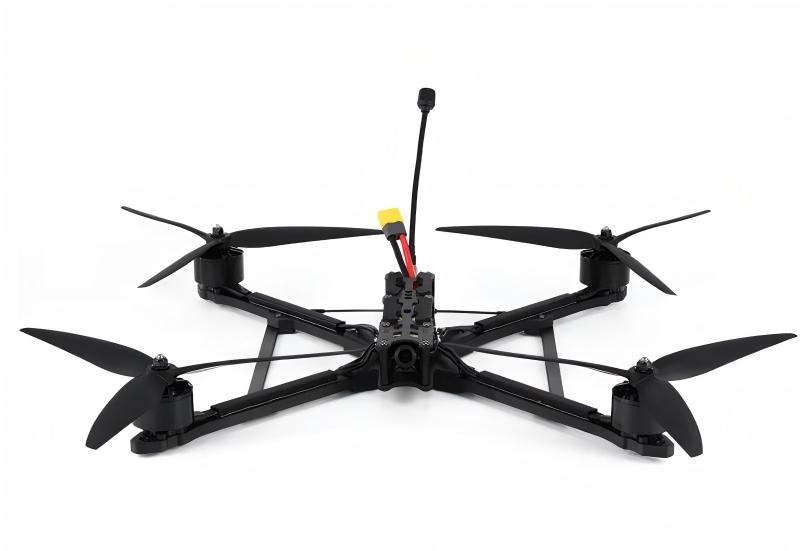

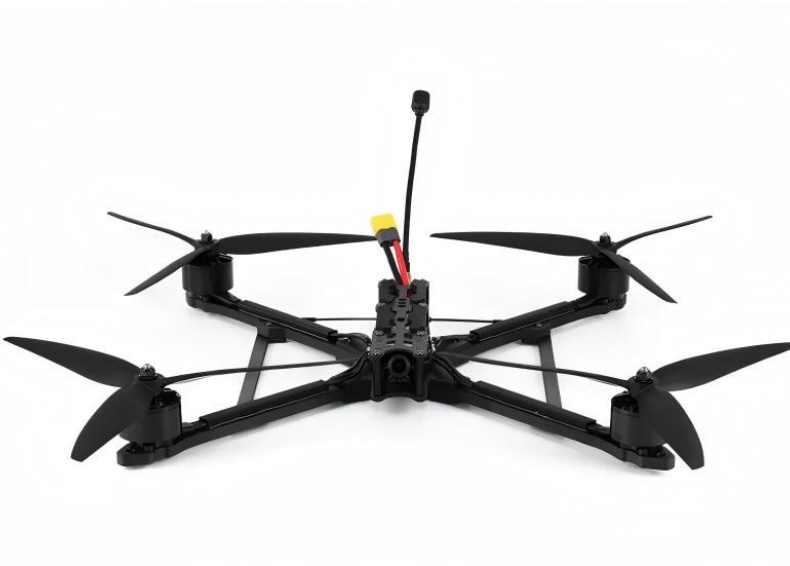

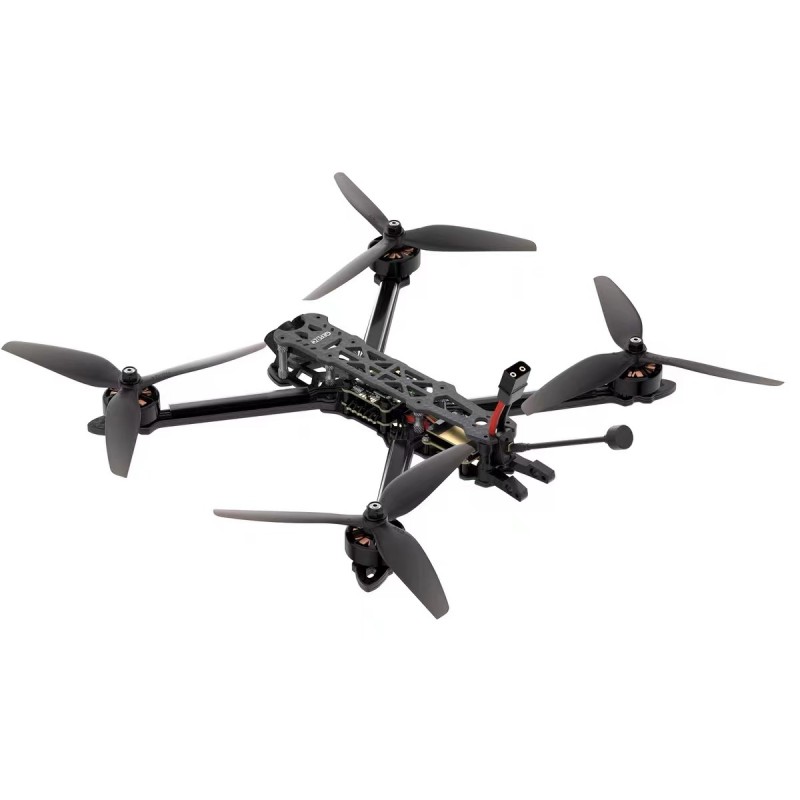

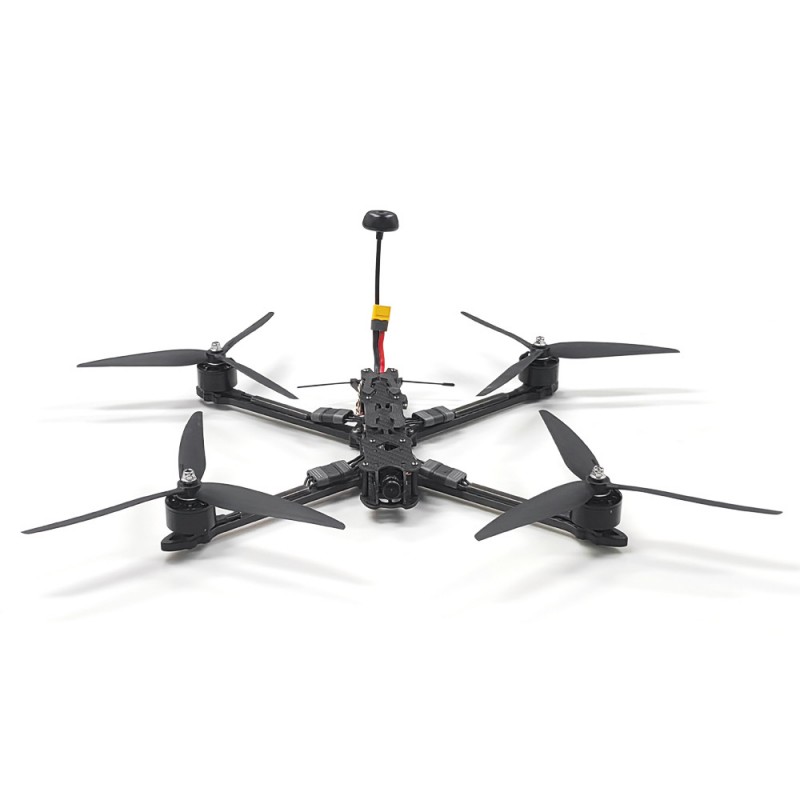

13inch AI Module FPV Drone  Automatic Target Locking and Auto Tracking
13inch AI Module FPV Drone  Automatic Target Locking and Auto Tracking photo 1 13inch AI Module FPV Drone  Automatic Target Locking and Auto Tracking photo 2 13inch AI Module FPV Drone  Automatic Target Locking and Auto Tracking photo 3 13inch AI Module FPV Drone  Automatic Target Locking and Auto Tracking photo 4
AI-F13 AI FPV Drone

13inch AI Module FPV Drone Automatic Target Locking and Auto Tracking

NameAI-F13
FCF722
ESC8S 80A
Motor4214-380KV
Camera1500TVL Day Vision
VTXAnalog 5.8GHz 88CH 3W
RXELRS-915Mhz
Maximum Height5000 Meters
Maximum Speed130 km/H
Fly Distance20 km
Payload4.5KG
Request Quote Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
  • OEM / ODM customization supported
  • Prototype in 7–15 days
  • 12-month warranty, 24h technical support
Customize This Platform

Product Details

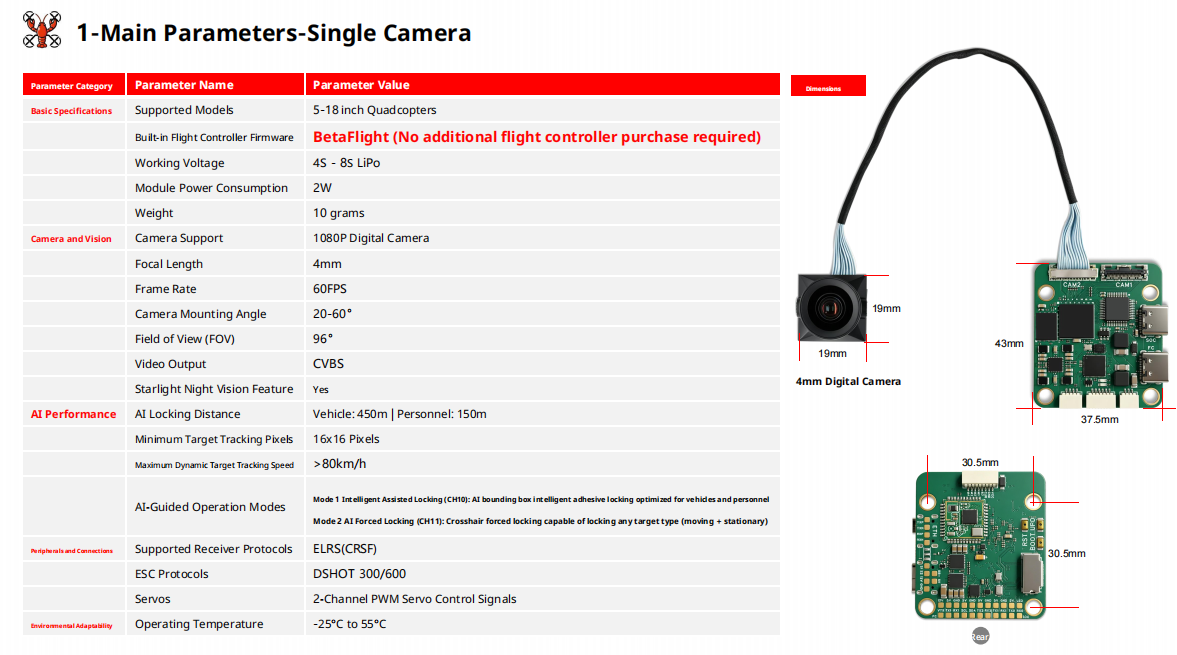

Product Overview

This all‑in‑one AI vision flight controller integrates flight control and intelligent visual tracking function, eliminating the need for an extra separate flight controller. Featuring plug‑and‑play installation and standard interfaces, it can seamlessly replace mainstream flight controllers and works right out of the box. No special training is needed for operation, ideal for 5‑18‑inch quadcopters.

Key Features

✅ 2‑in‑1 Integrated Design**
Built‑in BetaFlight flight controller firmware, no extra flight controller purchase required. Standard interfaces support seamless replacement of common flight controllers, true plug‑and‑play.

✅ Powerful Built‑in AI Vision Tracking Engine**
Realize autonomous target locking & tracking. Two working modes: intelligent assisted locking for vehicles/personnel, and crosshair forced locking for both moving and static targets.
  • Max locking distance: 450m for vehicles, 150m for personnel
  • Supports target tracking with minimum 16×16 pixels
  • Dynamic target tracking speed up to 80km/h
✅ Excellent Imaging Performance**
Works with 1080P digital camera, 4mm focal length, 60FPS frame rate, 96° wide field‑of‑view, adjustable camera mounting angle 20‑60°. Equipped with starlight night vision, compatible with standard CVBS analog video transmission.

✅ Ultra‑light & Low‑power Single‑board Hardware**
Only 10g weight, module power consumption merely 2W. Operates on 4S‑8S LiPo power input. Wide working temperature range: ‑25℃ ~ 55℃. High cost‑effective complete solution.

✅ Rich Peripheral Compatibility
  • Receiver protocol: ELRS(CRSF)
  • ESC protocol: DSHOT 300/600
  • 2‑channel PWM servo control signals output
