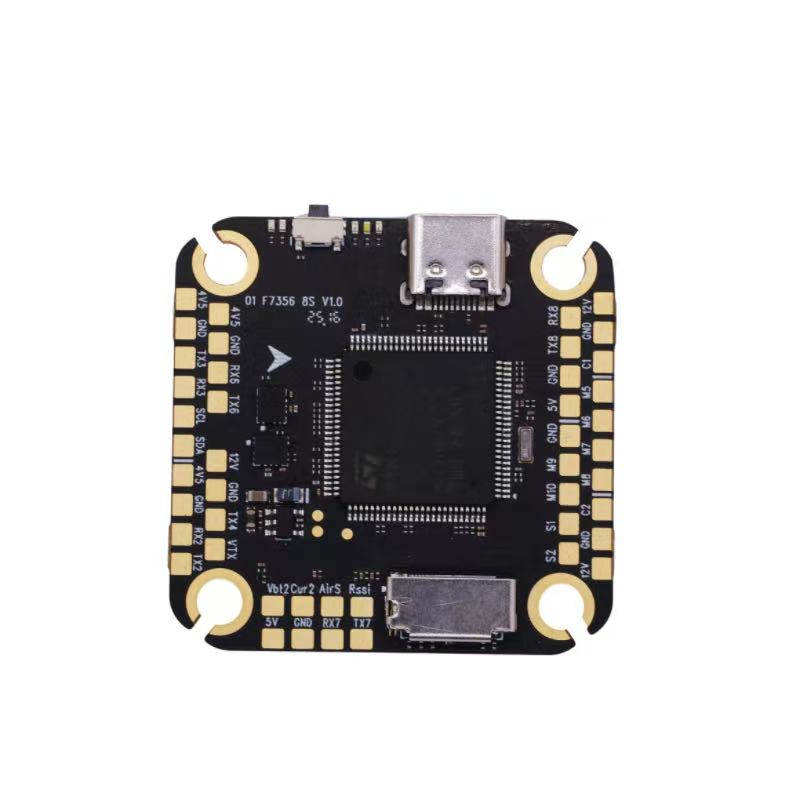

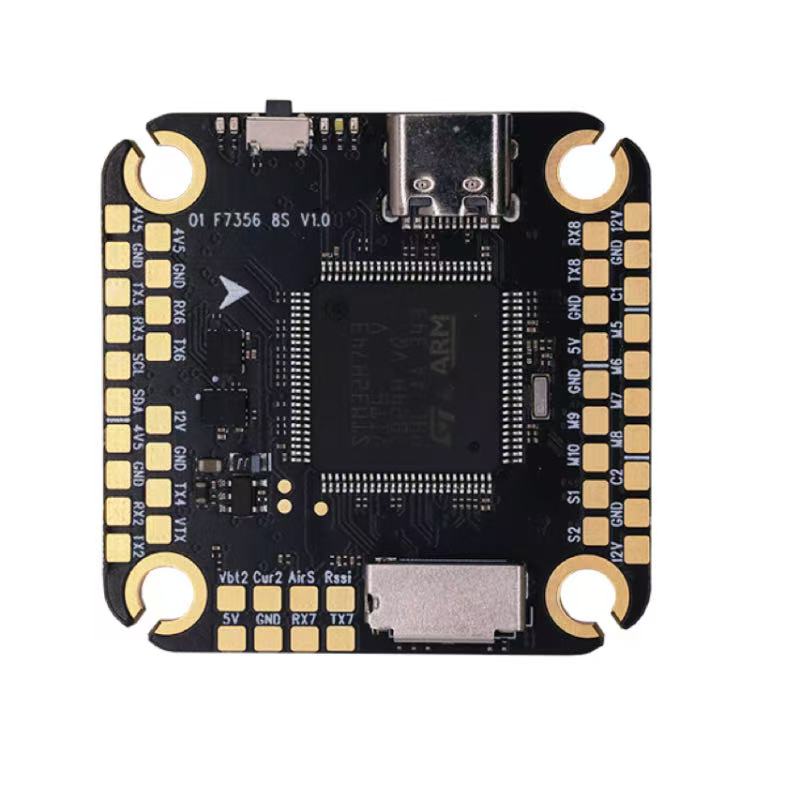

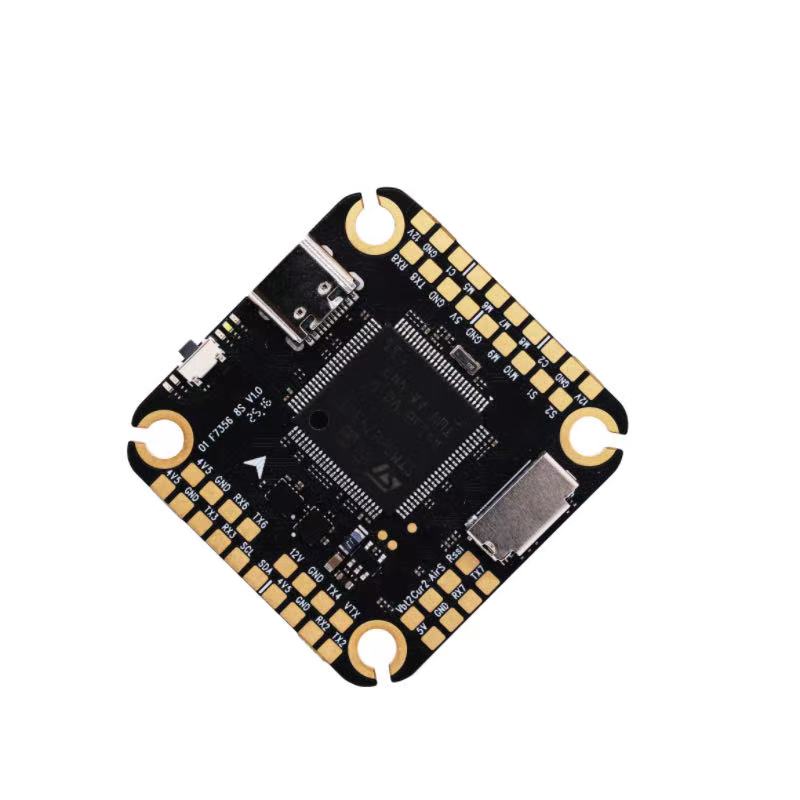

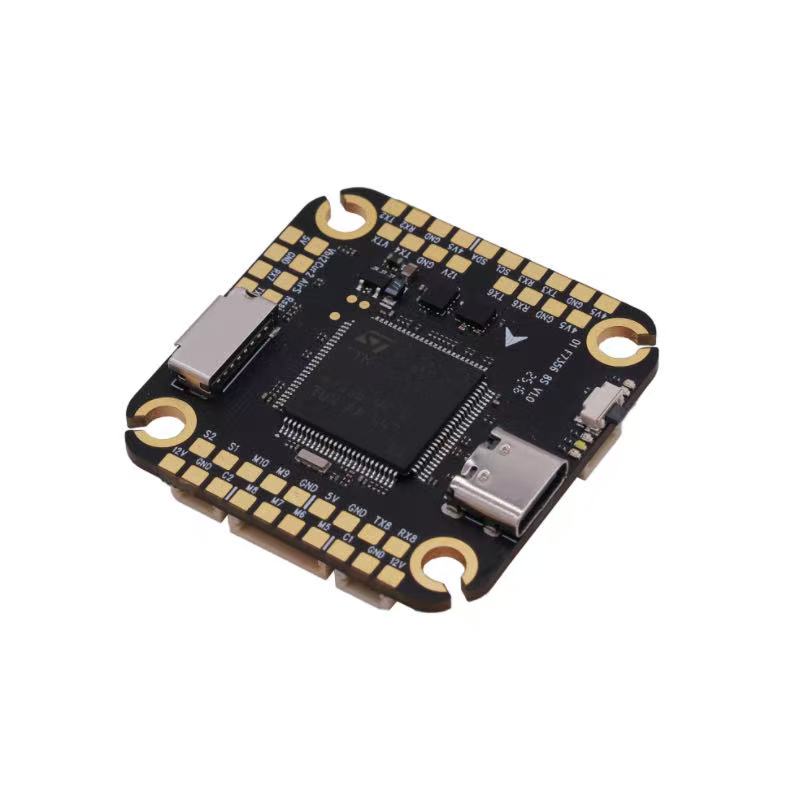

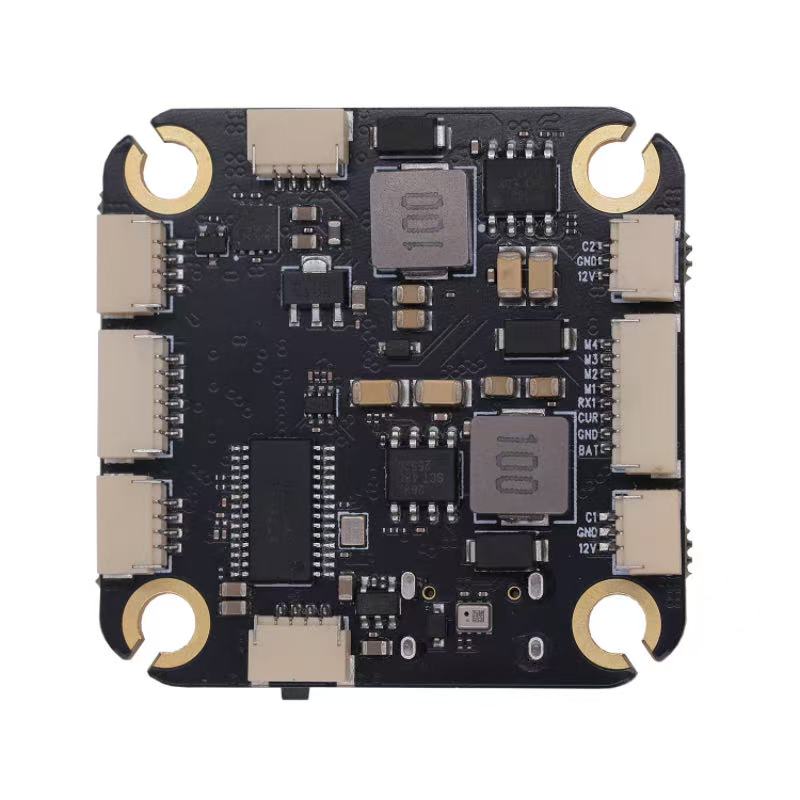

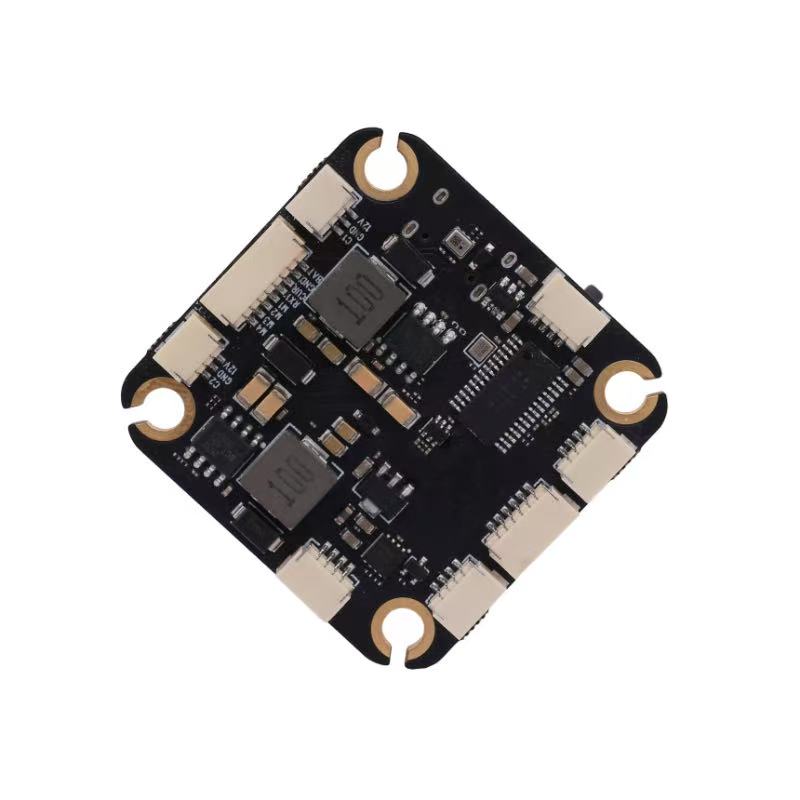

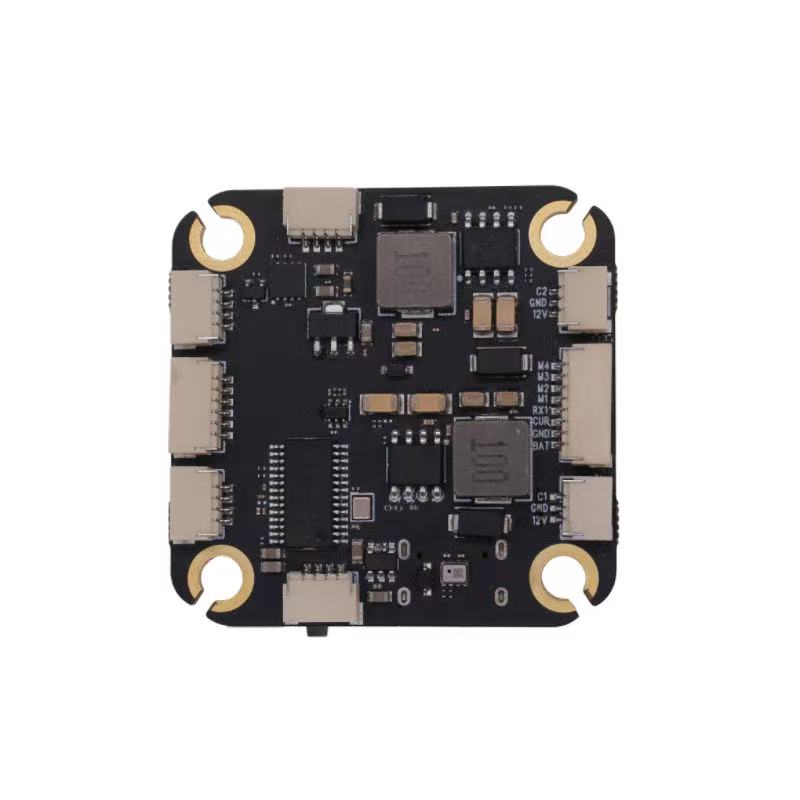

FPV FC H743 V5 8S Dual Gyroscope Flight Controller for FPV Drone
FPV FC H743 V5 8S Dual Gyroscope Flight Controller for FPV Drone photo 1 FPV FC H743 V5 8S Dual Gyroscope Flight Controller for FPV Drone photo 2 FPV FC H743 V5 8S Dual Gyroscope Flight Controller for FPV Drone photo 3 FPV FC H743 V5 8S Dual Gyroscope Flight Controller for FPV Drone photo 4 FPV FC H743 V5 8S Dual Gyroscope Flight Controller for FPV Drone photo 5 FPV FC H743 V5 8S Dual Gyroscope Flight Controller for FPV Drone photo 6 FPV FC H743 V5 8S Dual Gyroscope Flight Controller for FPV Drone photo 7
H743 8S Dual Gyro FPV FC

FPV FC H743 V5 8S Dual Gyroscope Flight Controller for FPV Drone

Mounting Holes30.5 × 30.5mm / M4
Operating VoltageDC 7-65V (2-12S)
BEC15V/2.5A
BEC212V/2.5A
UART Ports7
CAN Interface1
Motor Output Channels8
Servo Output Channels4
MCUSTM32-H743
Maximum MCU Frequency480MHz
Blackbox16M Onboard / SD Card
Gyroscope42688 × 2
OSD Chip (Character Overlay Chip)AT7456E
Supported Flight Controller FirmwareBetaflight / ArduPilot / INAV / PX4
Supported Receiver ProtocolsCRSF / SBUS / IBUS / DSM
Buzzer PadSupported
Current Sensor Telemetry InterfaceSupported
DJI O3 / O4 Air Unit InterfaceSupported
Surge ProtectionSupported
Request Quote Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
  • OEM / ODM customization supported
  • Prototype in 7–15 days
  • 12-month warranty, 24h technical support
Customize This Platform

Product Details

Features:

1. The PCB uses high-end 6-layer 1oz thick copper, with strong anti-interference capability.
2. Features a dual gyroscope design to reduce error from one gyroscope.
3. Utilizes industrial-grade LDO, resistant to high temperatures.
4. Comes with built-in DJI sky terminal, easy to install without soldering.
5. Reserves external 5V power supply for LED light strips, customizable settings to control
the light strips through the remote control channels.
6. Uses high-quality Murata capacitors from Japan, with strong filtering performance.
7. Outputs control signals for ten motors.
8. Supports four types of firmware: Betaflight ArduPilot.
9. Supports both digital and analog video transmission, and can support dual cameras.
10. External MicroSD card support (maximum 4G).
11. Supports airspeed sensor, magnetometer, and data transmission.
12. 8-channel serial port.
13. Supports dual servos.
14. Supports CAN interface.
15. Supports dual current meter interfaces, default is C1, can switch freely between C1 and
C2 through the remote control.



Size: 40*40mm

Product net weight: 11.33g
