F722 V5 12S FPV FC

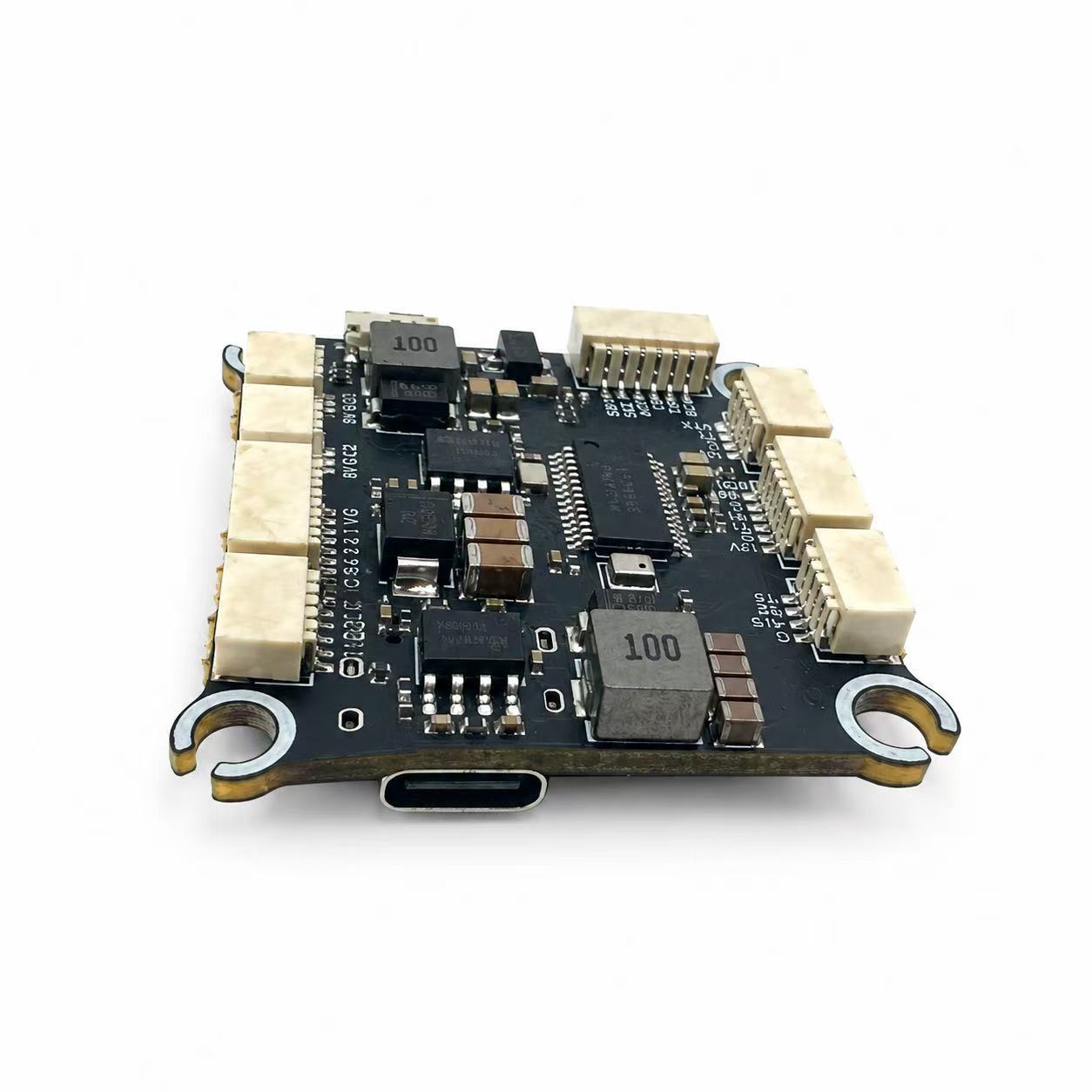

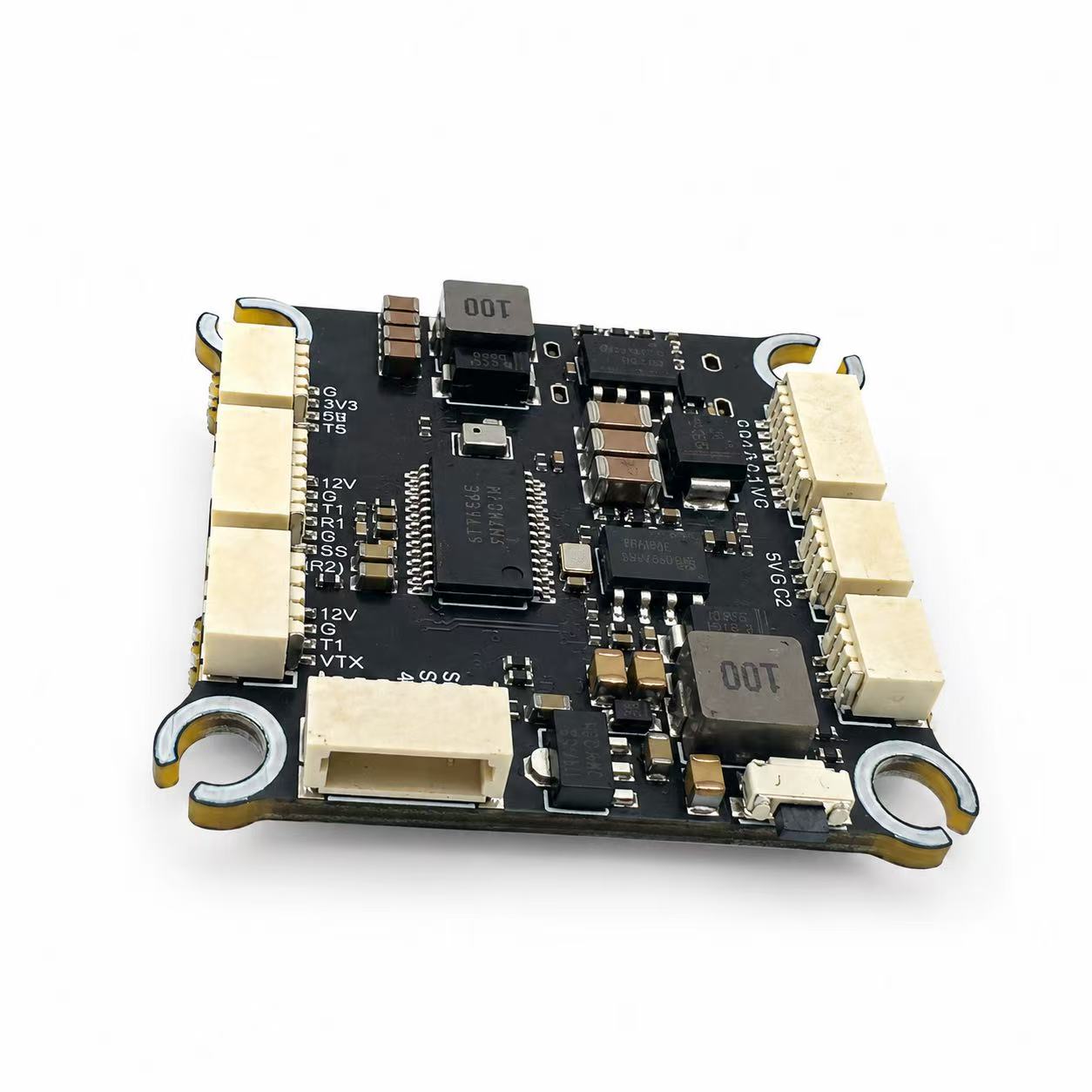

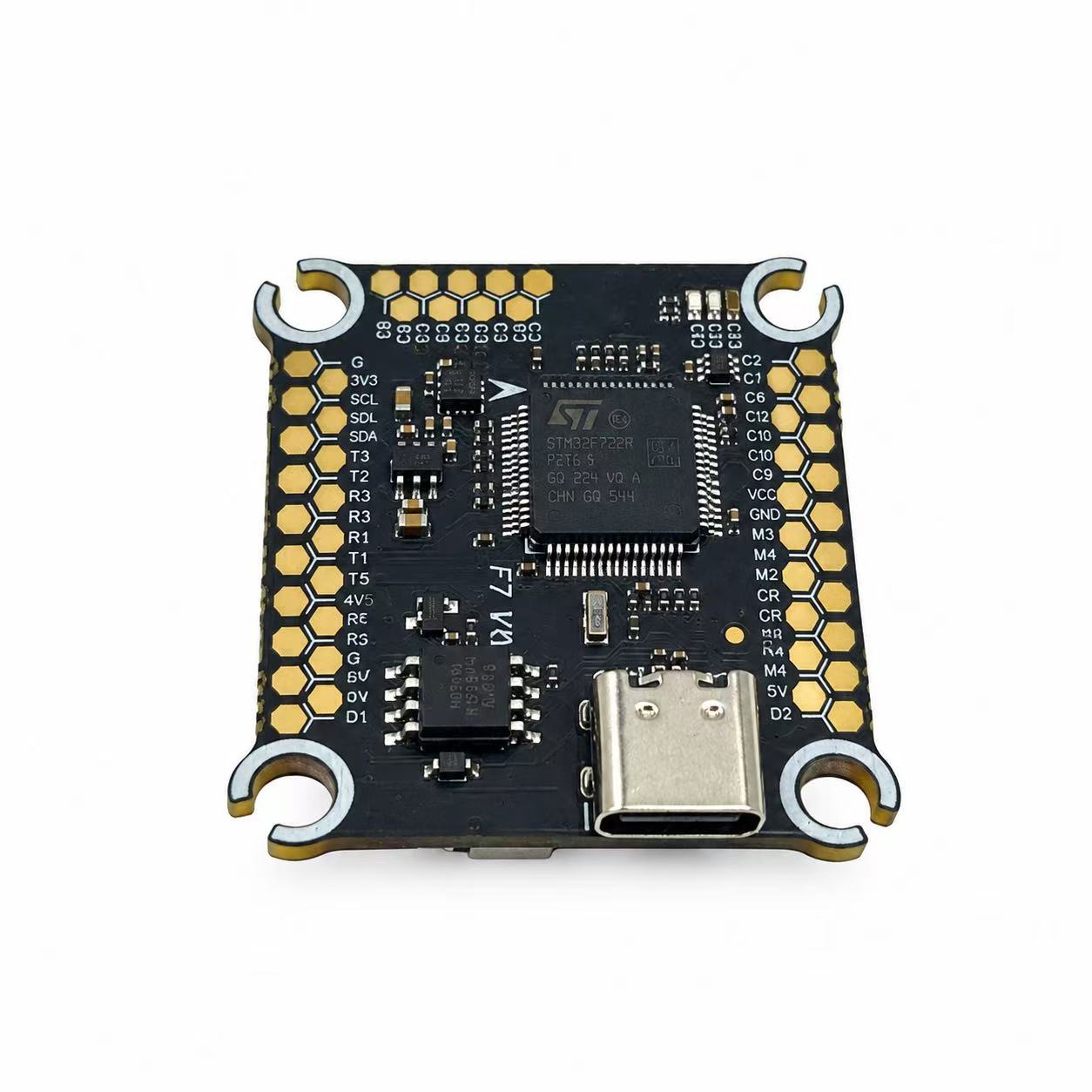

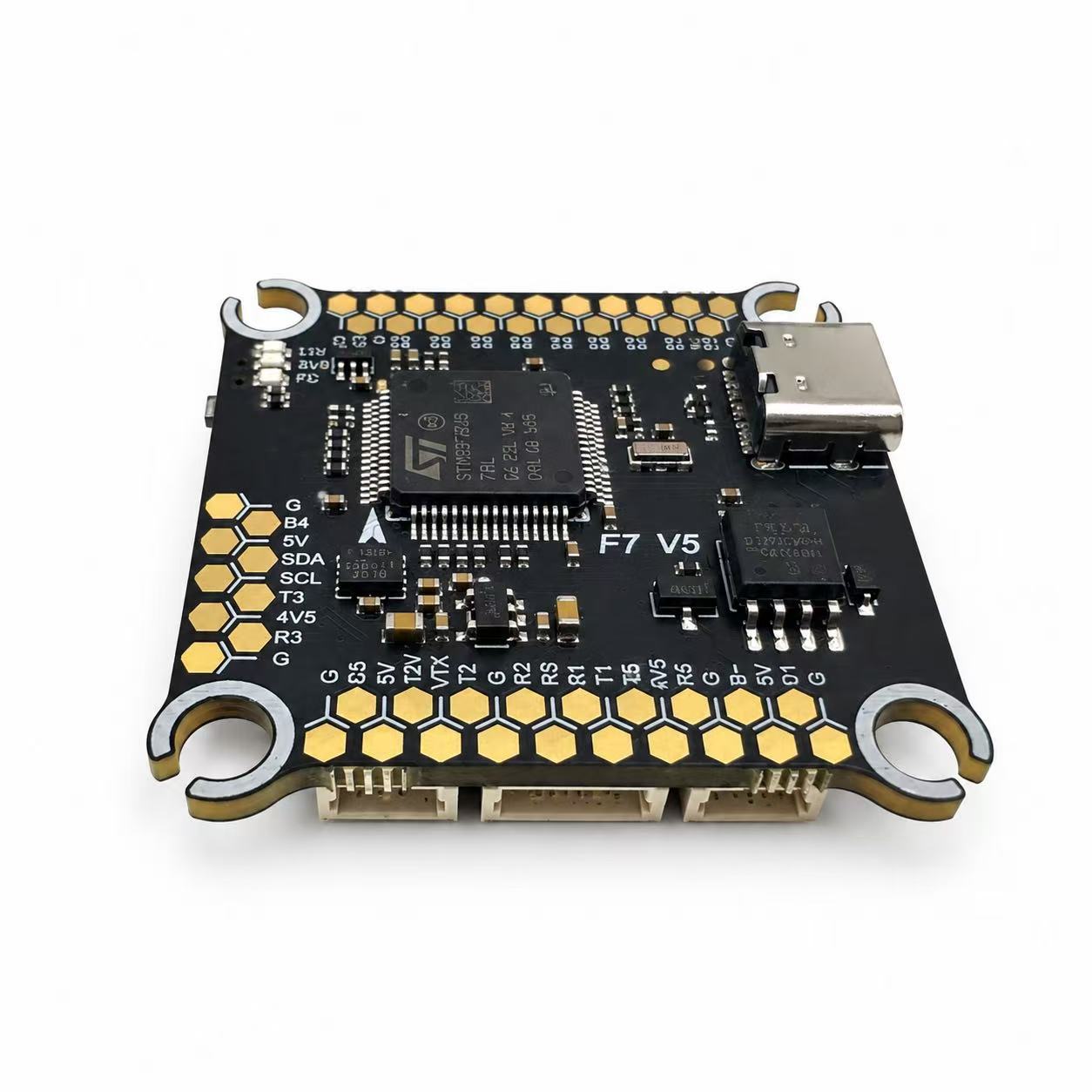

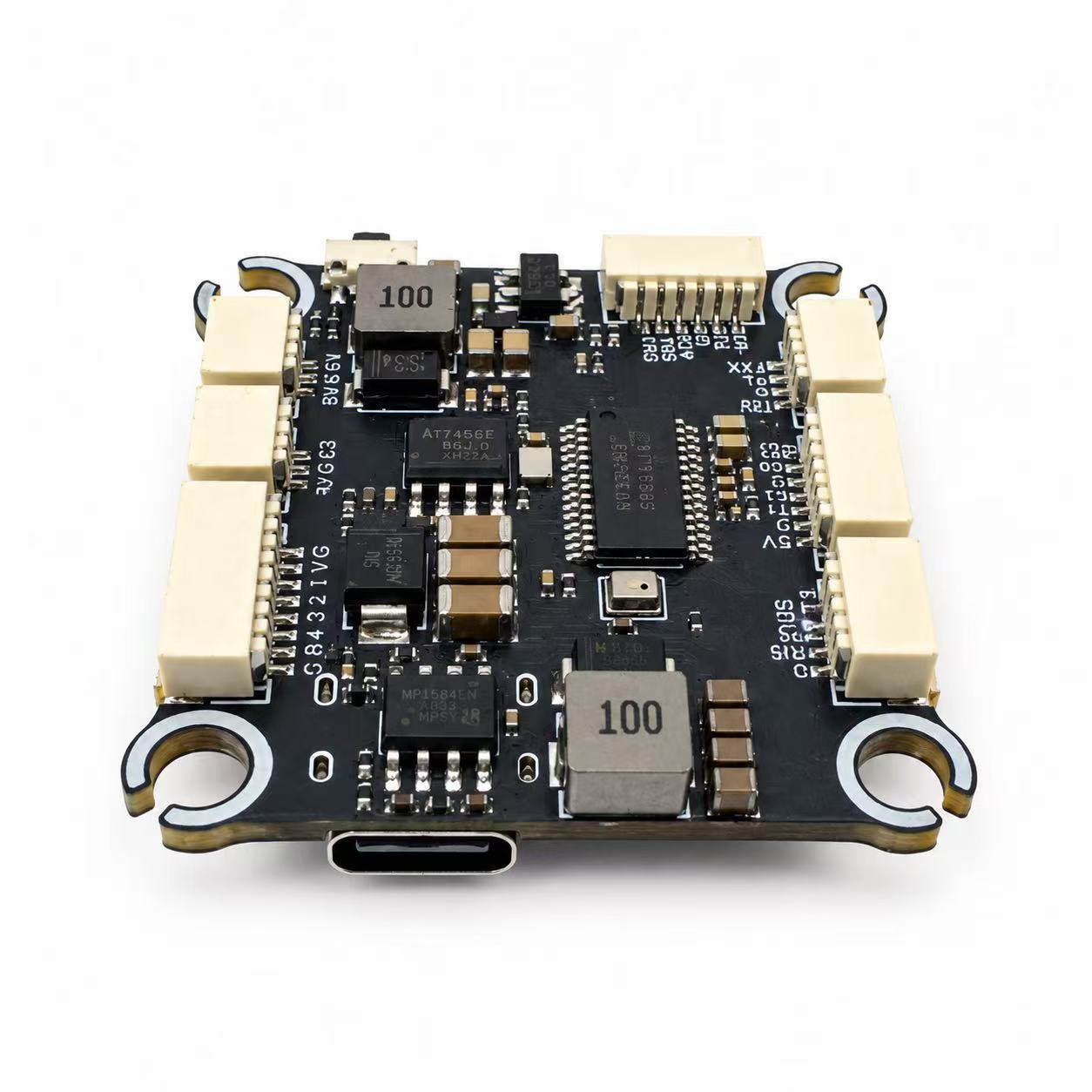

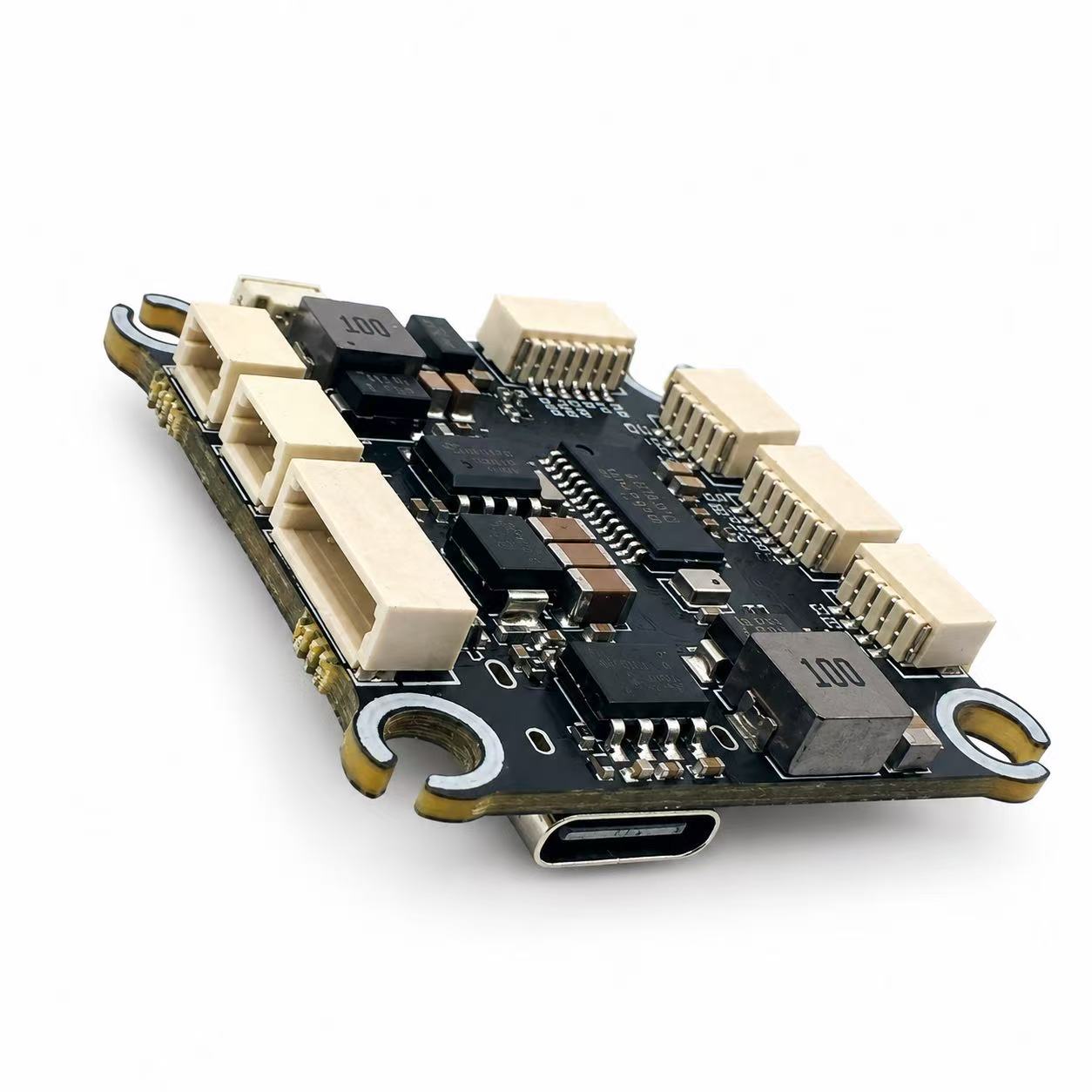

Skyvolt FPV FC 722 V5 12S Flight Controller for FPV Drone
| Mounting Holes | 30.5 × 30.5mm / M3 |
|---|---|
| Operating Voltage | DC 7-36V (2-8S) |
| BEC1 | 5V/2.5A |
| BEC2 | 12V/2.5A |
| UART Ports | 5 |
| Motor Output Channels | 8 |
| Blackbox | 16M |
| MCU | STM32 F722 |
| Processor Frequency | 216MHz |
| Gyroscope | 42688 |
| OSD Chip (Character Overlay Chip) | AT7456E |
| Supported Receiver Protocols | CRSF / SBUS / IBUS / DSM Buzzer Pad: Supported |
| Current Sensor Telemetry Pad | Supported |
| DJI O3 / O4 Air Unit Interface | Supported |
| Surge Protection | Supported |
| Flight Controller Firmware | Betaflight |
Request Quote
Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details
Features- STM32 F722 Main Controller, 216MHz High-speed Processo
- 42688 Gyro + AT7456E OSD Chip
- Wide Voltage Input 2-8S (DC 7-36V)
- Dual Independent BEC: 5V/2.5A & 12V/2.5A
- Supports DJI O3 / O4 Air Unit Directly
- 8 Motor Outputs & 5 UART Ports
- 16M Blackbox Onboard
- Multiple RX Protocol Support: CRSF / SBUS / IBUS / DSM
- Built-in Surge Protection
- Standard 30.5×30.5mm M3 Mount Hole
- Betaflight Firmware Ready
