F722 V2 FPV FC
FPV FC 722 V2 Flight Controller for FPV Drone 2S-6S Lipo Dual Gyroscope
| External dimensions | 30*30mm |
|---|---|
| Installation hole distance | 20mm-20mm |
| Motherboard weight | 5.85g |
| Package size | 64*64*35mm |
| Motherboard weight | 5.85g |
| Package weight | 33g |
| Barometer | YES |
| BEC | 5V/2.5A 10V/2A |
| Uart | 6 |
| LED | Integrated 1 adjustable RGB light |
| firmware | HAKRCF722V2 |
| Protocol | PWM, Oneshot125 Oneshot42,Multishot, Dshot300 Dshot600 |
Request Quote
Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details

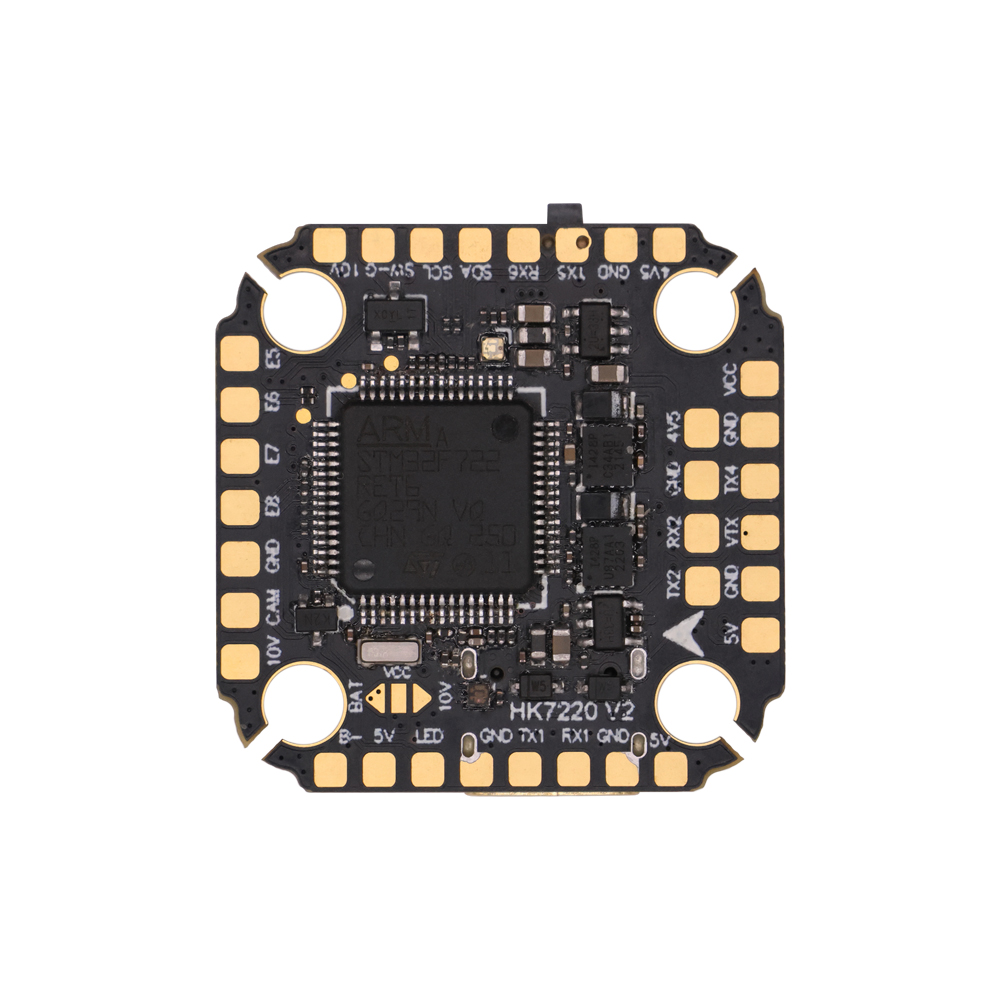

FPV FC 722 V2 Flight Controller for FPV DroneThe F722 V2 flight controller features a dual gyroscope design, built-in barometer for altitude hold, lightweight 5.85g 30*30mm PCB with 20*20mm mounting holes. It is equipped with dual BEC power supply, 6 UART ports and integrated adjustable RGB LED. Pre-flashed with HAKRCF722V2 firmware, it supports multiple ESC protocols and works perfectly for FPV freestyle and cinematic builds.
Key Features
- Dual gyroscope design for stable flight
- Onboard barometer, support altitude hold
- Ultra-light 5.85g, compact 30*30mm board, 20*20mm mounting
- Dual BEC: 5V/2.5A + 10V/2A, power for camera, VTX and receiver

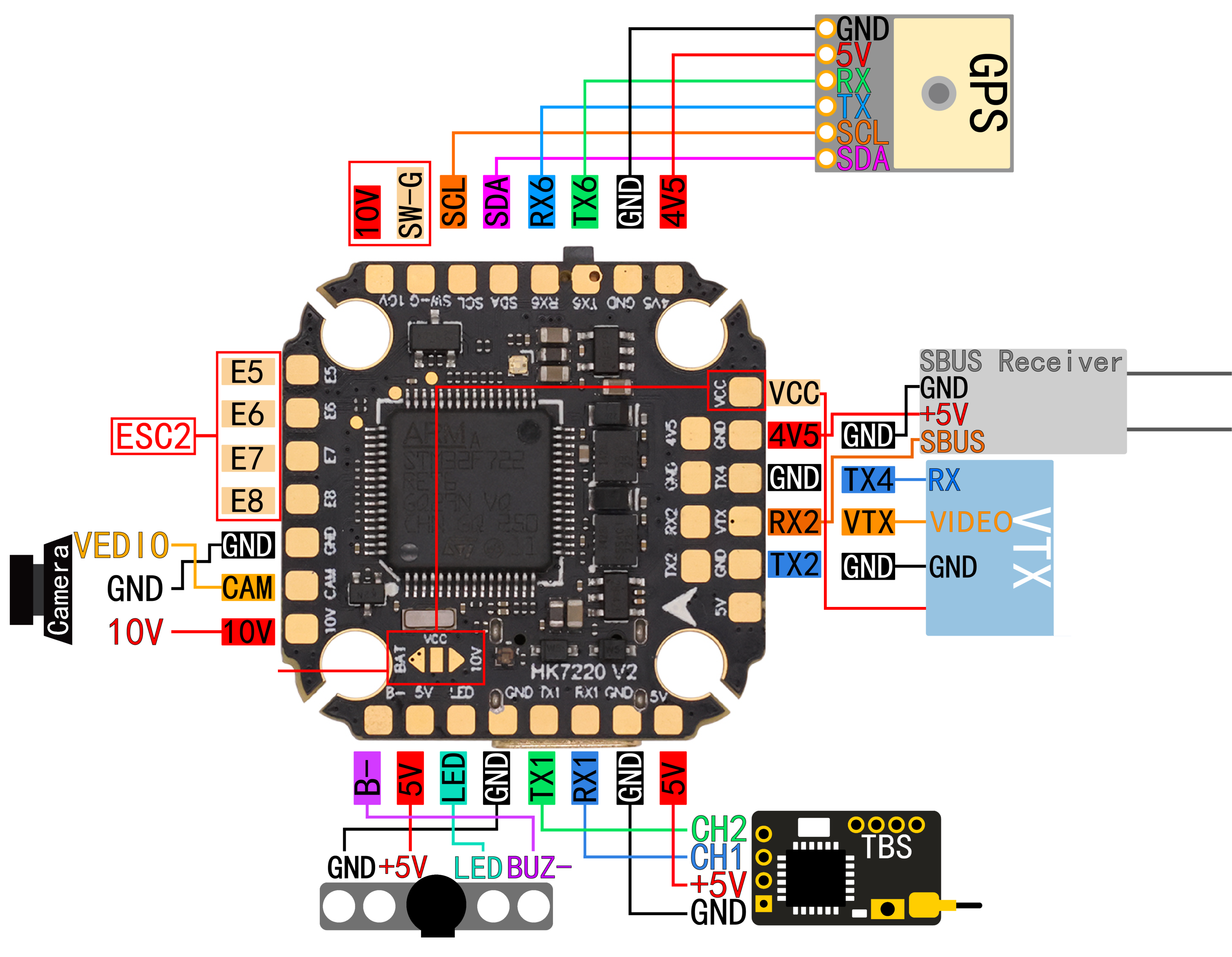

- 6 independent UART ports for GPS, receiver, digital VTX and sensors
- Integrated adjustable RGB flight indicator LED
- Multiple ESC protocol compatibility
- Preloaded HAKRCF722V2 firmware, ready to use

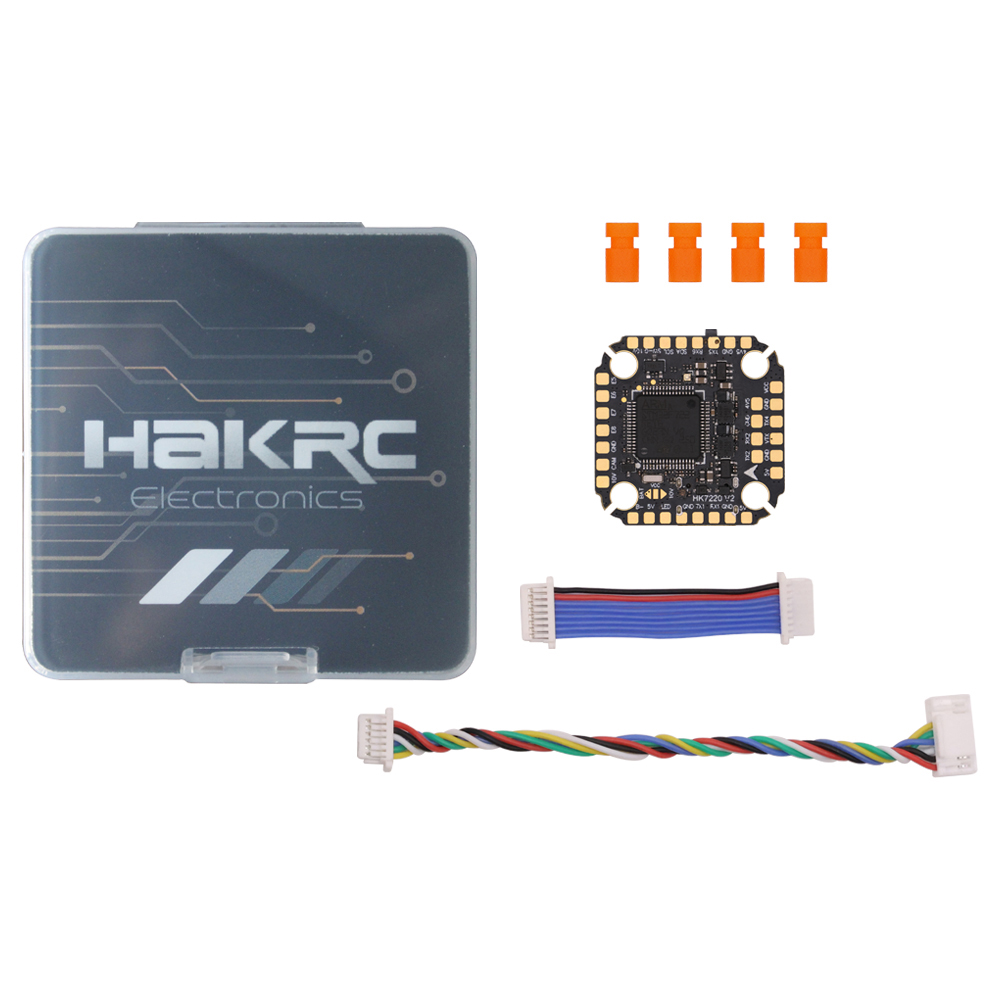

Packing List
- F7220V2 Flight Controller ×1
- M2 Shock absorber ×4
- 8P Cable ×1
- DJI Cable ×1
