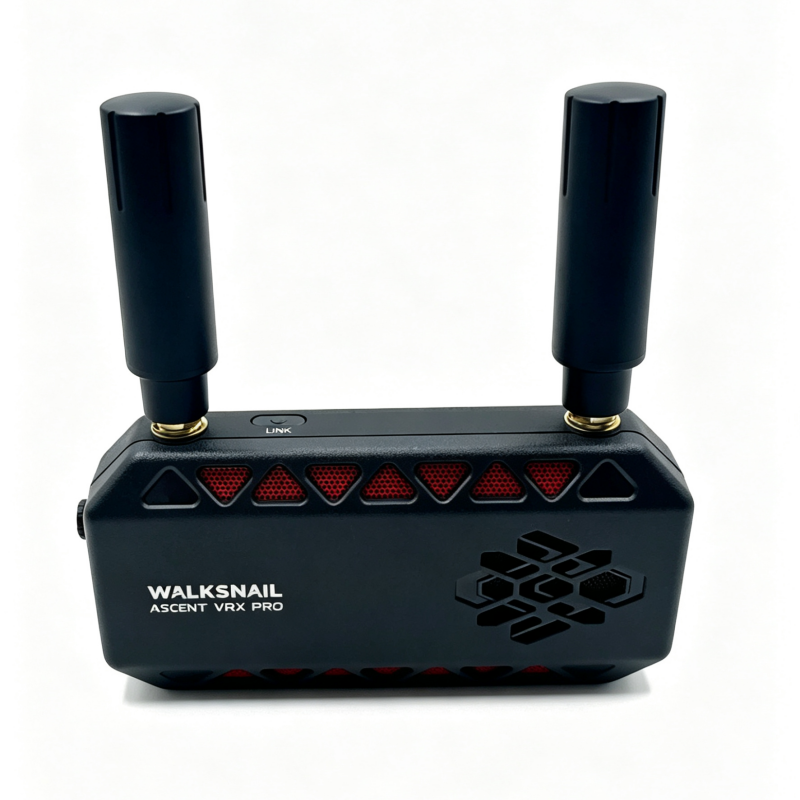

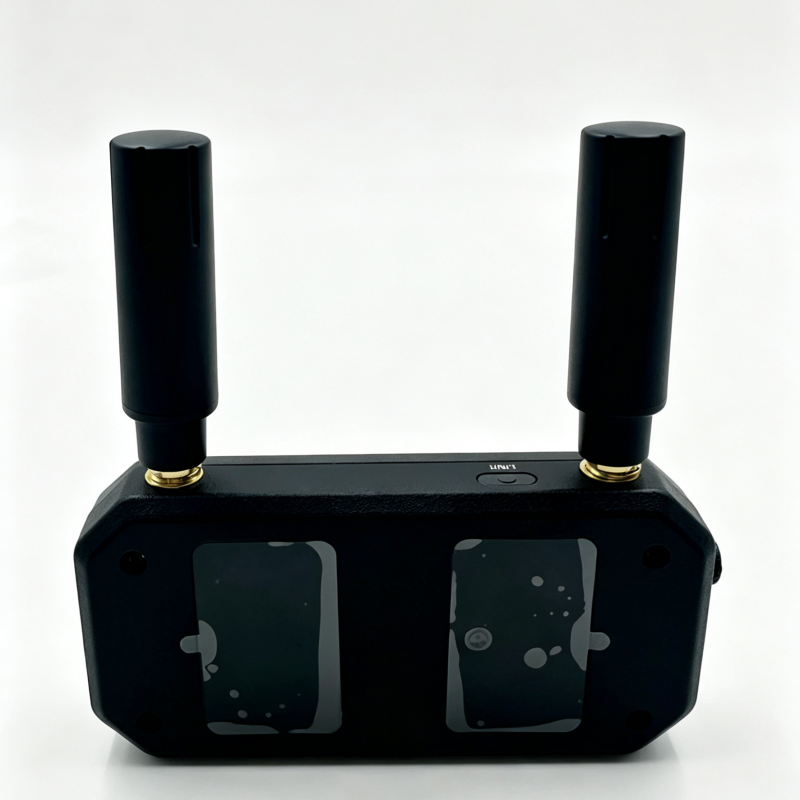

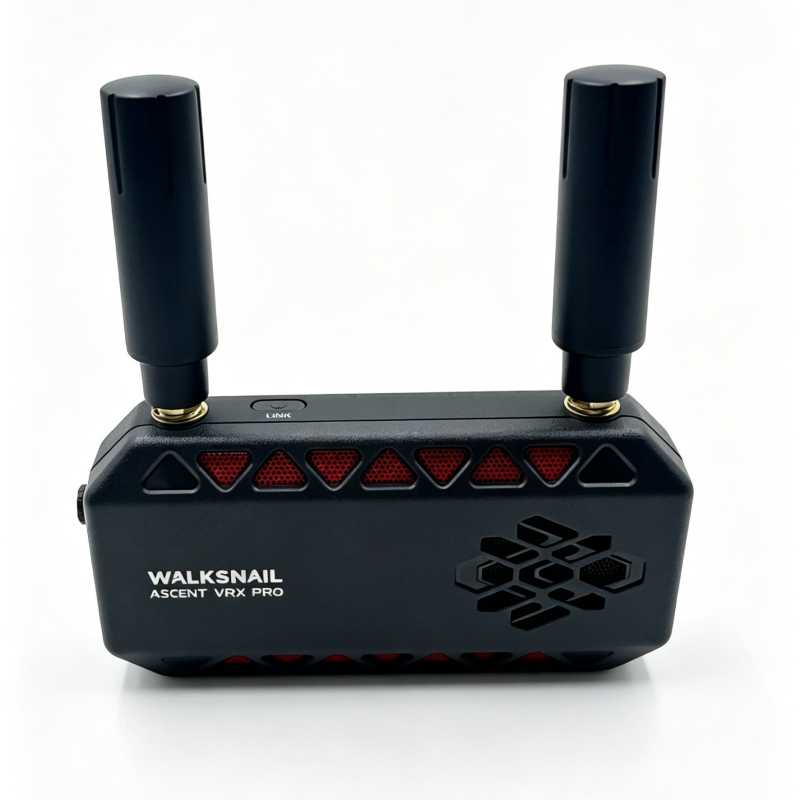

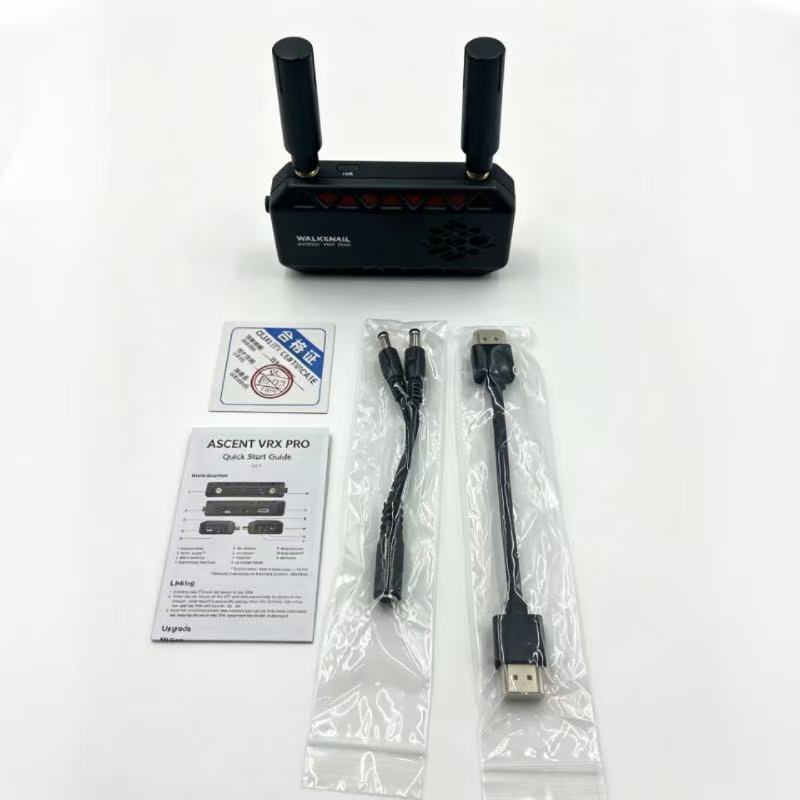

Caddx Walksnail Ascent VRX Pro Receiver with HDMI Input 1080p/120fps Paired with the Ascent Lite+ VTX
| Name | Ascent VRX Pro |
|---|---|
| Model | WN02-FP028 |
| Communication Frequency | 5.725-5.829 GHz |
| Transmitter Power(EIRP) | FCC/SRRC:<30dBm, CE:<14dBm |

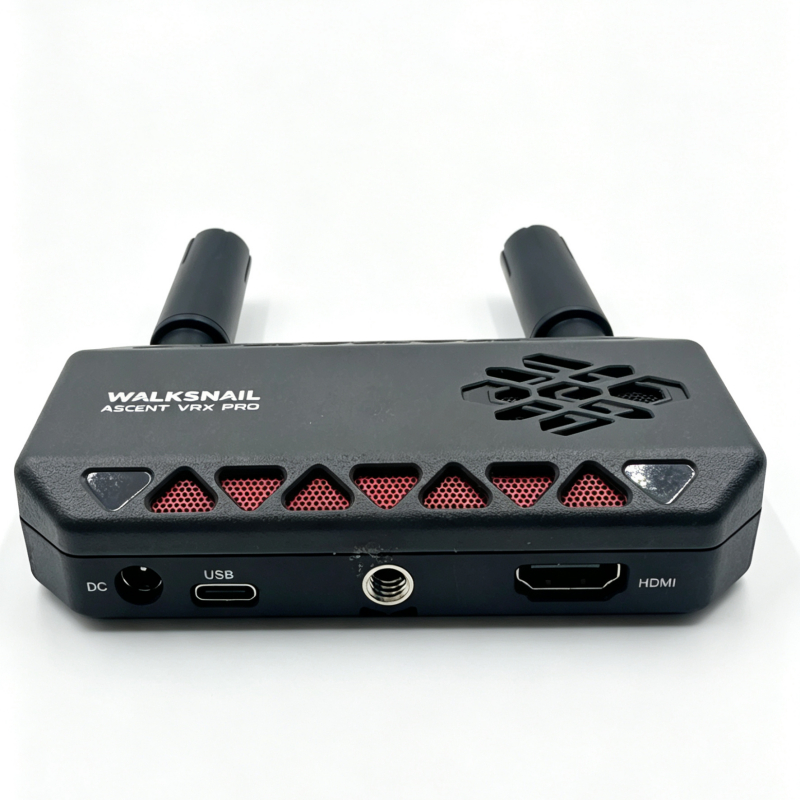

| l/O Interface | HDMl, Micro SD Card, DC5.5*2.1mm SH1.0*6PIN, Type-C |
| HDMI Out | 1080p50fps, 1080p60fps, 1080p100fps, 1080p120fps, 720p50fps, 720p60fps, 720p100fps, 720p120fps |
| Power Input | 7.4~25.2V |
| SD Card | Support Micro SD 256G |
| System | Ascent HD system |
| Bandwidth | 5MHz/10MHz/20MHz/Auto |
| Menu OSD recording | Support |
| Recording File System | exFAT |
| Recording Format | MP4 (H.264) |
| Weight | 140g |
| Dimension | 114.5*64*24mm (Without Antenna) |
| Antenna Name | Red Bird Pro |
| Antenna Polarization | LHCP |
| Antenna Bandwidth | 5.725-5.829 GHz |
| Antenna Average Gain | 2.8dBi |
| Connector | RP - SMAx2 |
| Dimension | 56.3mm*D16.5mm |
| Weight | 7g |
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details
Dual Antennas, Rock-Solid Connection
Crystal-clear decoding, frame by frame
Supports 1080p/120fps HD decoding with an end-to-end latency as low as 35ms—delivering smooth, stutter-free visuals where every frame is razor-sharp and fully under your control.
Audio recording supported
Paired with the Ascent Lite+ VTX, it supports synchronized audio-video recording at 720P@60/100/120fps and 1080P@60fps for a fully immersive flight experience. Update to firmware 18.21.10, VRX PRO outputs real-time audio over HDMI to monitors with built-in speakers.

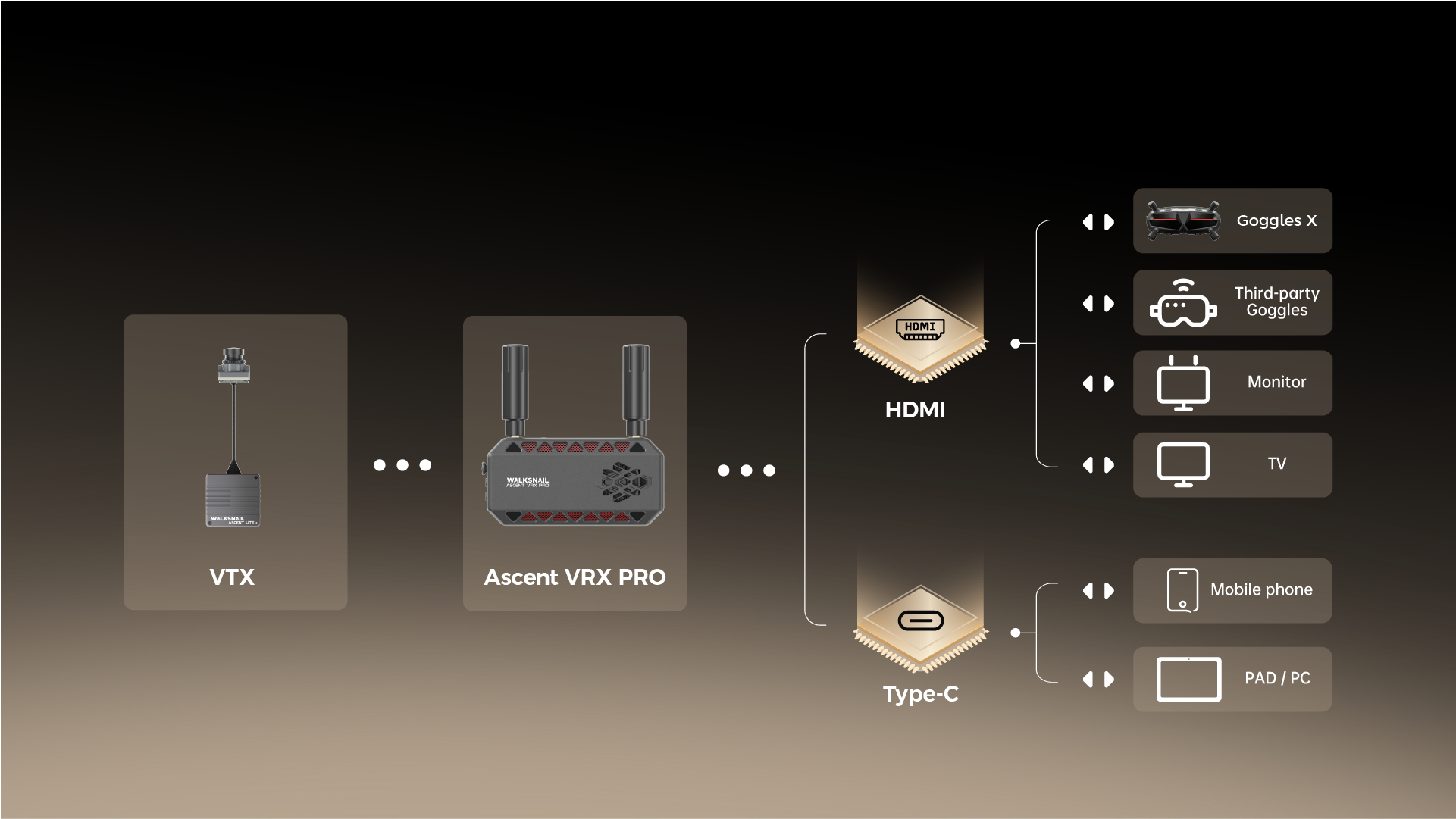

Universal Compatibility. Plug and Play
Compatible with all FPV goggles, monitors and TVs equipped with HDMI IN.
Aside from direct HDMI connection, newly added UVC output supports simultaneous viewing across phones, tablets and PCs.
Full OSD Mastery Your World, Customized
Deep integration meets total freedom. Canvas Mode brings your Betaflight/INAV OSD to life, allowing you to tune parameters via your radio in real-time. It’s not just a receiver; it’s your cockpit.
Built-in Recording.Relive the Rush
Capture the epic without the extra bulk.
A dedicated SD slot supports up to 256GB of HD storage. Skip the external DVR—just hit record and preserve every high-speed chase in stunning detail.
Pocket-Sized Power Ready to Go
Pro-grade performance that fits in your palm. Weighing just 140g with a sleek, ultra-thin profile, the Ascent VRX is the ultimate travel companion for every pilot. Pack light, fly heavy.
Beyond Drones. One Device, Every Adventure
The ultimate FPV powerhouse for Drones, Fixed-wings, and RC cars. Whether you’re racing for the podium,
filming a cinematic masterpiece, or teaching the next generation, the Ascent VRX dominates every scene.
