FN FPV VTX

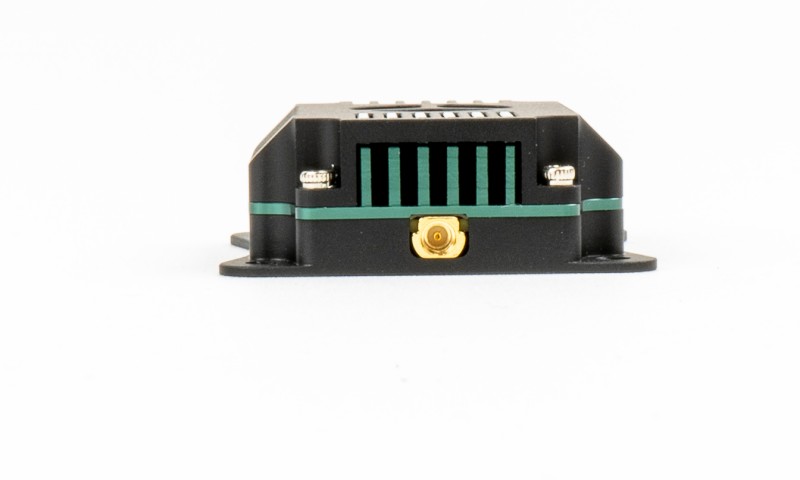

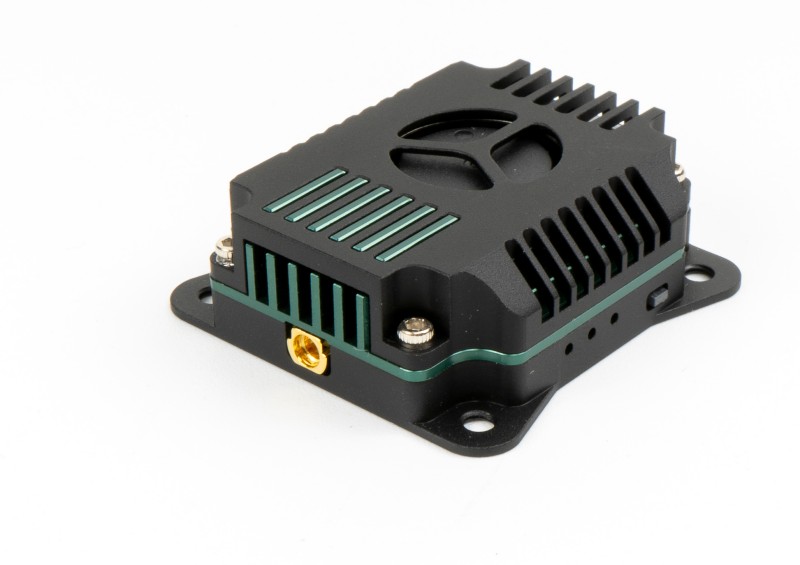

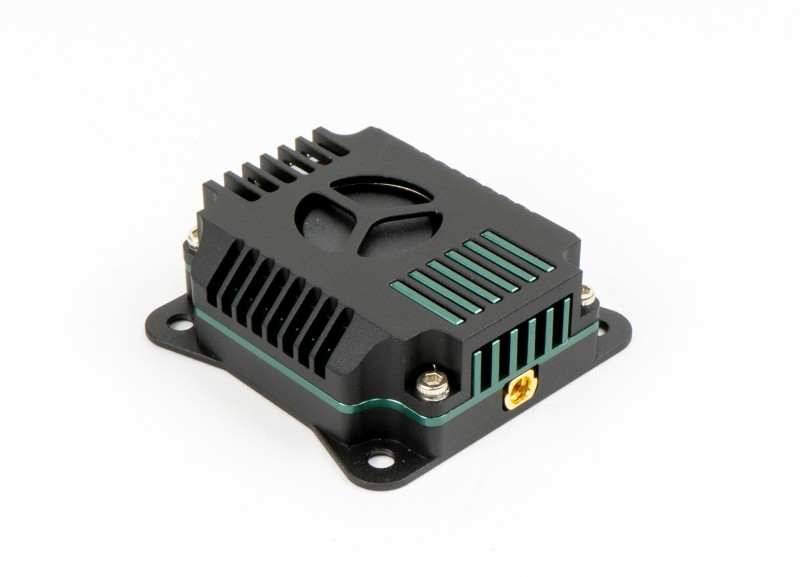

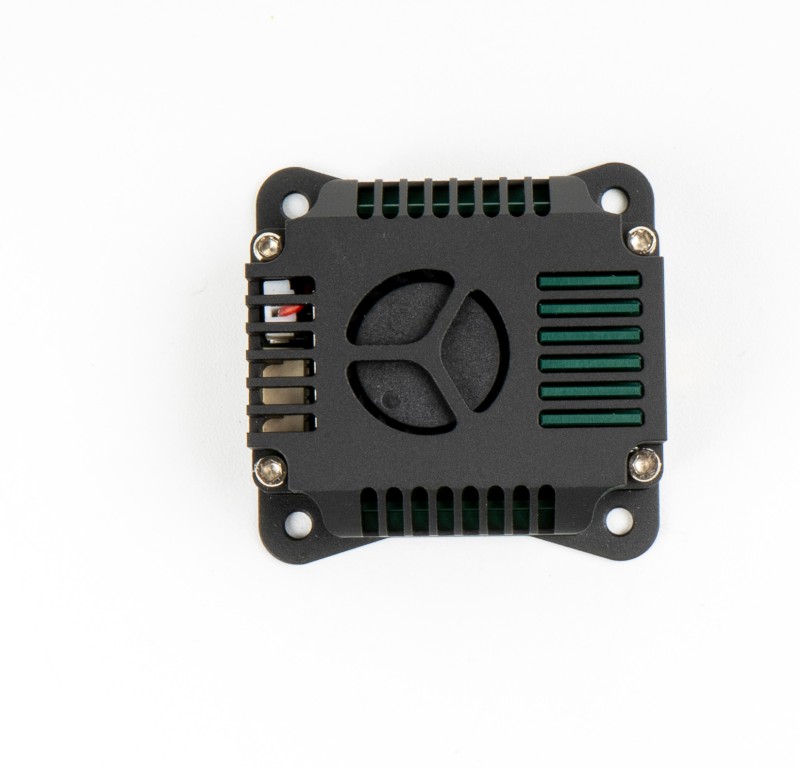

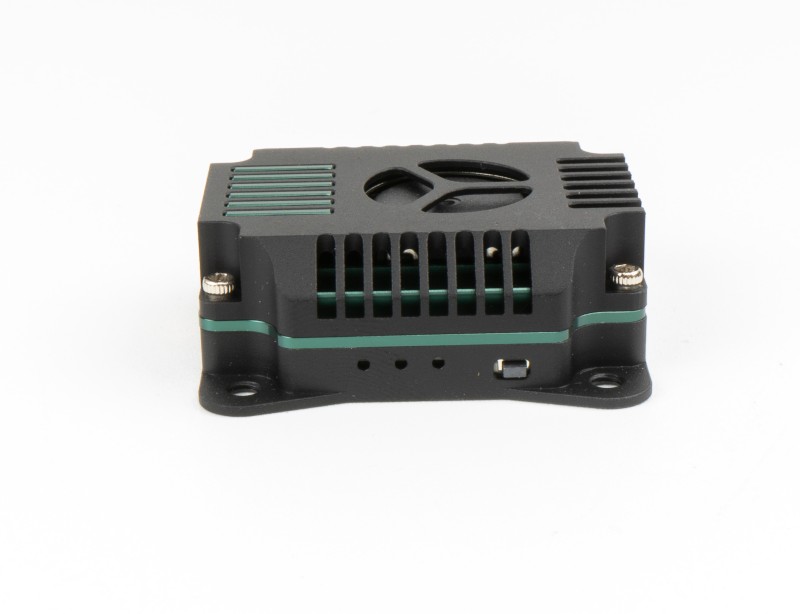

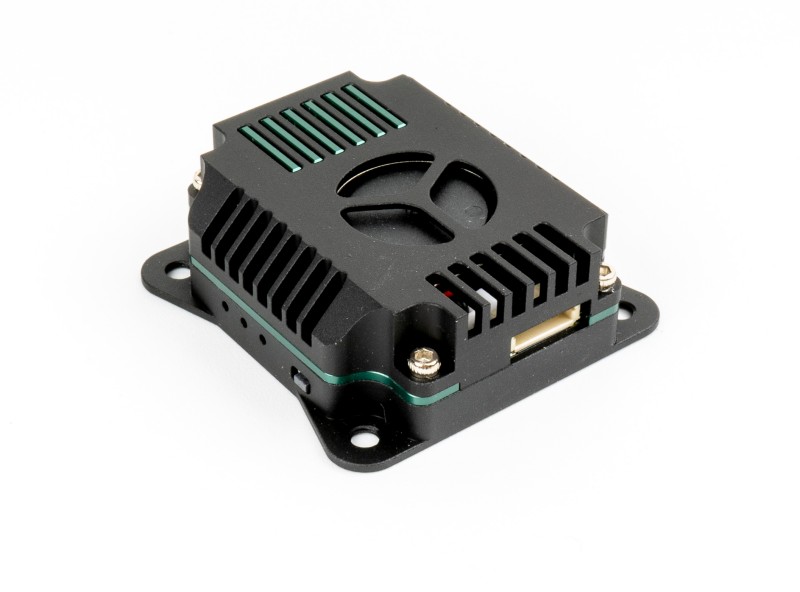

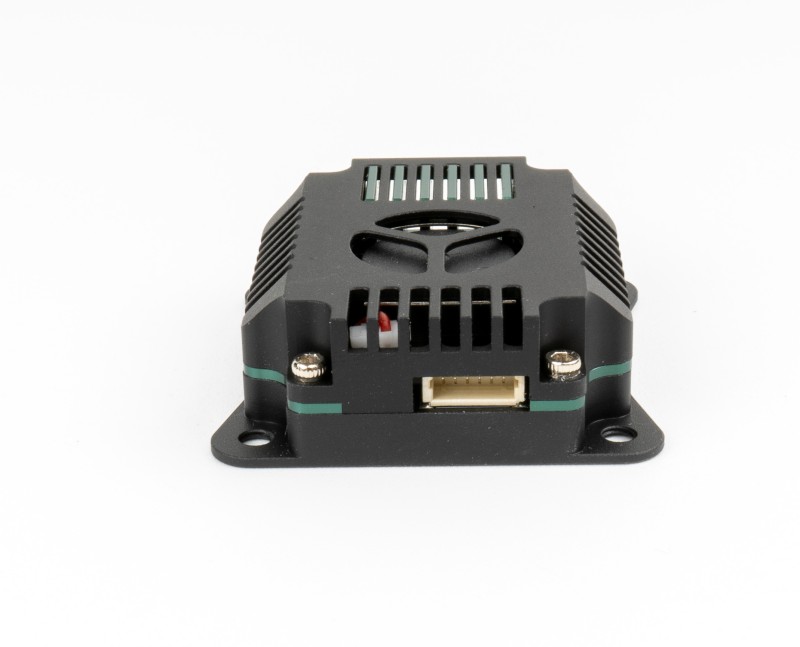

3W 5.8G Analog VTX-FN | 88CH IRC Tramp FPV Video Transmitter
| Product Model | 3W-5.8G VTX-FN |
|---|---|
| Operating Voltage | 7–36V |

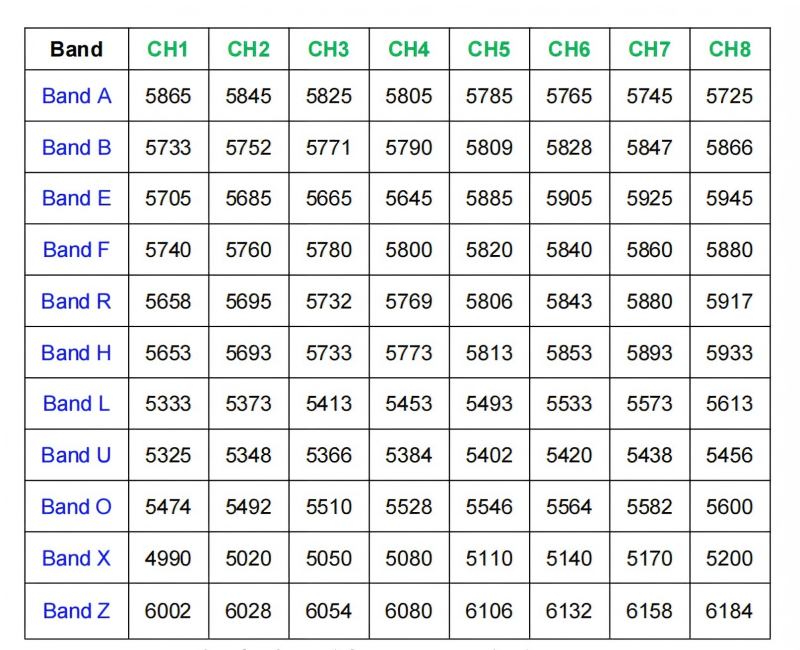

| Channels | 88CH |
| Frequency Range | 4900~6100MHz |
| Power Levels | 25mW, 500mW, 1W, 2W, 3W |
| Control Protocol | IRC Tramp, OSD parameter adjustment supported |
| Modulation Type | FM Frequency Modulation |
| Channel Bandwidth | 2MHz |

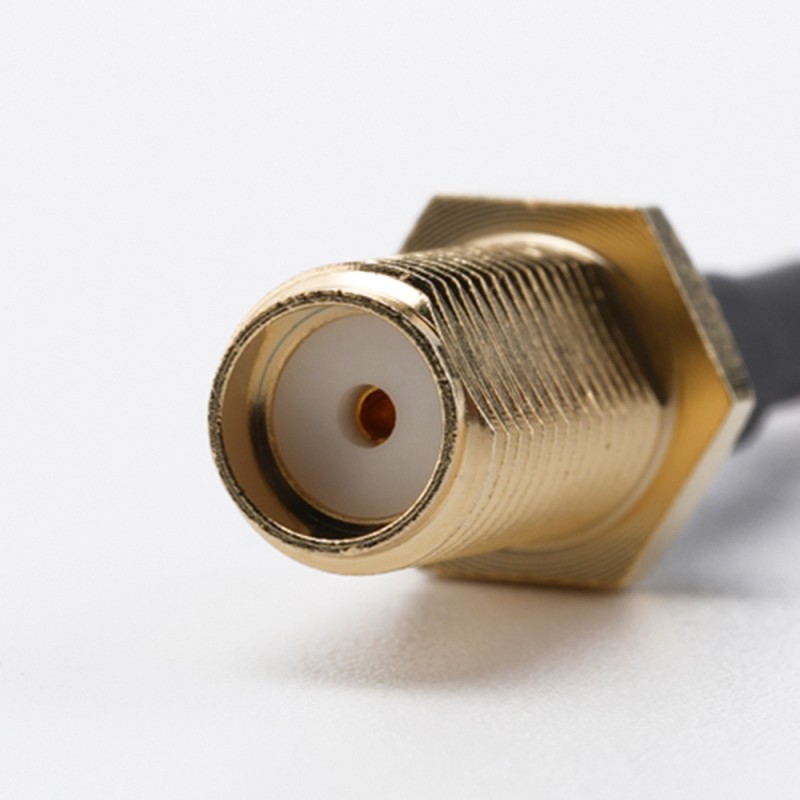

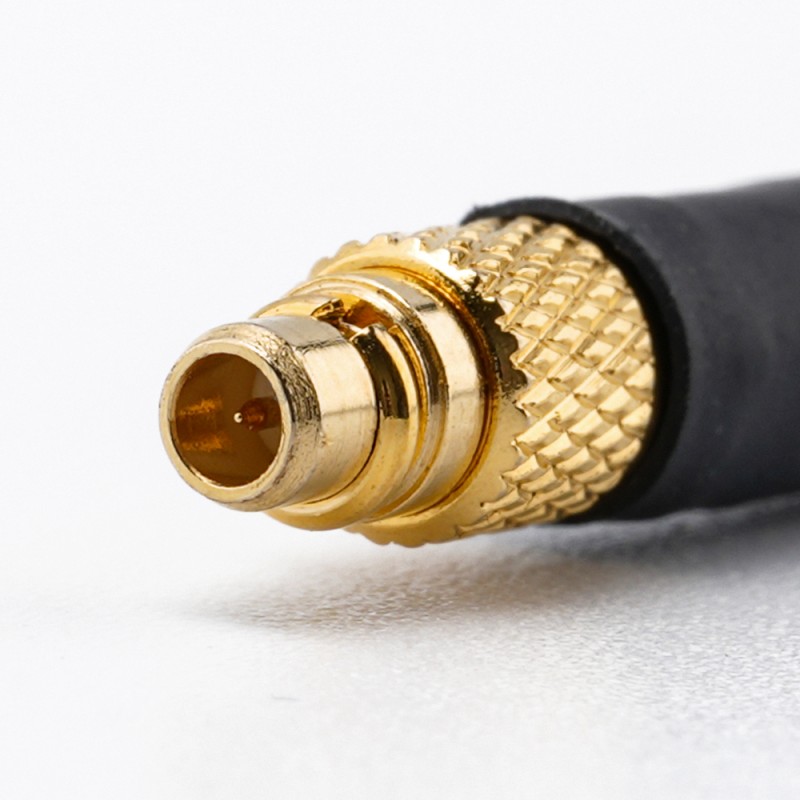

| Antenna Connector | MMCX |
| Video Standard | NTSC/PAL |
| Output Power | 35dBm±1dBm (MAX) |
| Dimensions | 38mm×38mm×13mm |
| Weight | 23g (Antenna not included) |
Request Quote
Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details

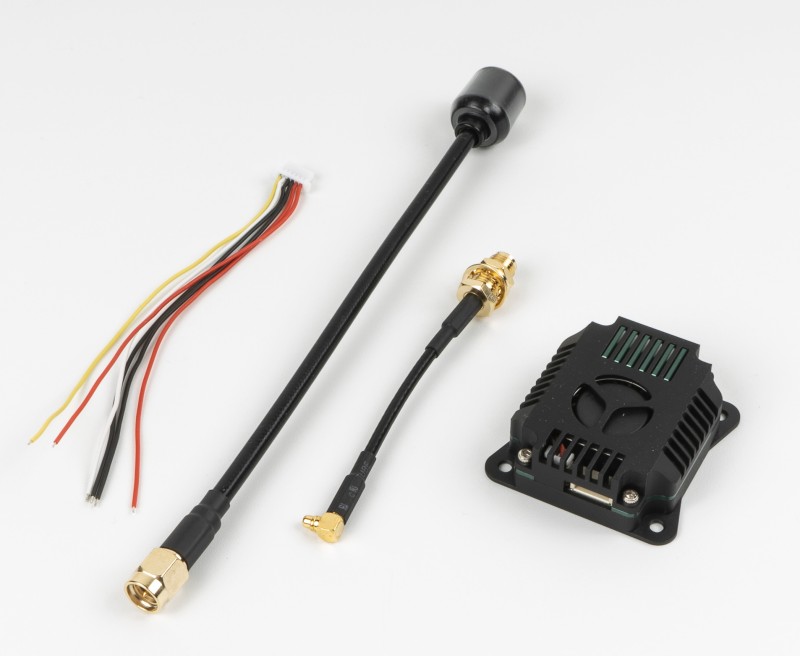

Skyvolt 3W 5.8G Analog VTX-FNThe Skyvolt 3W 5.8G VTX-FN is a high-power analog video transmitter built for long-range FPV flight. It features 5 selectable power output options from 25mW up to 3W (35dBm max). Support IRC Tramp protocol, you can adjust channel and transmit power directly via OSD on your FPV goggles. With wide 7–36V voltage input, compatible with 2S–8S LiPo batteries. Integrated heat dissipation design keeps stable performance under maximum power.
