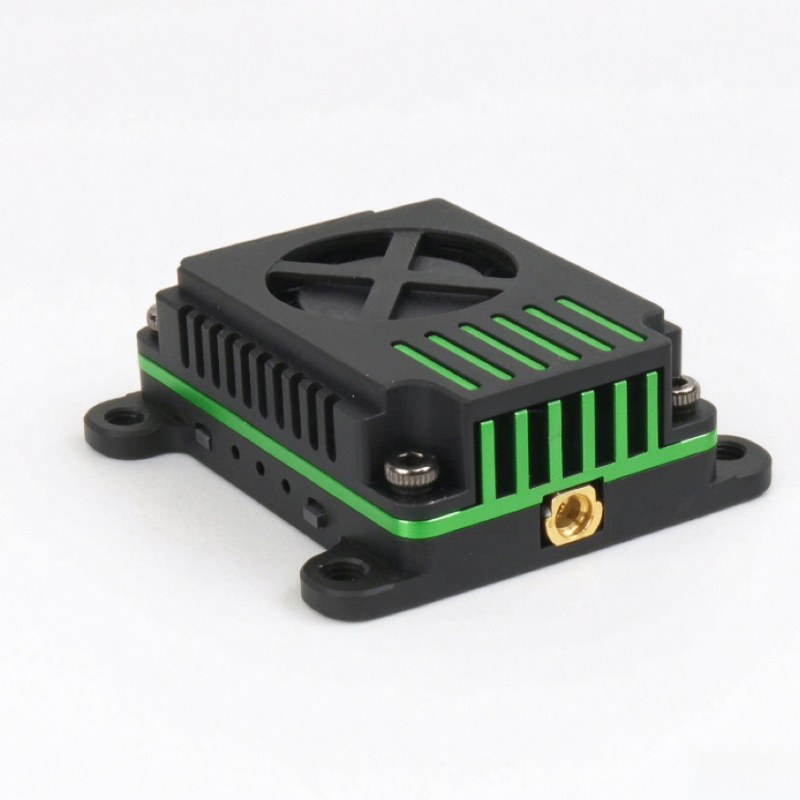

2.5W 5.8G VTX-FS Analog FM Video Transmitter 88CH IRC Tramp
| Product Model | 2.5W-5.8G VTX-FS |
|---|---|
| Operating Voltage | 7–36V |
| Frequency Range | 4900~6100MHz |
| Channels | 88CH |
| Power Levels | 25mW, 250mW, 1W, 2.5W |
| Modulation Type | FM Frequency Modulation |
| Channel Bandwidth | 2MHz |
| Antenna Connecto | MMCX |
| Video Standard | NTSC/PAL |
| Output Power | 34dBm±1dBm (MAX) |

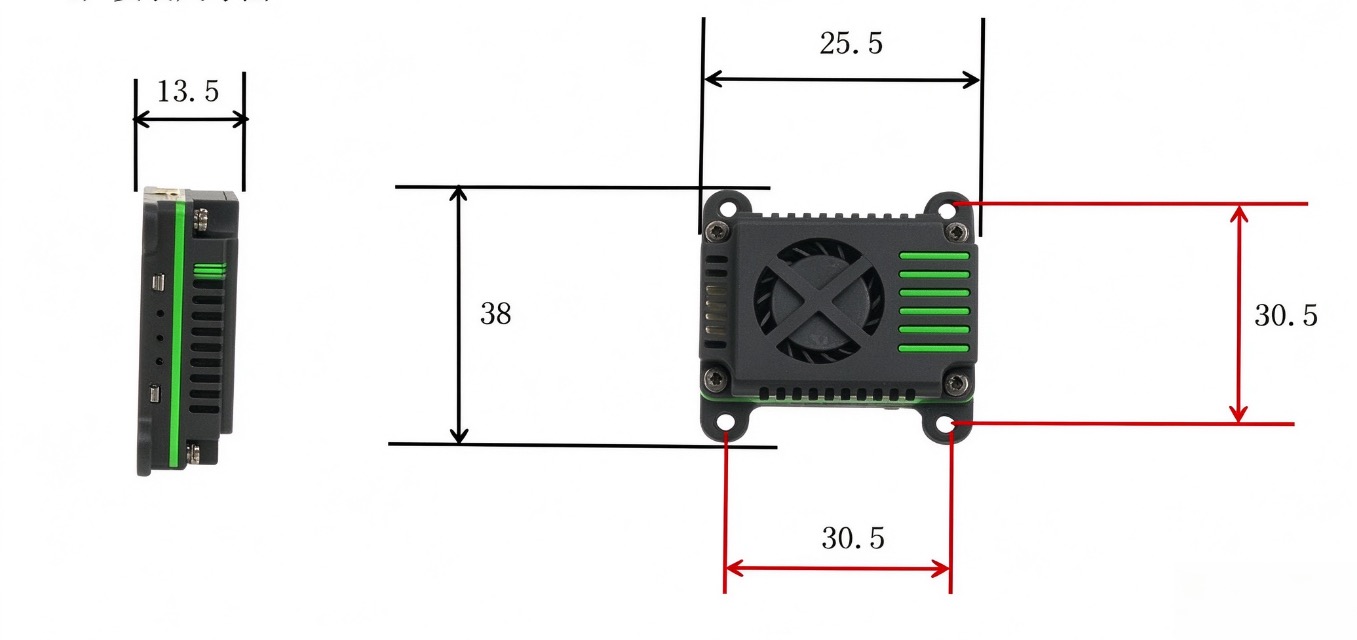

| Dimensions | 38mm×36mm×13.5mm |
| Weight | 17.5g (Antenna not included) |
Request Quote
Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details
- 4 Adjustable Power Levels: 25mW / 250mW / 1W / 2.5W, max output power 34dBm±1dBm. Switch low power for short range & high power for long-distance FPV missions.
- Wide Voltage Input 7–36V DC: Works with 2S~8S LiPo batteries, compatible with FPV drones, fixed-wing aircraft, RC boats and vehicles.
- 88 Channels, 4900~6100MHz Frequency Band: Abundant channel options to avoid radio interference, flexible channel selection for complex flight environments.
- IRC Tramp Protocol & OSD Parameter Adjustment: Remotely change channel and power directly via flight controller OSD, no need to press physical buttons on the VTX.
- FM Analog Modulation, 2MHz Channel Bandwidth: Low latency analog video transmission, support NTSC / PAL dual video standards, compatible with all analog FPV cameras & analog VRX receivers.
- MMCX Antenna Connector: Standard MMCX interface, easy to swap different 5.8G antennas for better signal performance.
- Built-in Cooling Fan & Compact Lightweight Body: Size 38mm×36mm×13.5mm, only 17.5g (antenna excluded). Integrated cooling fan ensures stable operation under high power.
