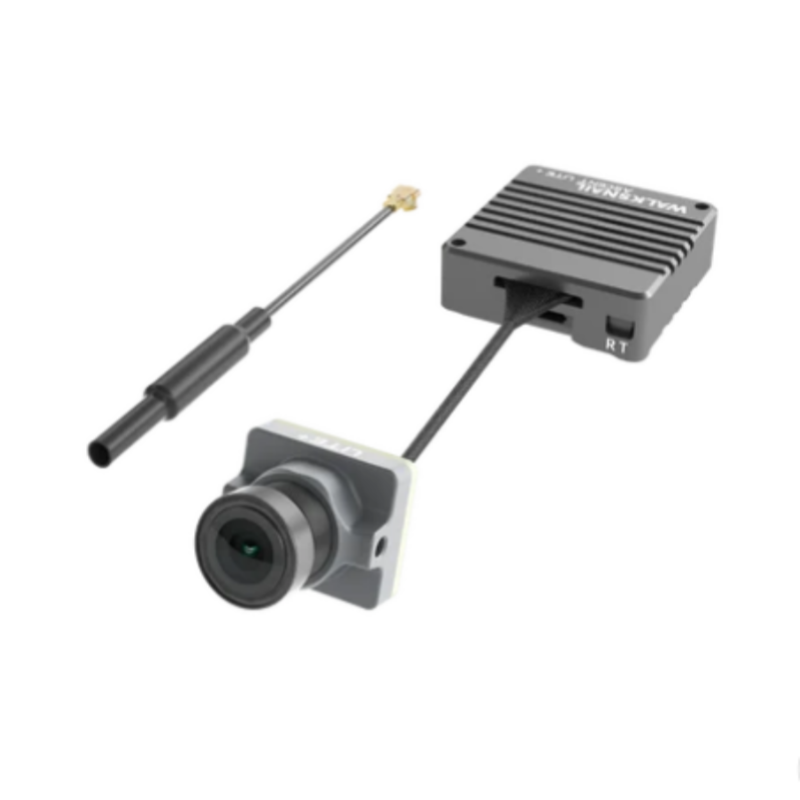

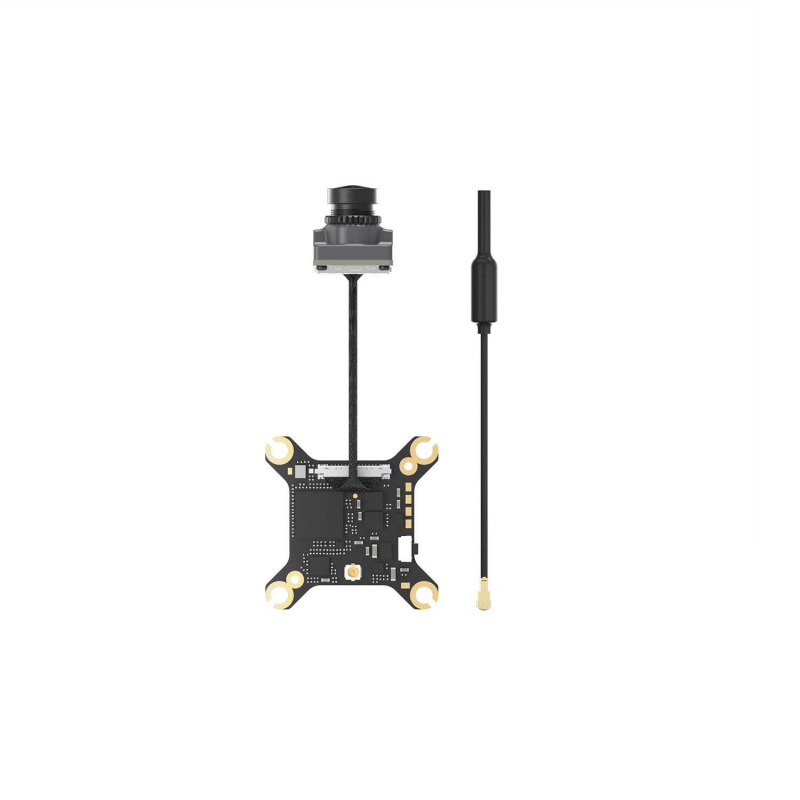

CADDX Walksnail Ascent HD Lite+ Kit: 1080p/120fps 5.8GHz Digital FPV VTX
| Name | Ascent Lite+ VTX |
|---|---|
| Communication Frequency | 5.730-5.815 GHz |
| Transmit Power (EIRP) | FCC/SRRC:≤27dBm; CE:＜14dBm |
| Channels | 3 |
| Wide Voltage Input | 3V~12.6V |
| Supported FC Systems | Betaflight; Inav; Fettec; Kiss; ArduPilot |
| Bitrate | MAX 25mbps |
| OSD | Canvas mode |
| MIC Recording | Support |
| End-to-End Latency | Average latency 35ms |
| Antenna | 1 (Ipex-1) |
| Operating Bandwidth | 5M/ 10M/ 20M/ Auto |
| Image Sensor | 1/2.8 inch |
| Resolution | 1080P/ 120fps, 1080P/ 100fps, 1080P/ 60fps, 720P/ 120fps, 720P/ 100fps, 720P/ 60fps |
| Ratio | 16/ 9 |
| MIC | Built-in Mic |
| Mounting Hole | 20*20mm(M2) |
| Weight | 10.5g |
| Dimensions | Camera: 12*14*15.8mm; VTX: 23.5*23.5*8mm |
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details
Powerful. Secure. Smart.
Built-In Audio Transmission
The built-in microphone captures motor, propeller, and ambient sounds and transmits them in real time for a more immersive FPV experience. Compatible receiving devices can record audio and video in sync, reducing the need for post-dubbing.
Up to 8km of HD Video Transmission
Under ideal conditions, Ascent Lite+ supports HD video transmission at distances of up to 8km, providing a stable digital FPV link for long-range exploration。
Head Tracking Made Natural

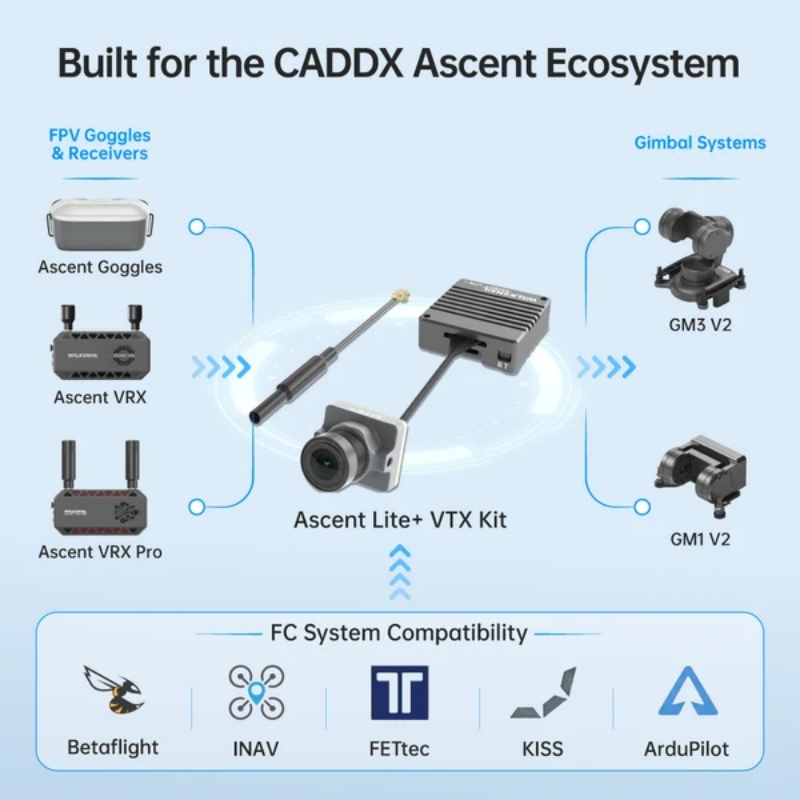

Compatible with GM1 V2 and GM3 V2 gimbals, Ascent Lite+ supports head tracking for natural camera control and a more immersive FPV experience
Lightweight. Simple. Versatile.
Built for More FPV Platforms
A versatile digital FPV system for RC cars, RC boats, FPV drones, and fixed-wing aircraft
