Eclipse 009 CA FPV Camera
ECLIPSE 009CA Thermal Imaging Camera 960x768
| Model | Eclipse 009CA |
|---|---|
| Resolution | 960*768 (Pixelpump) |
| Frame Rate | 50Hz |
| Video Interface | PAL + UVC (simultaneous analog and digital output) |
| Supply Voltage | 4.5V-24V |
| Typical Power Consumption | <2W |
| Focal Length | 9.1mm |
| F.NO | F1.0 |
| FOV | 48.3° (H) *38.6° (V) |
| Adjustment Method | UVC/ ADKEY |
| Luminance / Contrast | 0-100 (optional) |
| Color Palette | 0-4 (optional) |
| Digital Zoom | 1.0-4.0× Stepless Zoom (controllable via UVC) |
| Image Flip | Horizontal / Vertical / Diagonal |
| Operating Temperature | -20°C~50°C |
| Dimensions | 35.2*26.2*46.4mm |
Request Quote
Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details
Eclipse 009 CA is an all-in-one thermal imaging camera with a built-in AI processor for real-time target recognition. Equipped with a high-stability ceramic sensor, it delivers smoother and more delicate imaging performance. Featuring a rugged casing and shock-resistant structure, the camera offers improved durability and reliable operation in extreme environments.Product Introduction
- Pixelpump technology delivers clearer images and enhanced heat-source visibility.
- Supports analog PAL output.
- Supports configuration via menu board.
- Supports UVC video output.

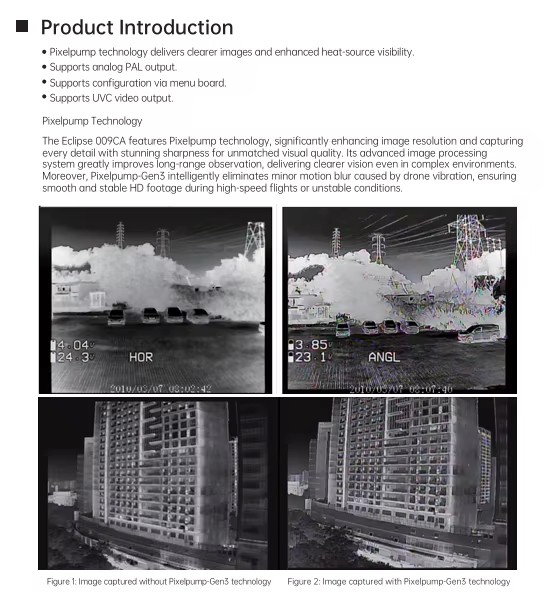

- Pixelpump Technology
The Eclipse 009CA features Pixelpump technology, significantly enhancing image resolution and capturing every detail with stunning sharpness for unmatched visual quality. Its advanced image processing system greatly improves long-range observation, delivering clearer vision even in complex environments. Moreover, Pixelpump-Gen3 intelligently eliminates minor motion blur caused by drone vibration, ensuring smooth and stable HD footage during high-speed flights or unstable conditions.
