A2 FPV Camera

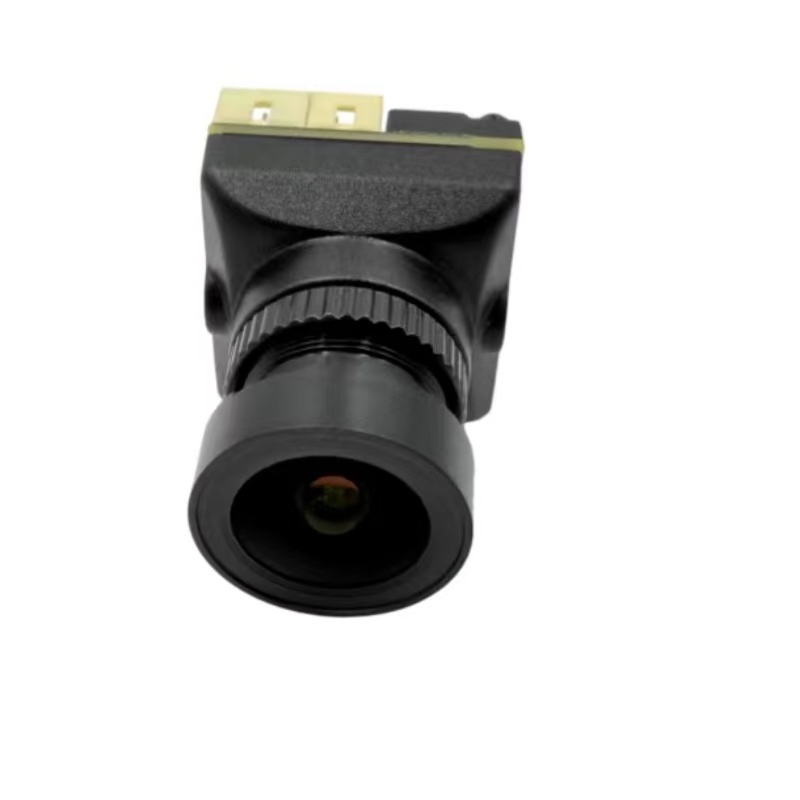

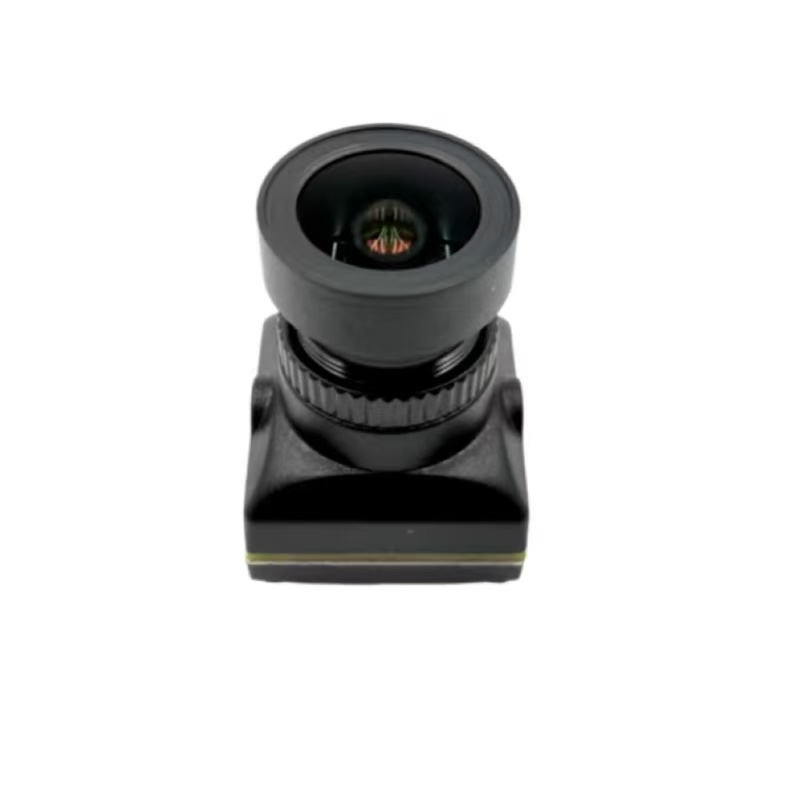

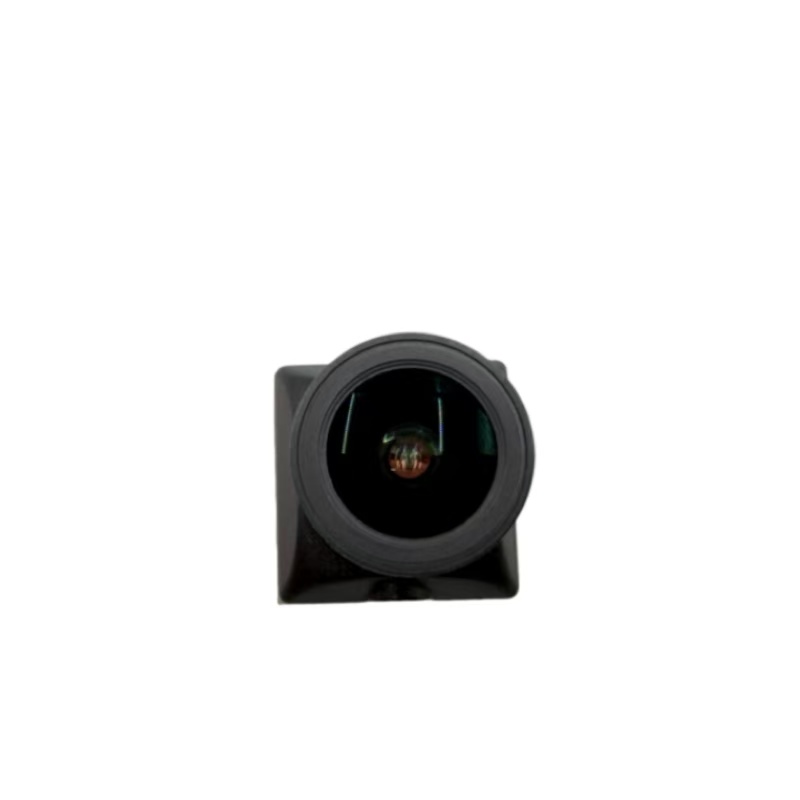

SkyVolt Starlight A2 Colorfull 1500TVL CVBS Analog Camera Module
| Product Model | Skyvolt Starlight A2 Colorfull |
|---|---|
| Resolution | 1500TVL |
| Latency | ≤20ms |
| Image Aspect Ratio | 16:9 by default, switchable to 4:3 |
| Image Color | Color |
| Frame Rate | PAL:25FPS NTSC:30FPS |
| Power Supply Range | 4.5~28V |
Request Quote
Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details
Key Features- Skyvolt Starlight A2 Colorfull, 1/1.8 large sensor, 1500TVL high definition CVBS analog output
- F1.0 large aperture, Super WDR(HDR), clear color imaging at 0.01lux low illumination
- Ultra low latency ≤20ms, real-time video transmission
- D:132° wide field of view, default 16:9 aspect ratio, supports switching to 4:3
- PAL by default, switchable to NTSC; PAL 25FPS / NTSC 30FPS
- Multi-language OSD menu: CN / Traditional CN / EN / RU / PT / ES / IT / FR / PL / JP
- Wide power input 4.5~28V, ultra-low power consumption ≤0.4W
- Stable performance: working temperature -20℃ ~ 65℃, humidity 20%~80%
- Mini module size 19*19*29.5mm, only 10.3g lightweight design
| Item | Parameter |
|---|---|
| WDR | Super WDR (HDR) |
| Minimum Illumination | 0.01lux |
| Focal Length | 3.26mm |
| Aperture | F1.0 |
| FOV | D:132° H:109° V:79° |
| Video Standard | PAL by default, switchable to NTSC |
| Output Interface | CVBS |
| OSD Languages | Chinese / Traditional Chinese / English / Russian / Portuguese / Spanish / Italian / French / Polish / Japanese |
| Power Consumption | ≤0.4W |
| Operating Temperature | -20℃ ~ 65℃ |
| Operating Humidity | 20% ~ 80% |
| Module Dimension | 19*19*29.5mm |
| Weight | 10.3g |
| Sensor Size | 1/1.8 |
| Image Color | Color |
| Power Supply Range | 4.5~28V |
| Resolution | 1500TVL |
