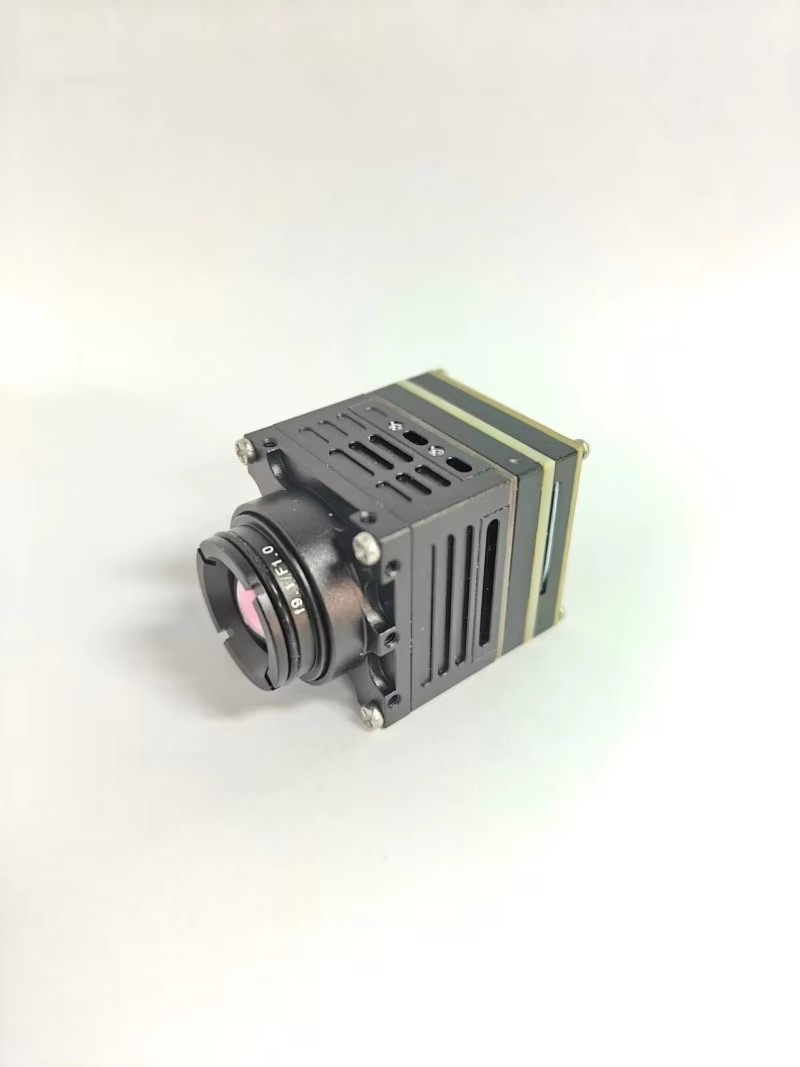

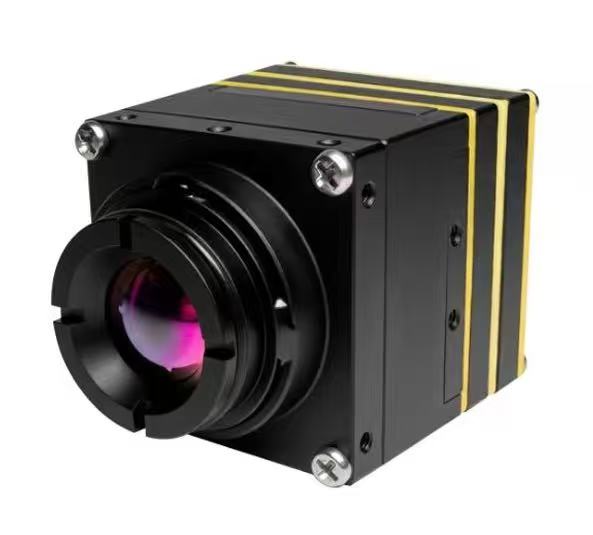

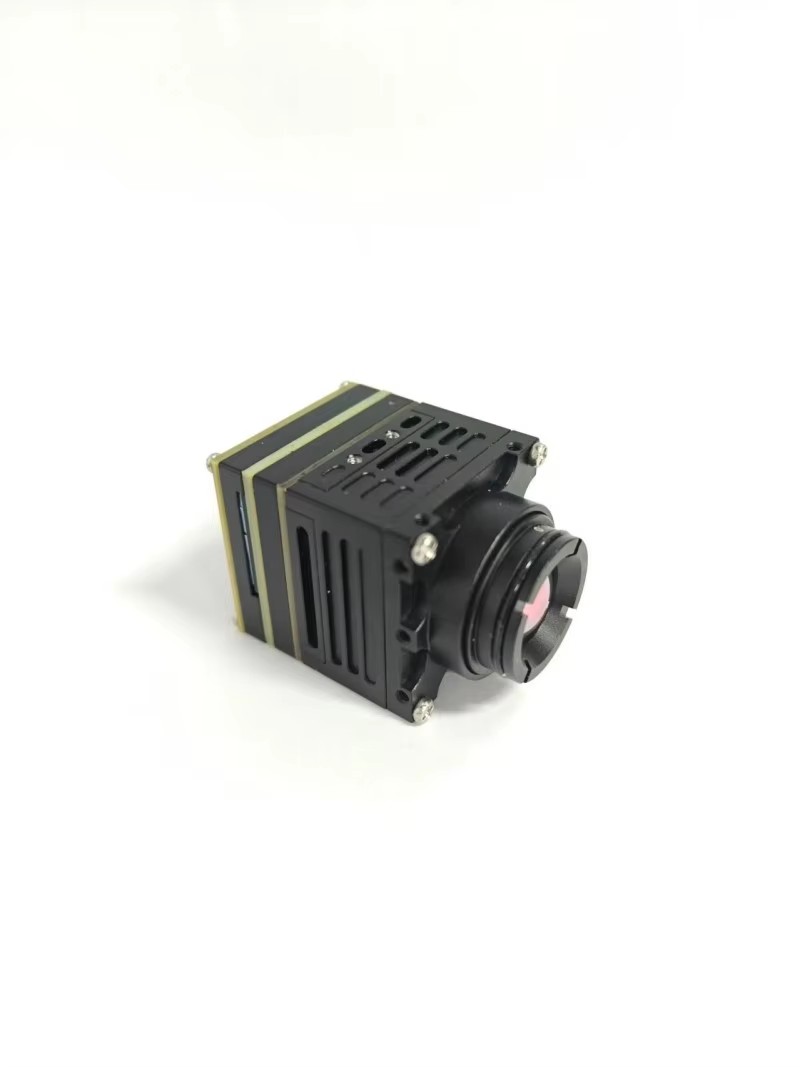

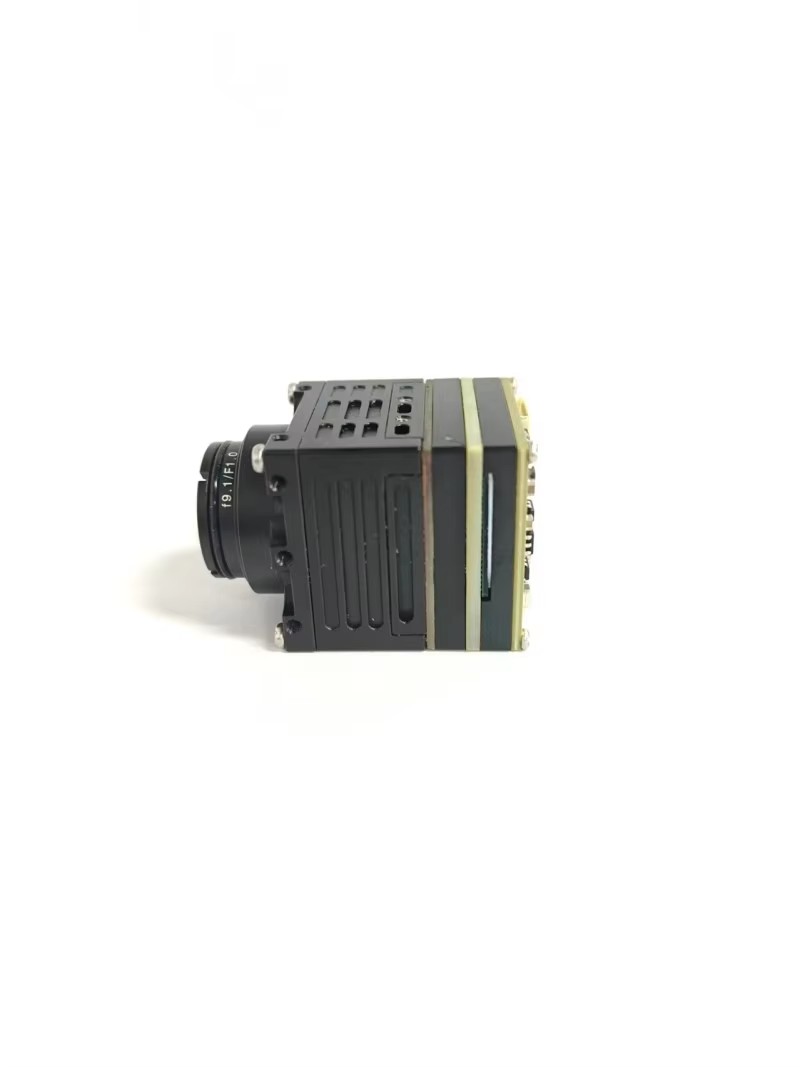

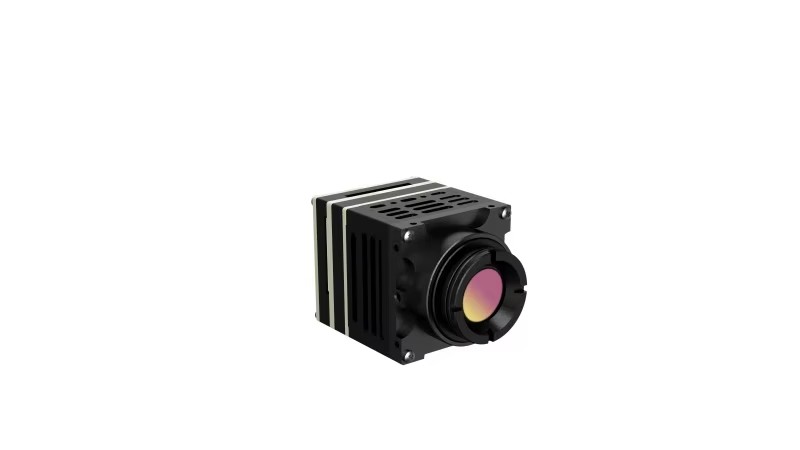

640*512 USB UVC/CVBS Thermal Dome Camera Module with CMOS Sensor 640 Night Vision for FPV Drone Infrared Thermal Imaging

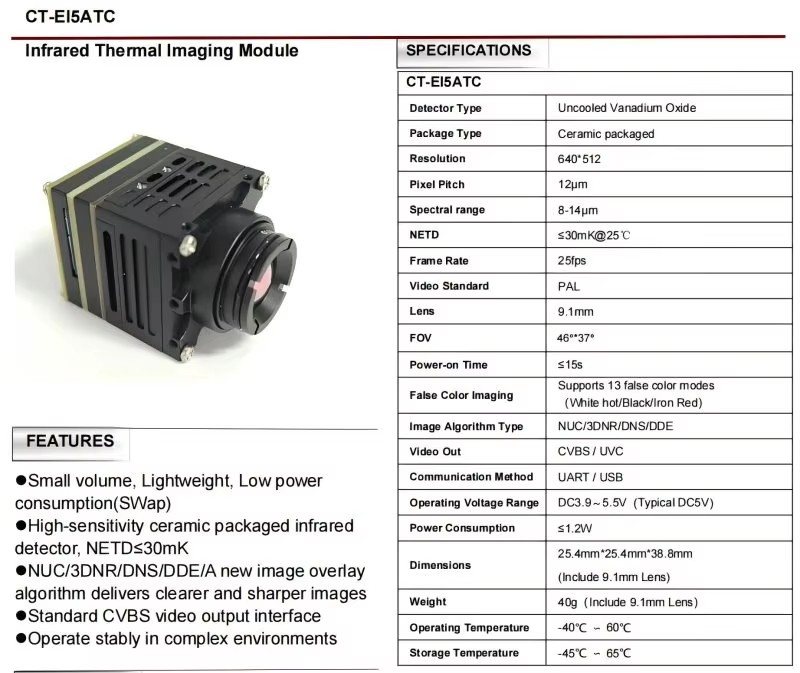

Product Details

• High Resolution：640×512 resolution produces sharp thermal imagery to support precise target detection.

• Ultra High Sensitivity：NETD ≤30mK, offering outstanding temperature sensitivity and capturing tiny heat variations

• 12μm Pixel Pitch：12μm pixel pitch enables detailed thermal mapping and accurate data analysis.

• 8–14μm Infrared Band：8–14μm long-wave infrared spectral range, stable performance under various environments.

• Low Power Consumption：DC5V powered, compact form factor, perfect for drone payload integration.

• Broad Field of View：46°×37° FOV for wide-area monitoring and rapid inspection.

• Dual Video Output：CVBS and UVC dual output, compatible with FPV systems and USB devices for flexible connection。
