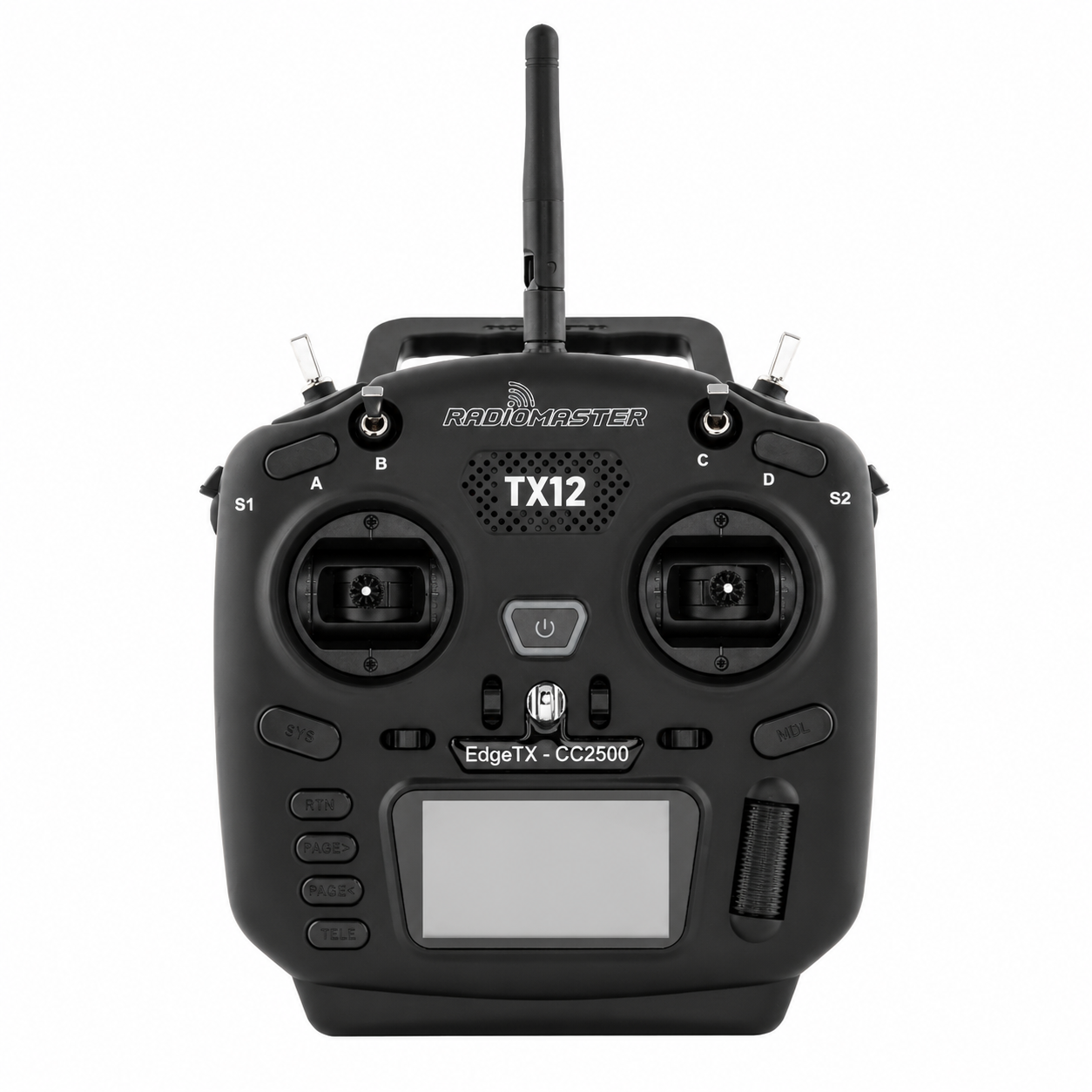

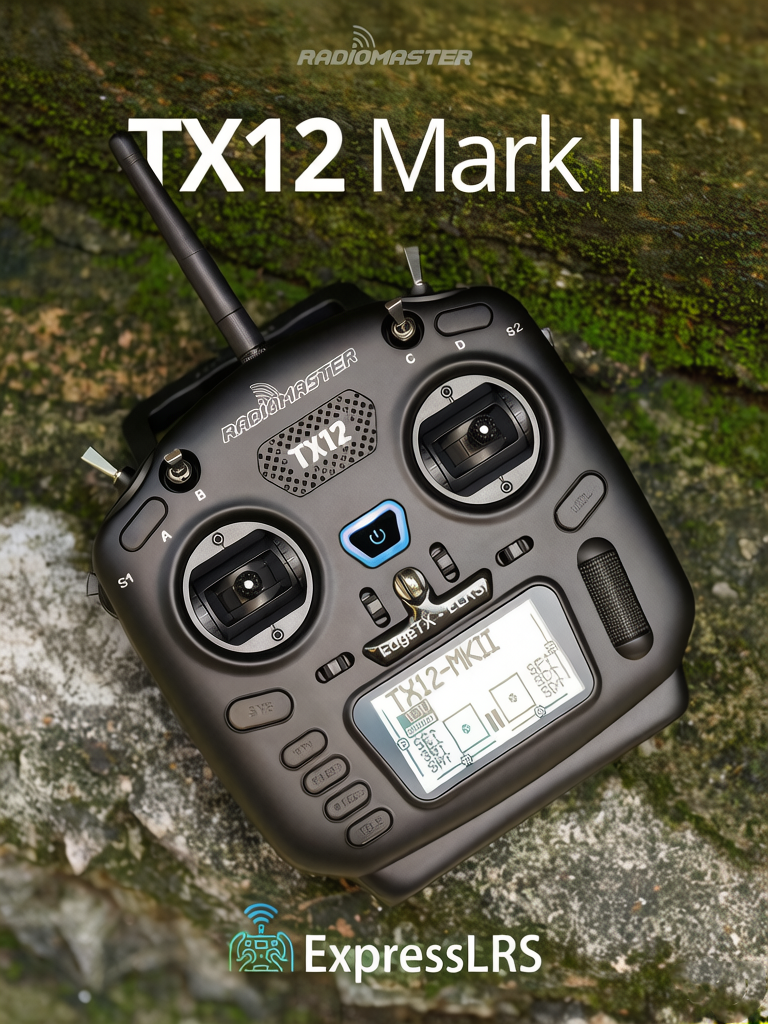

Radio Master TX12 MKII ELRS/CC2500 Remote Control for RC Drone

Product Details

Product Description

Model Name	TX12 Mark II Radio Controller
Use	Drone
Function	USB Rechargeable
Code	Fixed Code
Battery	Rechargeable
Private mold	Yes
Product name	Radiomaster TX12 MKII
Weight	363g
Operating frequency	2.400GHZ-2.480GHZ
Operational voltage	6.6-8.4vDC
Operating system	EdgeTX
Control channels	Maximum 16(Receiver dependent)
Display	128*64 Monochrome LCD

Features
* Added ExpressLRS Backpack support

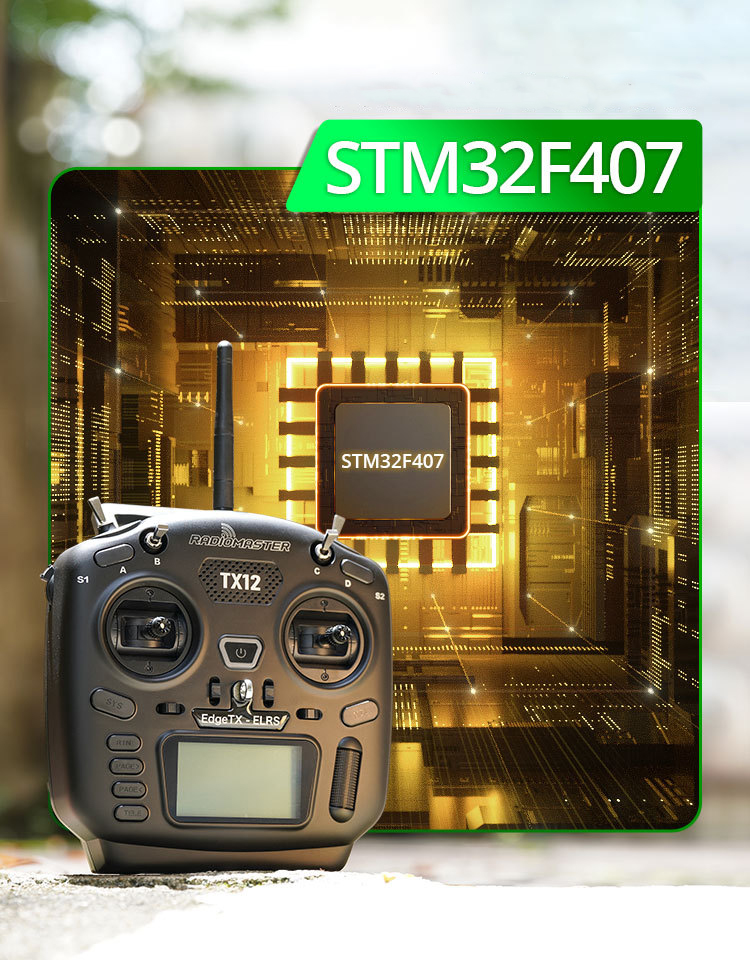

* Updated main board design from STM32F207 to STM32F407
* Improved USB-C QC 3.0 Charging
* Precision hall-effect gimbals as standard
* EdgeTX operating system installed from the factory

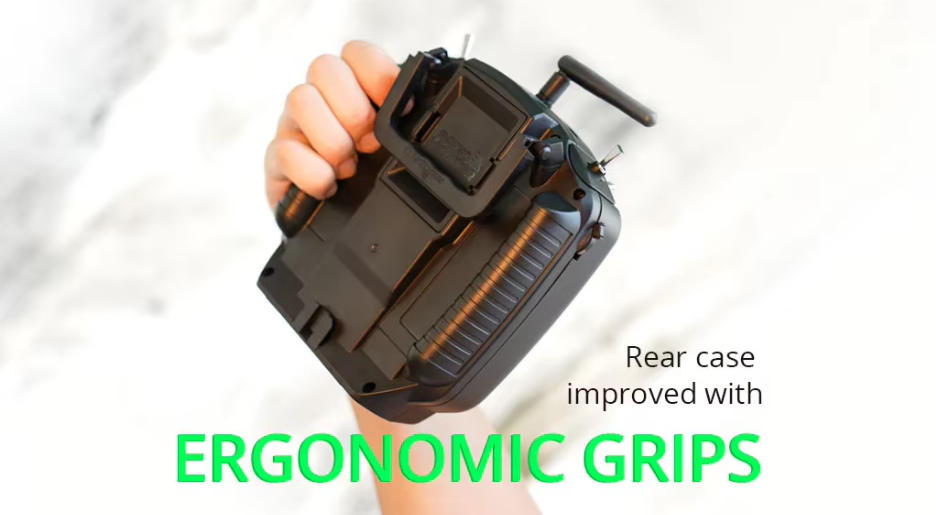

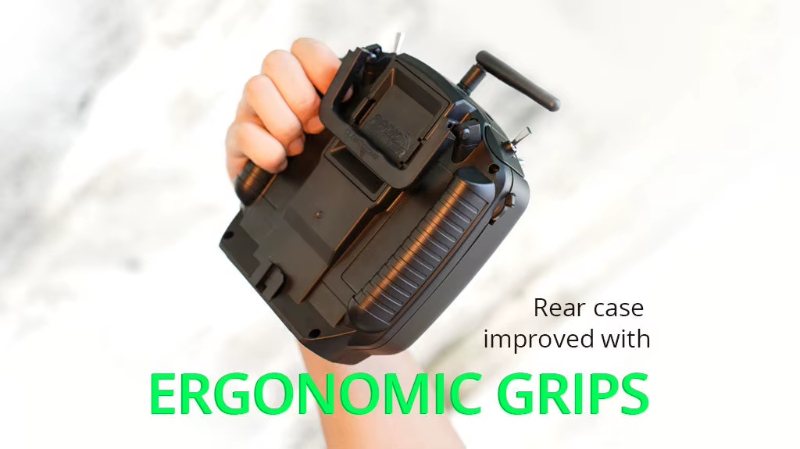

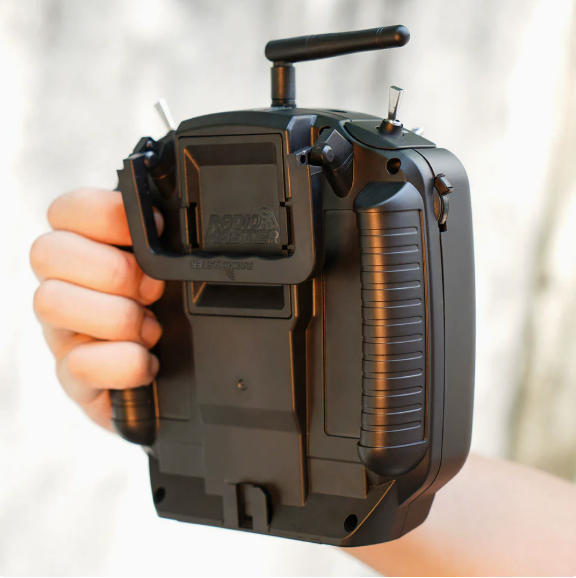

* Updated rear case with comfortable grips

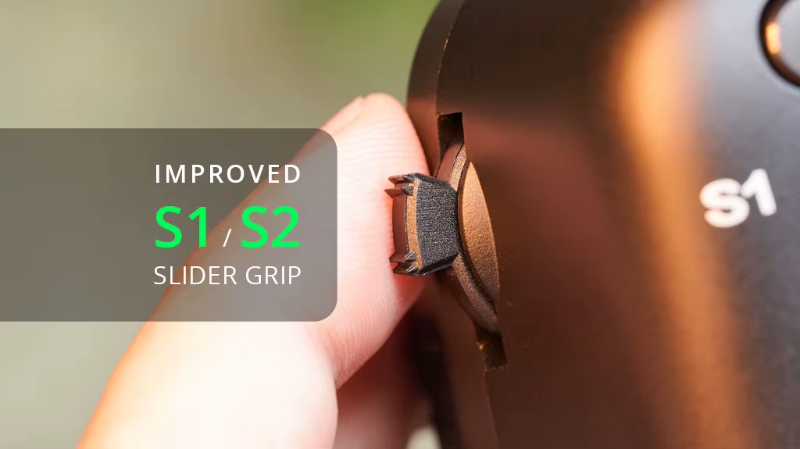

* Improved S1 / S2 slider grip
* SD Card included
* Provide M1 and M2 modes

Specification
* Item: TX12 Mark II Radio

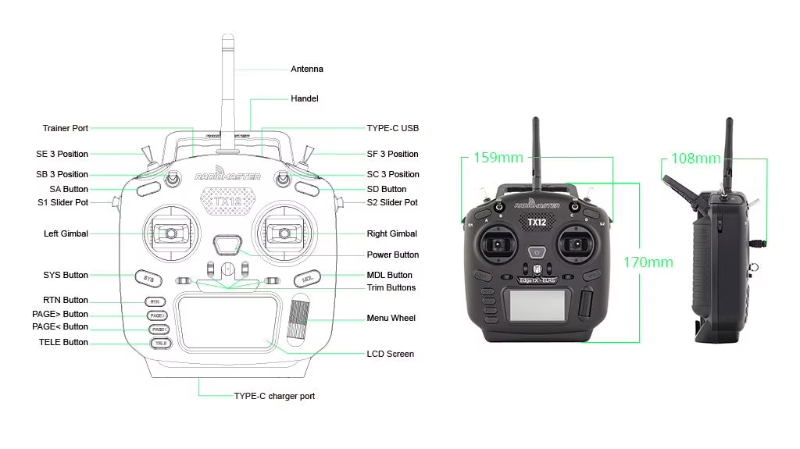

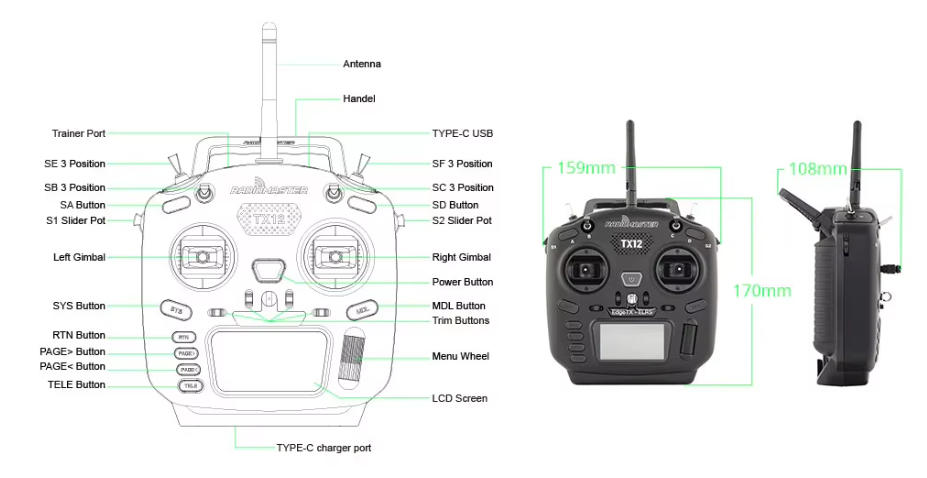

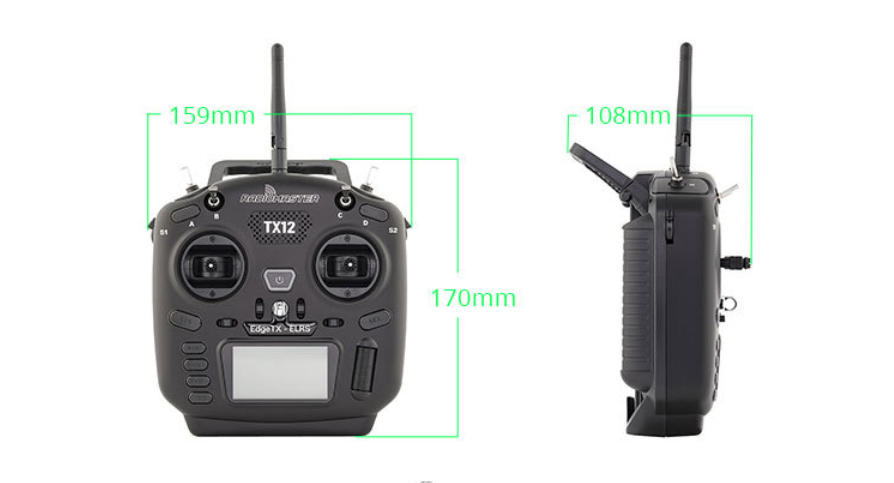

* Size: 170*159*108mm
* Weight: 363g
* Frequency: 2.400GHZ-2.480GHZ
* RF Chip: ExpressLRS (ELRS) / CC2500
* Working Current: 320mA@8.4V (ELRS) / 180mA@8.4V (CC2500)
* Voltage Range: 6.6-8.4v DC
* Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module) / MPM (RF module)
* Channels: Up to 16 (depending on the receiver)
* Display: 128*64 Monochrome LCD display
* Gimbal: High precision hall gimbals
* External module: JR/FrSKY/Crossfire compatible
* Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software

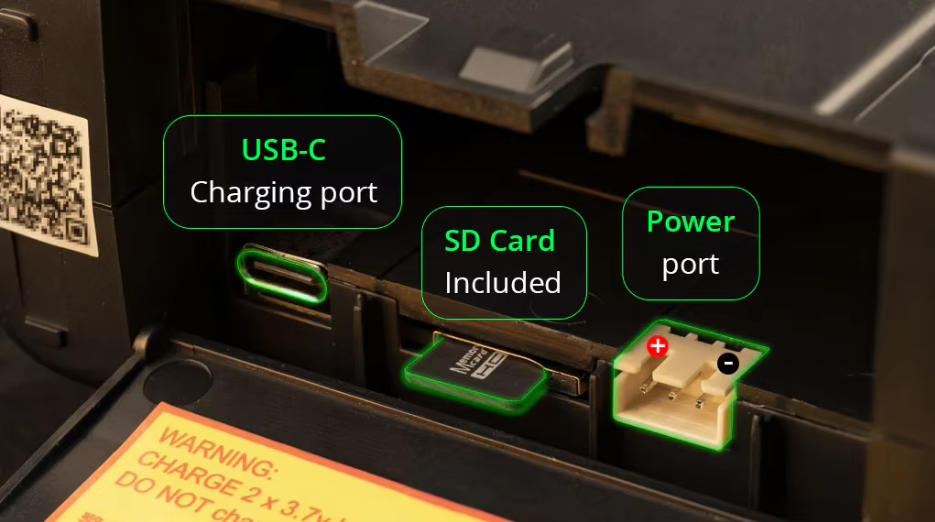

* USB Charging: QC3 USB-C

* SD Card: Included

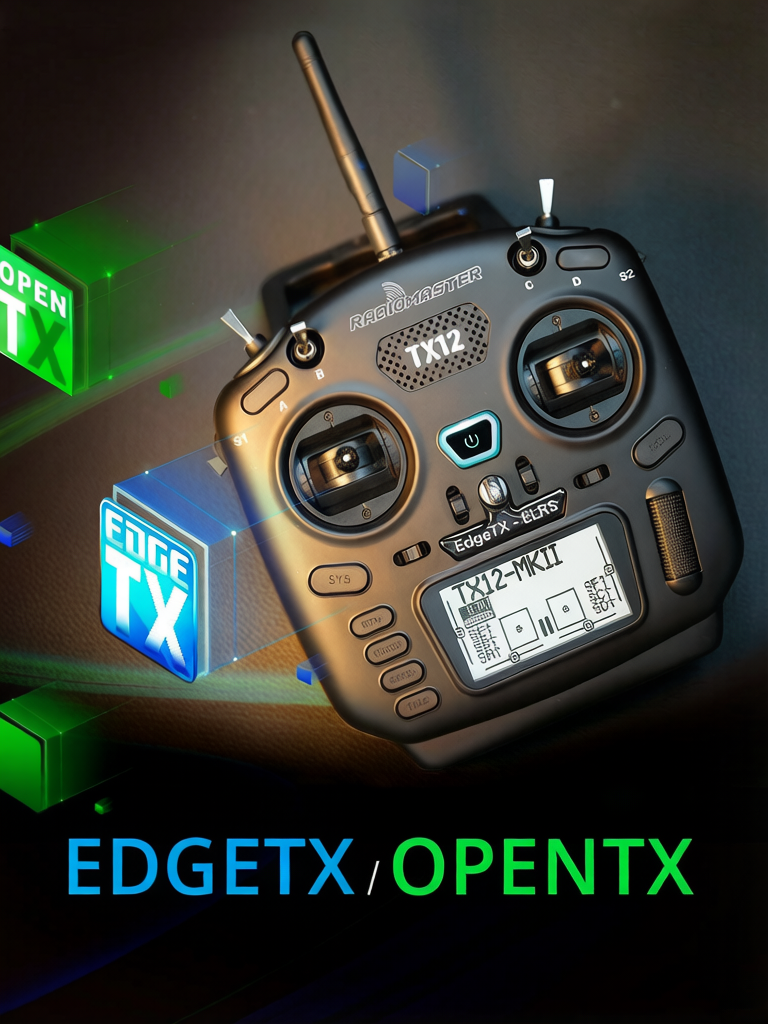

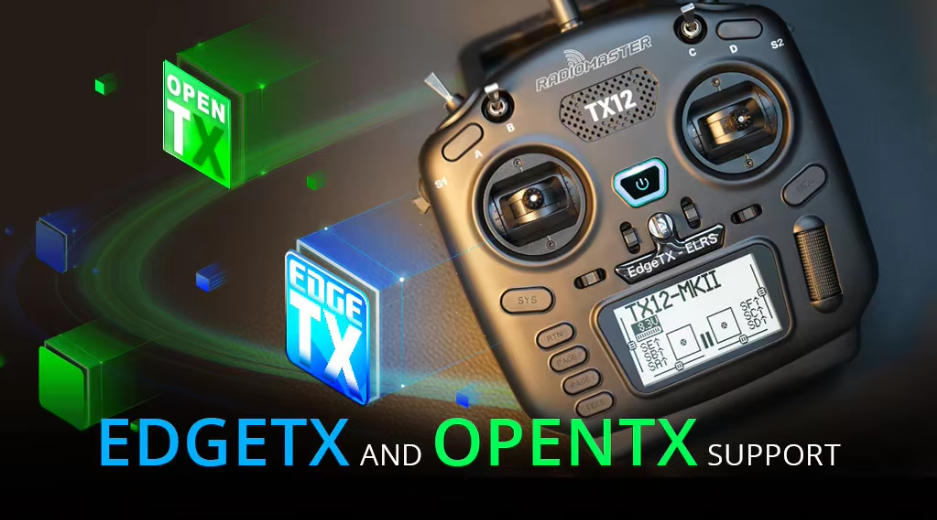

EdgeTX Operating SystemPreinstalled with EdgeTX, the RadioMaster TX12 MKII has cutting-edge software that is constantly evolving and improving. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.

FCC Version and EU LBT Version are AvailableFCC Version
* CC2500 (FCC) Version supports all CC2500 protocols
* ELRS (FCC) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependant)

EU LBT Version
* CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
* ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

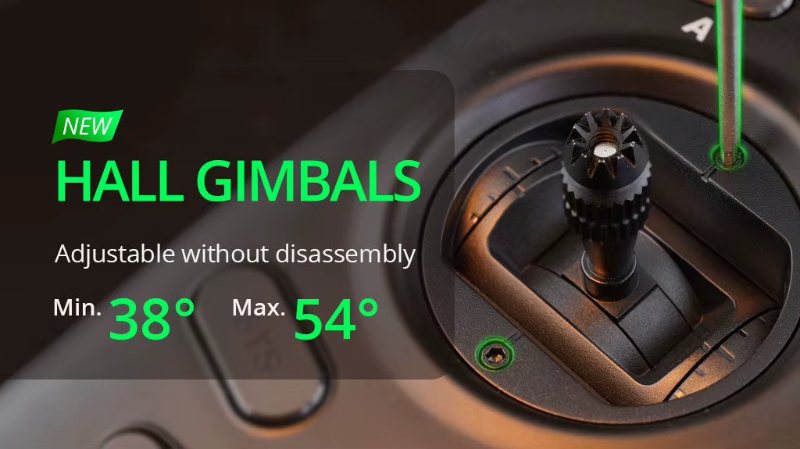

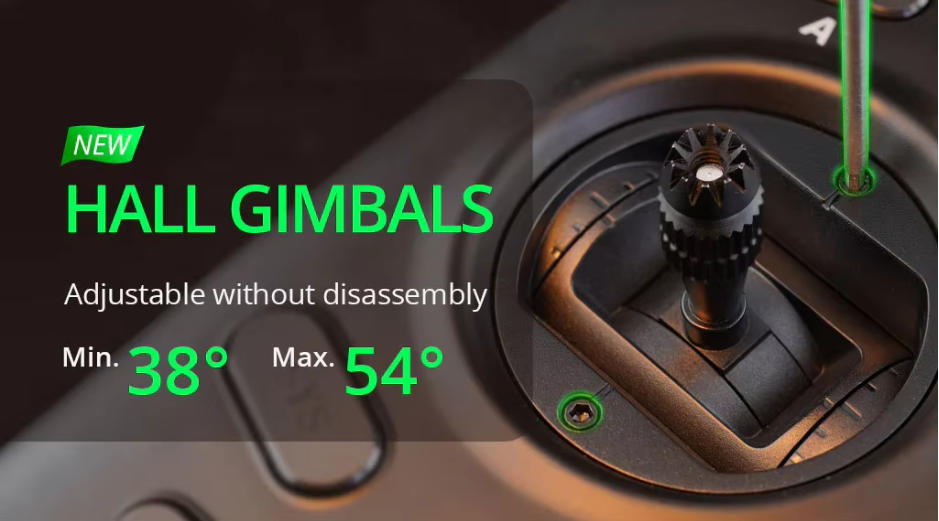

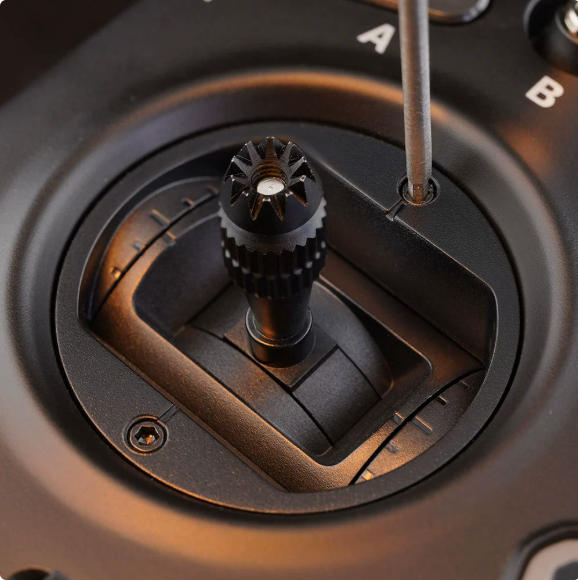

New Hall GimbalsWith Hall Gimbals, the same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability.

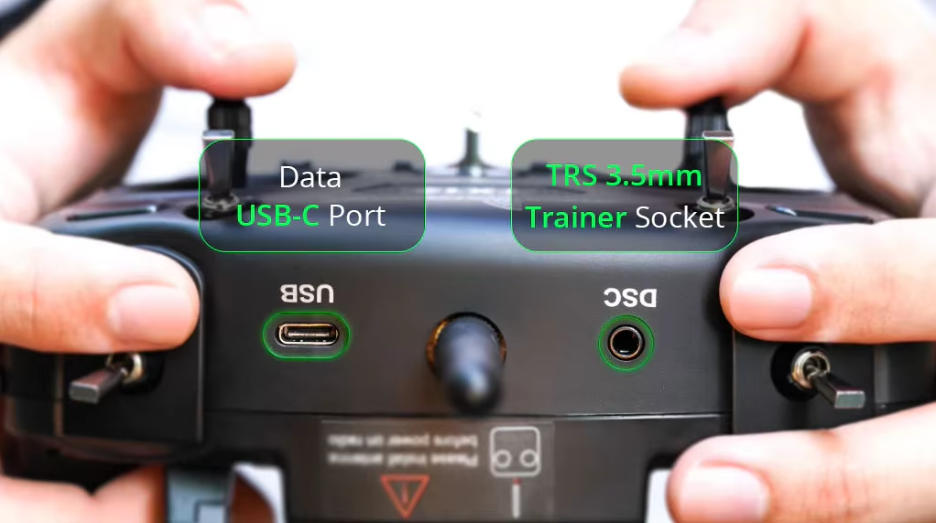

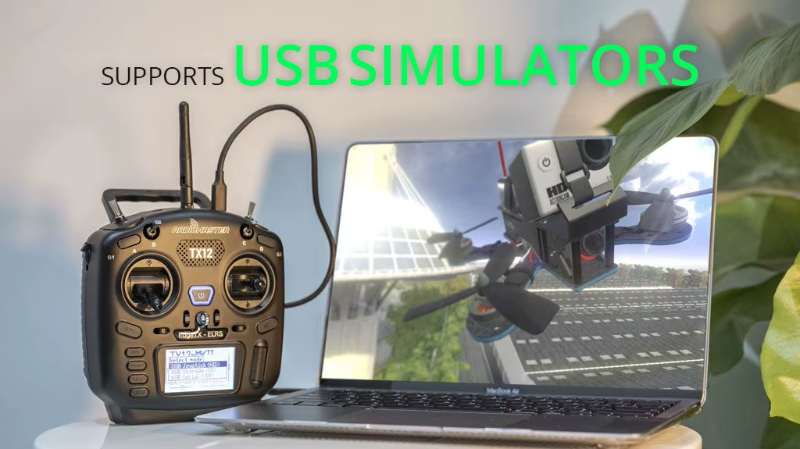

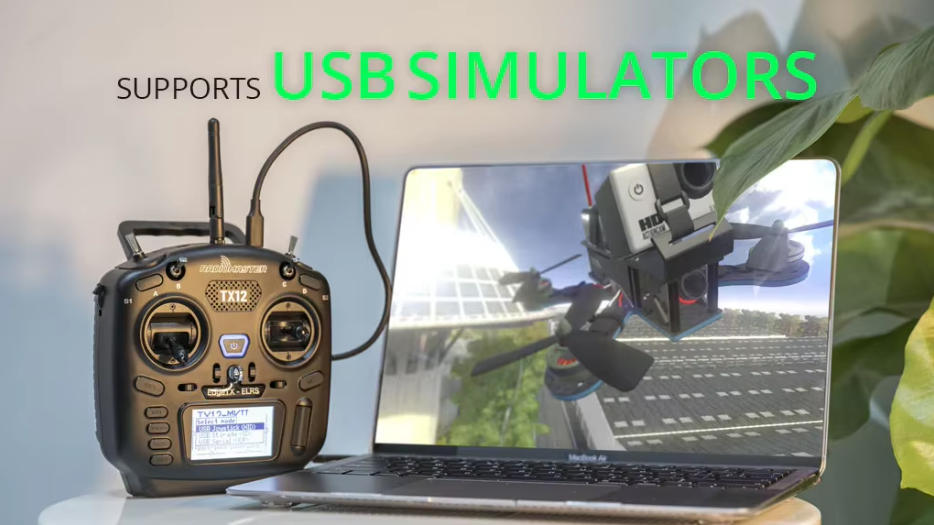

Support USB Simulator

Improved USB-C QC 3.0 Charging

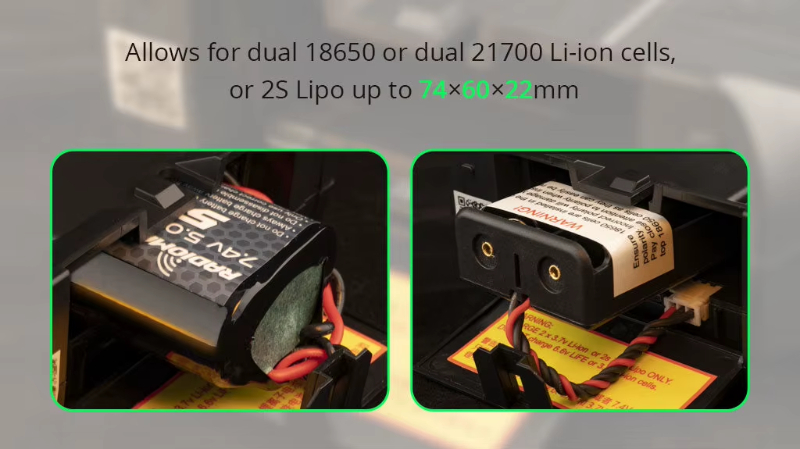

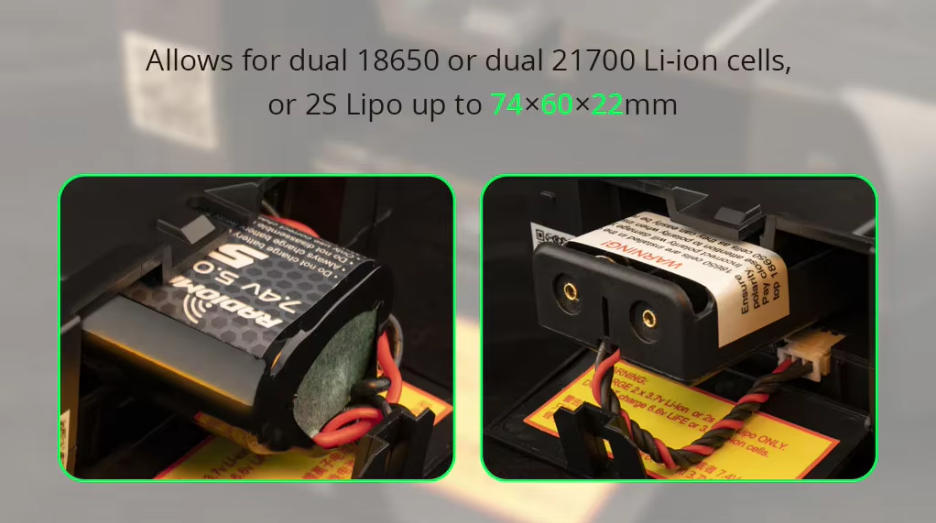

Big Battery BayAllows for dual 18650 or dual 21700 Li-ion cells, or 2S Lipo up to 74×60×22mm.

ExpressLRS BLE JOYSTICK MODEAllows for Bluetooth connection to PCs, tablets and phones with BLUETOOTH function to play simulators and games.
* ELRS version only.

Upgraded Design
