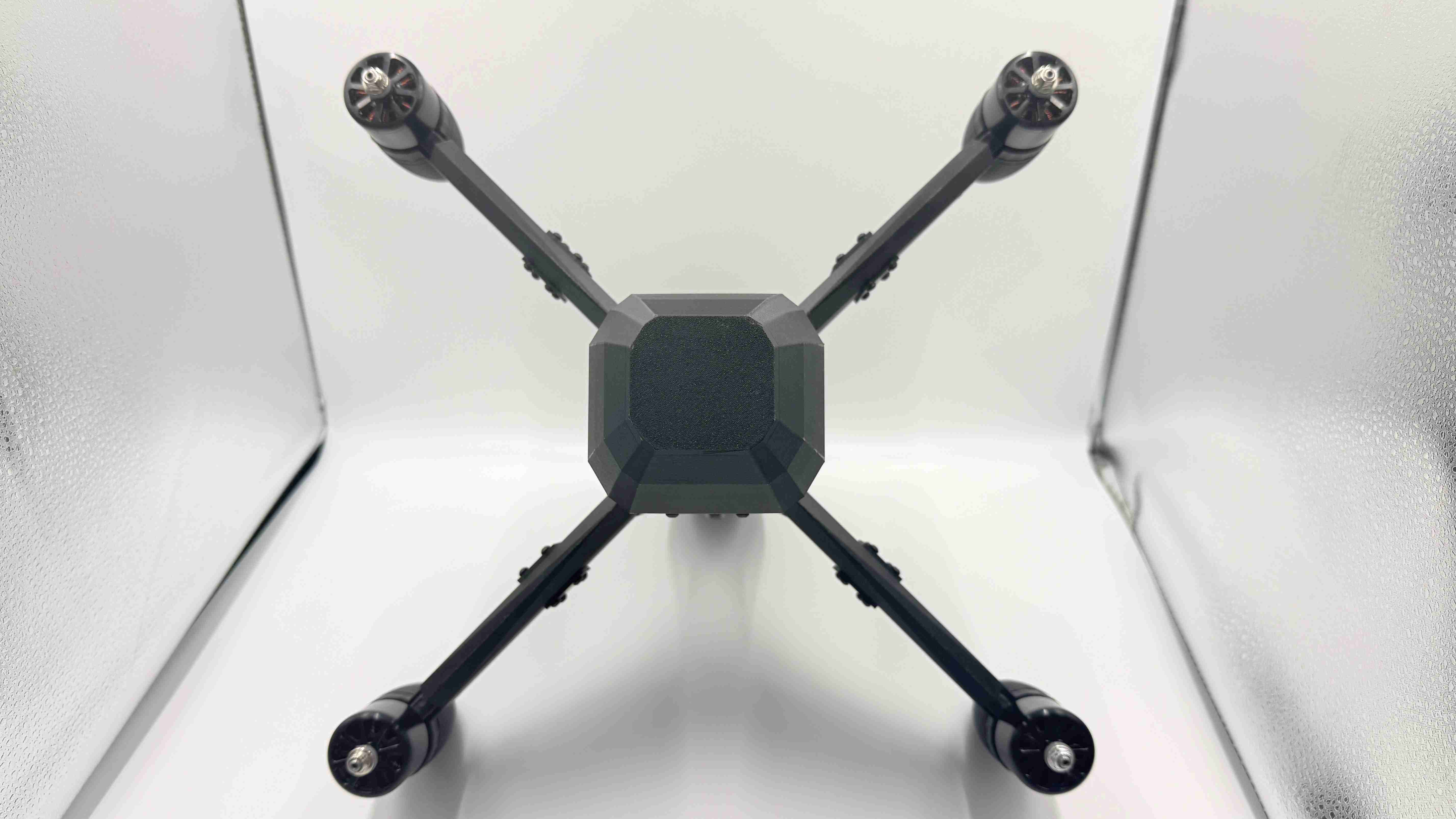

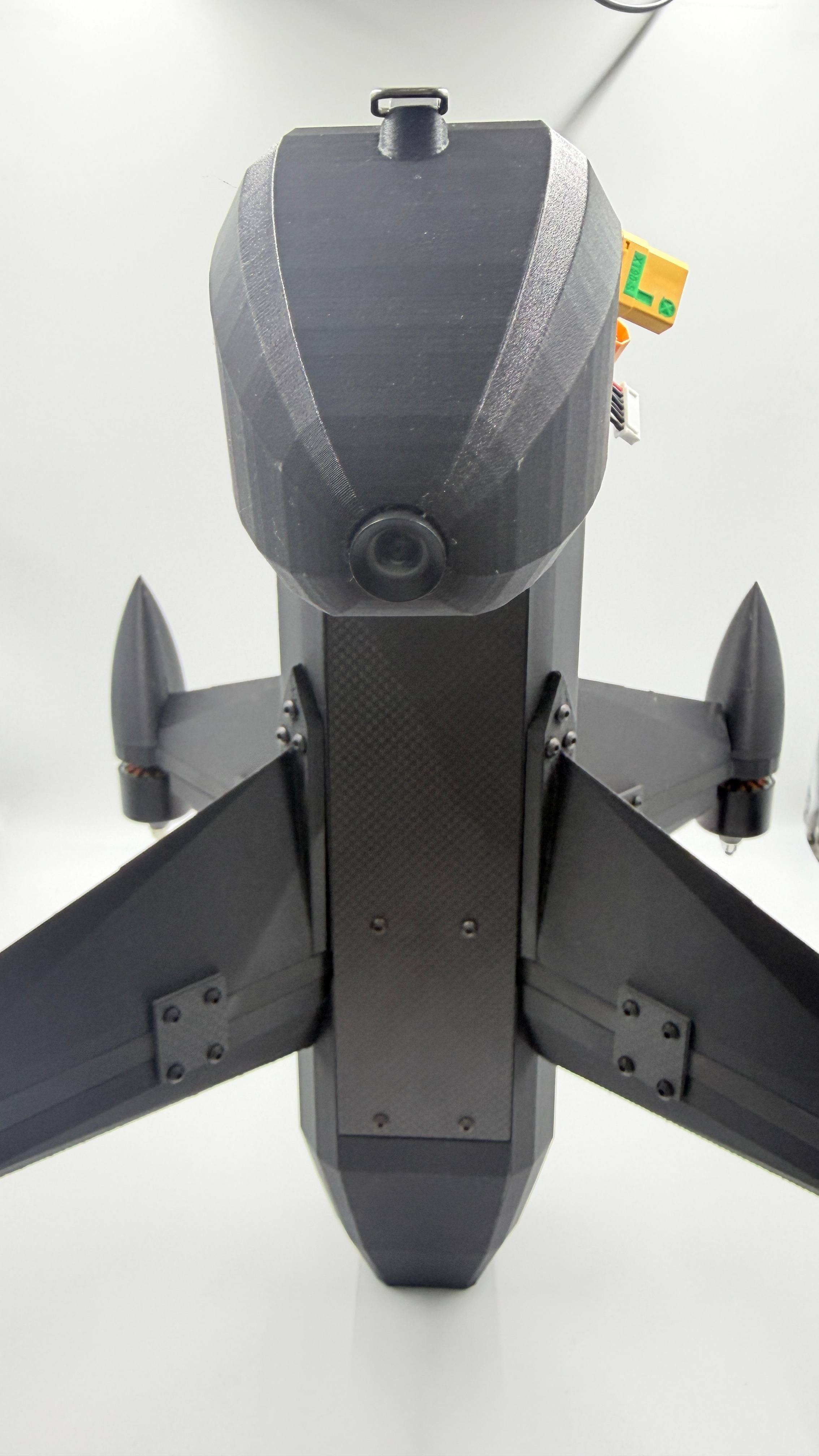

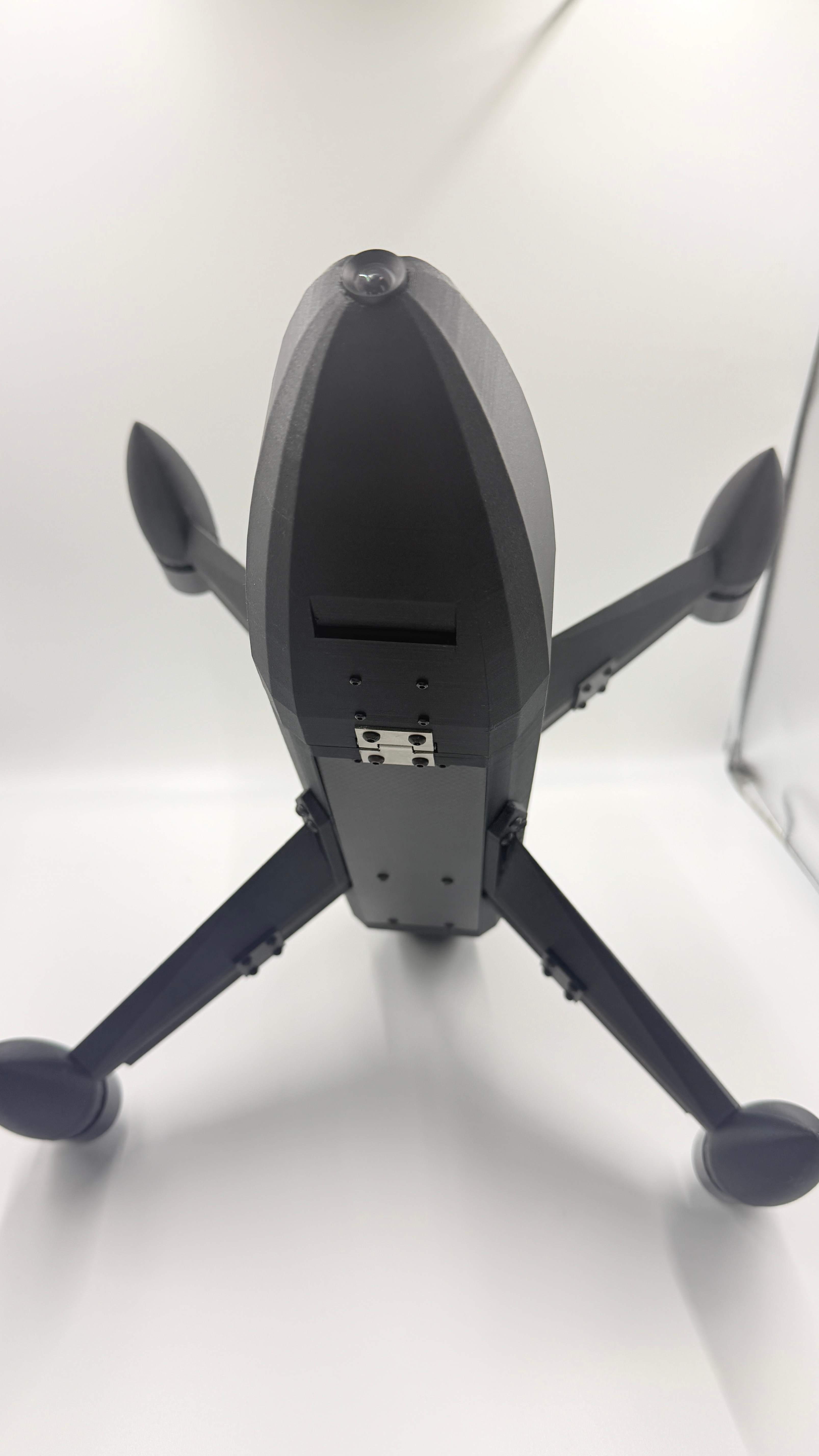

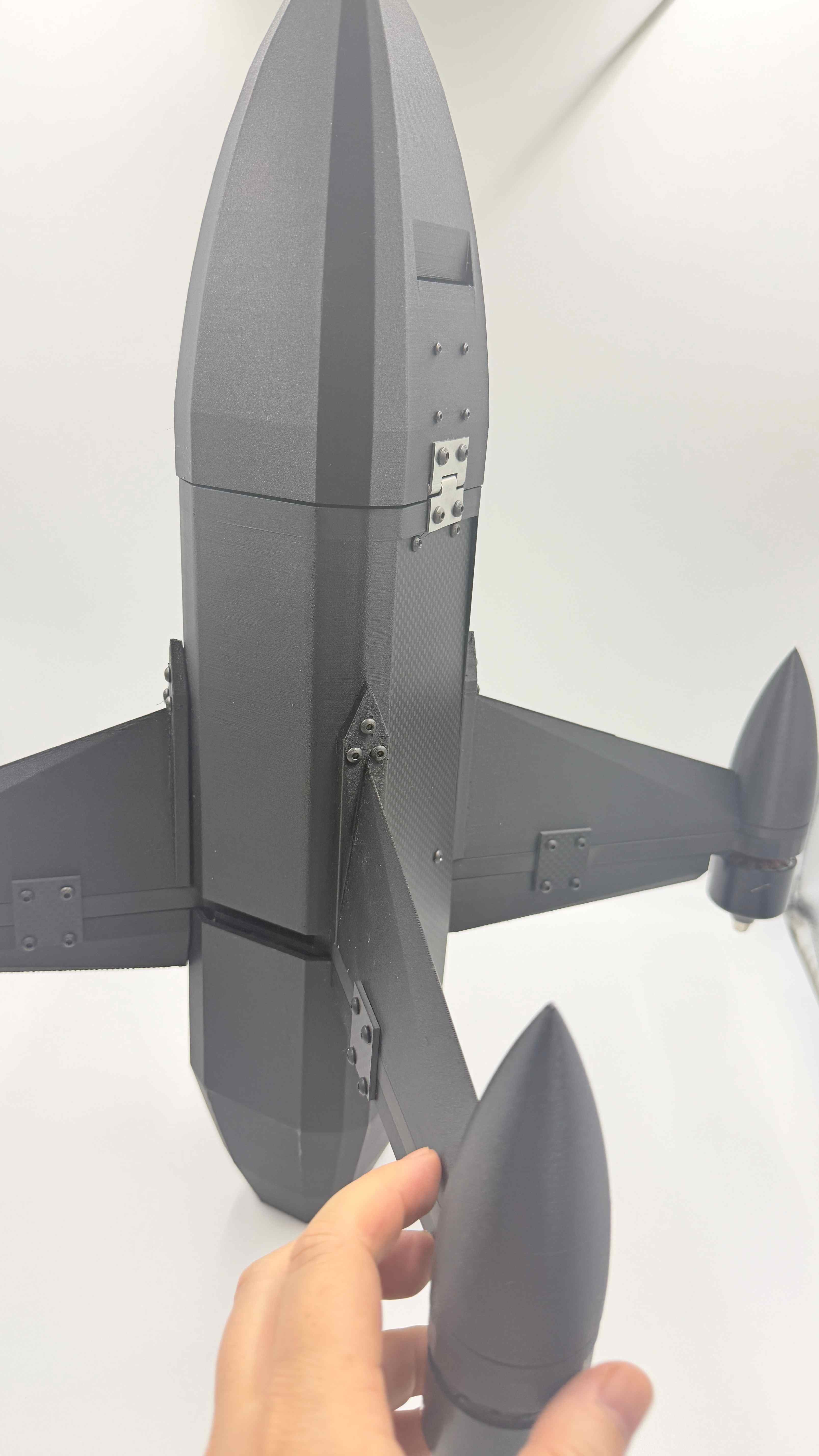

R11 AI Anti-Drone 2W 5.8G 48CH 20km Module Single-light Interceptor Drone | 15km Range 5KM Altitude
11inch Interceptor + AI-Module H743 +100A Max Speed 320km/h Payload 500g
Unit price for sample orders. Volume pricing available — request a quote.
| FC | H743 |
|---|---|
| ESC | 12s High voltage ESC |
| Camera | 1500TVL ＋AI Camera |
| Material | Carbon Fiber |
| Max Speed | 350km/h |
| Flight Time | 15mins |
| Model | R11 |
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details
High-Speed FPV Interceptor Drone for Rocket Defense Applications
This high-performance FPV interceptor drone is designed for rapid response, precision tracking, and high-speed interception missions.it delivers exceptional speed, agility, and operational reliability in complex environments.
With a compact size of 500×420×420mm and a take-off weight of 3KG, the drone achieves a maximum flight speed of 320km/h, a maximum striking speed of 45m/s, and an operational altitude of up to 5km. The high-efficiency B3220 420KV motors combined with 12S high-voltage ESCs provide strong power output and stable performance during high-speed maneuvers.
Equipped with an advanced single-spectrum visual guidance system, the drone features intelligent target tracking and recognition capabilities, with a tracking rate above 70% and recognition rate above 90%. Powered by YOLOv8 + KCF + EKF + PID algorithms, it supports high-speed target tracking up to 180km/h with a minimum recognition pixel requirement of only 32P.
The integrated visible light camera offers 1800TVL resolution, 160° diagonal FOV, 125° horizontal FOV, and 97° vertical FOV, providing ultra-wide-angle observation, strong dynamic range, and day/night operation capability.
The drone supports multiple operation modes, including manual control, self-stabilization, and visual guidance mode. With ELRS 915MHz / 2.4G receiver technology, it provides a remote control range of 15km and a video transmission range of up to 20km.
Built with a lightweight carbon fiber airframe, including a 1cm carbon plate structure and 2mm carbon side shell, the system ensures excellent strength, durability, and impact resistance. The fuselage supports a millimeter-wave radar striker system with 30ms response time, with physical striker options available for enhanced interception capability.
Designed for extreme environments, the drone features Level 8 wind resistance, reliable performance under harsh weather conditions, and supports secondary development through the MAVLink CRSF SBUS protocol.
The package also includes DRL FPV simulation training software, providing professional training support for operators and improving mission readiness.
Key Features:
• Maximum speed: 320km/h
• Maximum payload: 500g
• Flight altitude: up to 5km
• Long-range control: 15km
• Video transmission: 20km
• AI-powered visual tracking and recognition
• High-speed interception capability
• Carbon fiber lightweight structure
• Advanced radar/physical striking options
• Professional FPV simulation training support
This interceptor drone combines speed, intelligence, and precision, providing an advanced solution for high-performance aerial interception missions.
