S100
Detector
Anti Starlink Drone Jamming Device S100 More Powerful
| Model | S100 |
|---|---|
| Rang | 0-3KM |
| Anti Signal | Starlink |
Request Quote
Quotation within 24 hours · MOQ from 1 unit · OEM / ODM welcome
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details

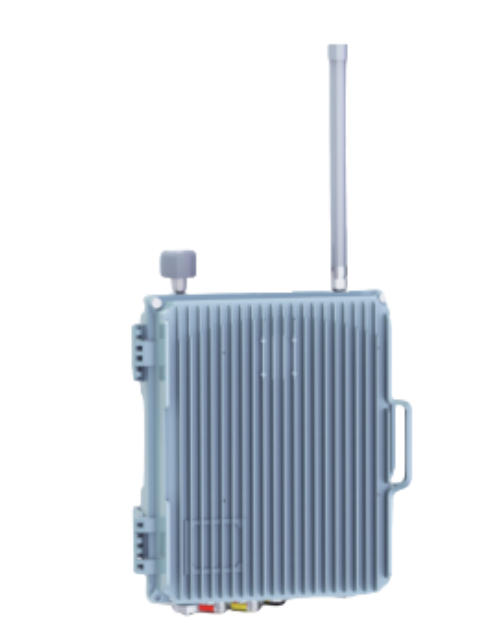

S100 Introduction
Starlink Jamming Device is a dedicated electronic countermeasure equipment designed to suppress and block communication signals of SpaceX Starlink low-orbit satellites. It falls under tactical electronic warfare gear. Adopting technical methods such as radio frequency suppression and channel jamming, the device disrupts the communication links between Starlink ground terminals (drones) and the low-orbit satellite constellation. It cuts off network access and data transmission of Starlink devices within designated areas, achieving regional satellite communication shielding. It is widely deployed in military confrontation and electromagnetic spectrum management scenarios.
Main Function
- Precision Targeted Jamming: Specially adapted to Starlink’s communication frequency bands and channel mechanisms. Unlike full-band jamming devices, it features high pertinence and jamming efficiency. It can accurately shield signals of Starlink-terminal-equipped drones and avoid indiscriminate interference with other civilian communication devices.
- Area Coverage Capability: The modular Starlink jamming system can form an electromagnetic shielding area of approximately 25 square kilometers, with an effective combat radius exceeding 3 kilometers. Within the covered area, the transmission rate of Starlink-terminal drones can be reduced to zero, completely losing communication and operational capabilities.
- Mobile and Concealed Deployment: Mostly adopting a modular design, the system supports rapid mobility, quick setup and fast tear-down. Some units integrate lightweight antennas with high visual concealment. It can be camouflaged and deployed on ordinary vehicles to meet the requirements of mobile frontline operations.
- Multi-mode Jamming Adaptation: It supports multiple operating modes including fixed-channel suppression and dynamic sweep jamming. It can counter the adaptive frequency hopping and link reconnection mechanisms of Starlink terminals, continuously locking communication links and preventing the terminals from automatically restoring network connectivity.

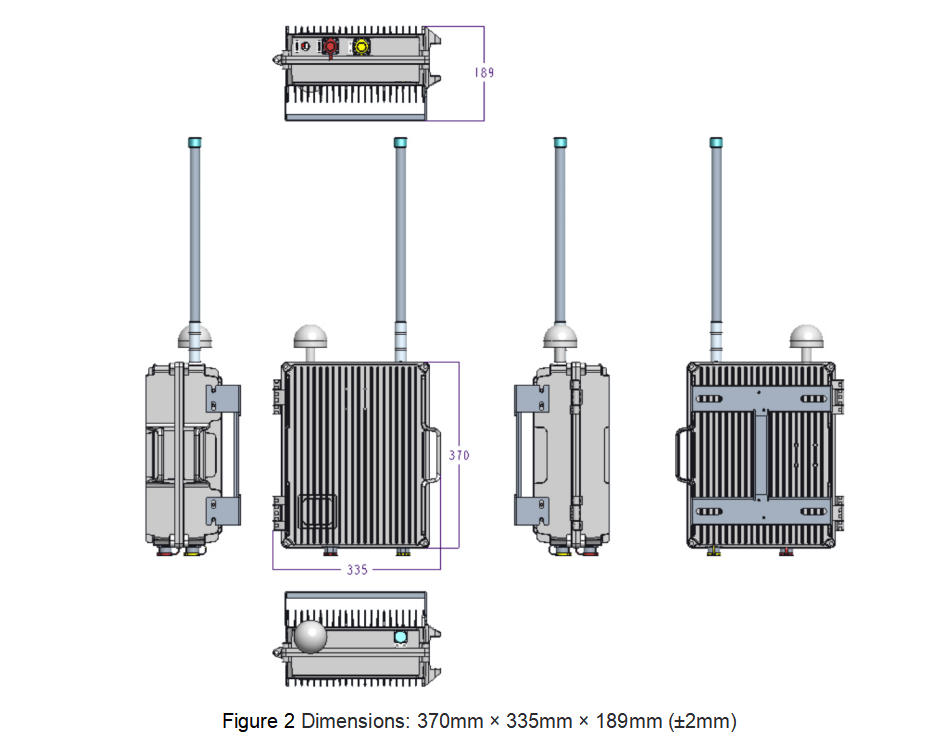

Dimensions
Packaging Information Specifications
| Device Dimensions | 370mm × 335mm × 189mm |
|---|---|
| Packaging Dimensions | 700mm × 510mm × 300mm |
| Weight | ≤13kg |
| Packaging Method | Flight Case |
*The packaging information is for your reference only.
Specification
| Work Way | Linear frequency sweep, multi-channel noise modulation available |
|---|---|
| Rang | 0~3km (Without obstruction) |
| Anti Signal | Starlink |
| Frequency | 10.7-12.7GHz |
| Sweeping Operating Bandwidth | 1MHz~2000MHz |
| Sweeping Rate | 100kHz~500kHz |
| Frequency Error | 0.1MHz |
| Coverage Angle | 360° full airspace |
| Start Work Time | <5s |
| Voltage | AC 110~240V |
| Power | 300W |
| Size | 370mm × 335mm × 189mm |
| Weight | ≤13kg |
| Temperature | -35°C to +65°C |
| Protection Class | IP66 |
