CADDX Walksnail Avatar HD FPV Goggles X
•Dual 1080p OLED displays deliver vibrant colors and high contrast • Smooth 100fps video feed uses advanced H.265 encoding • Massive 50-degree field of view creates an immersive experience • Ultra-low 22ms latency provides immediate flight feedback • Built-in gyro enables real-time camera head tracking • HDMI input, HDMI output, and analog AV-in ports included • Independent diopter adjustment ranges from +2.0 to -6.0 • Interpupillary distance range adjusts mechanically from 57mm to 72mm • Smart cooling fan prevents lens fogging and overheating • Infrared sensors turn screens off when goggles are removed • Wide PU foam mask blocks light leaks comfortably • Removable front cover allows easy custom antenna upgrades • Flexible power management accepts 2S to 6S LiPo inputs • Micro SD slot supports recording onto cards up to 256GB
Unit price for sample orders. Volume pricing available — request a quote.

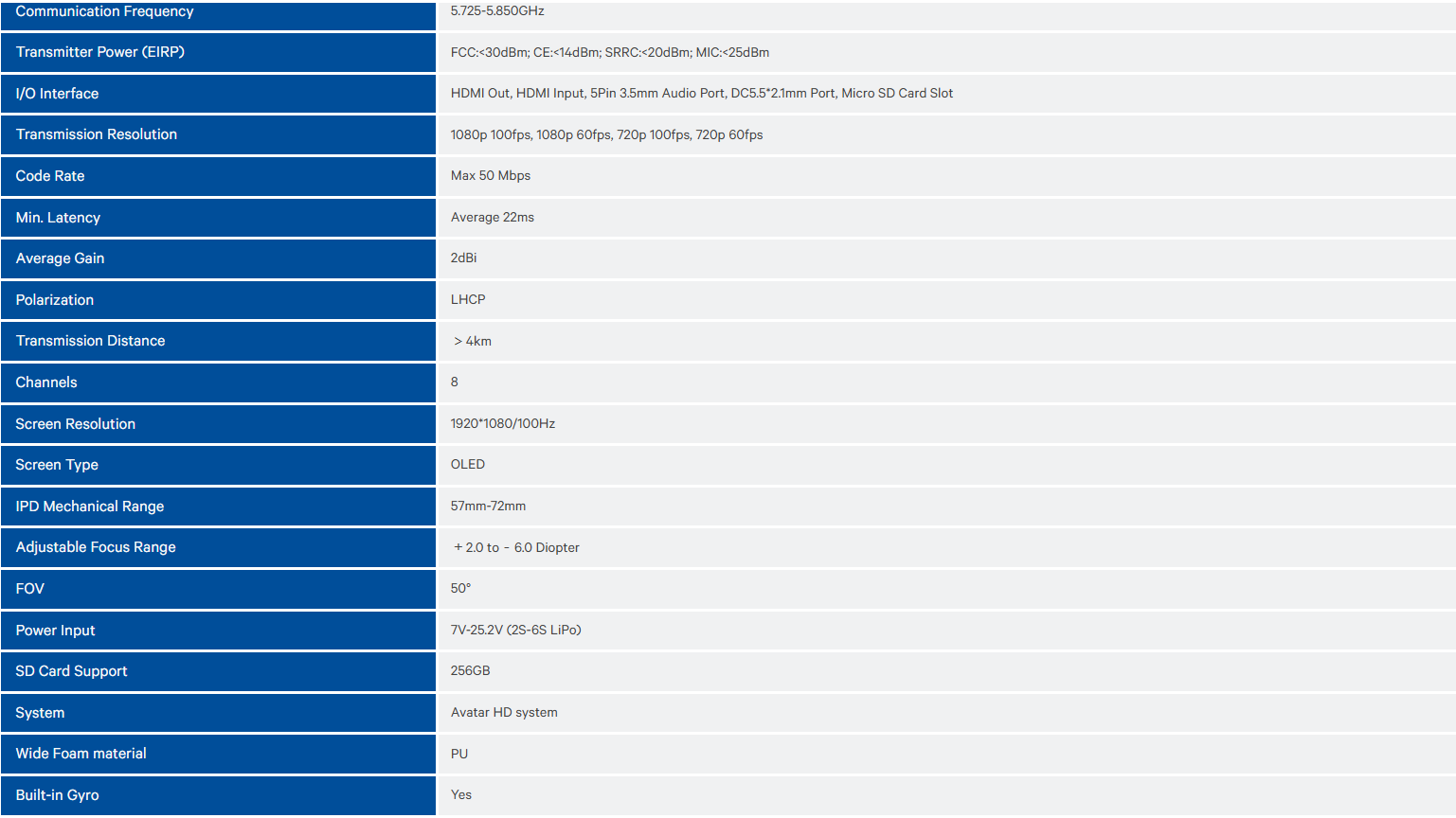

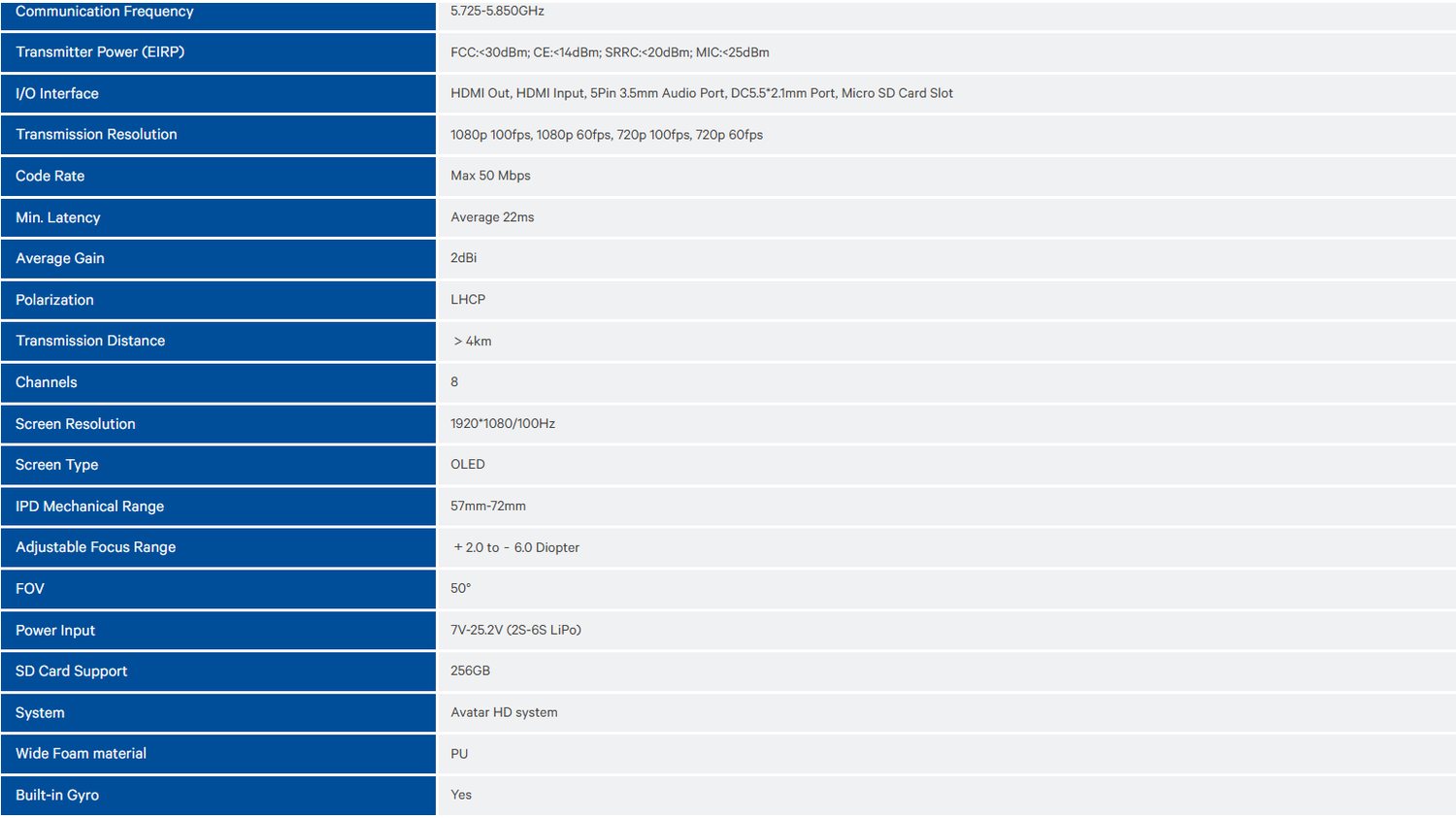

| Frequency | 5.725-5.850GHz |
|---|---|
| Channels | 8 |
| Input Voltage | 7V-25.2V (2S-6S LiPo) |
- OEM / ODM customization supported
- Prototype in 7–15 days
- 12-month warranty, 24h technical support
Product Details
Walksnail Avatar HD FPV Goggles X from CaddxFPV – WN02-FP003
The Walksnail Avatar HD Goggles X mark a definitive leap forward in digital FPV technology, offering unparalleled visual clarity and performance. At the core of these goggles are dual high definition 1920x1080 OLED displays that output a fluid 1080p video feed at 100 frames per second. Boasting a massive 50degree Field of View (FOV) and an impressive 100% improvement in optical clarity over previous generations, they envelope your entire field of vision with rich, vibrant colors and deep contrast. Whether you are navigating tight racing gates, executing technical freestyle lines, or piloting cinematic long-range rigs, this system provides the crisp, real-time feedback required for precision flying.
Engineered for exceptional versatility, the Goggles X act as a universal hub for both modern digital ecosystems and legacy FPV gear. Users will appreciate the inclusion of an HDMI input and an AV-In interface, allowing seamless switching between Walksnail's flagship digital signal and traditional analog setups. An HDMI output allows you to easily cast live, low-latency footage to external field monitors, making it perfect for sharing the excitement with spectators or co-pilots at the field. Additionally, an integrated high-precision gyroscope unlocks real-time head tracking, delivering an incredibly immersive, intuitive flight perspective when paired with pan-and-tilt camera gimbals on fixed-wing aircraft, helicopters, or surface vehicles.
Walksnail has prioritized comfort and system longevity through a completely optimized physical layout. The goggles feature a wide, light-blocking PU foam mask designed to conform comfortably to various face shapes while eliminating distracting peripheral light leaks. Vision adjustments are entirely tool-free, utilizing an adjustable interpupillary distance (IPD) mechanical slider ranging from 57mm to 72mm, alongside an independent diopter adjustment knob (+2.0 to -6.0) for comfortable, glasses-free operation. Under the hood, an intelligent cooling fan prevents lens fogging during humid flight days, while built-in infrared sensors automatically power down the internal OLED panels when the headset is removed—protecting your screens from premature burn-in and saving precious battery life between battery swaps.
Industry-Leading Encoding Technology
The Avatar HD system utilizes industry leading H.265 encoding technology to provide 1080p/100FPS FPV video quality with low latency, providing an immersive and responsive experience.
AV IN Interface
The goggles have an AV IN interface and support analog signals, providing a versatile solution for FPV pilots.

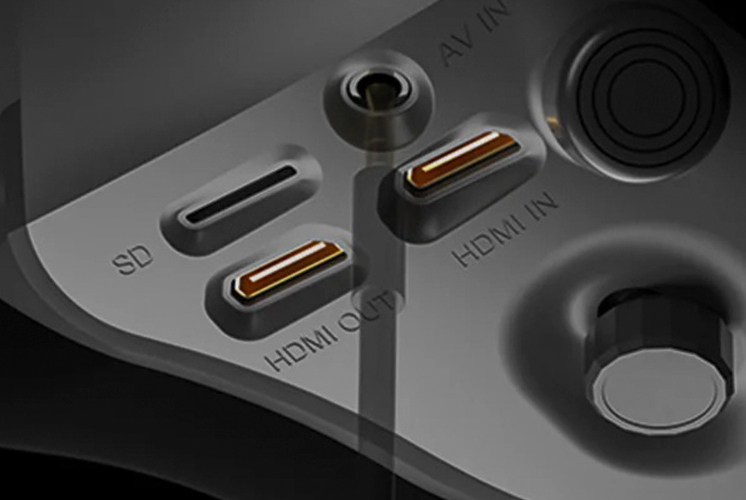

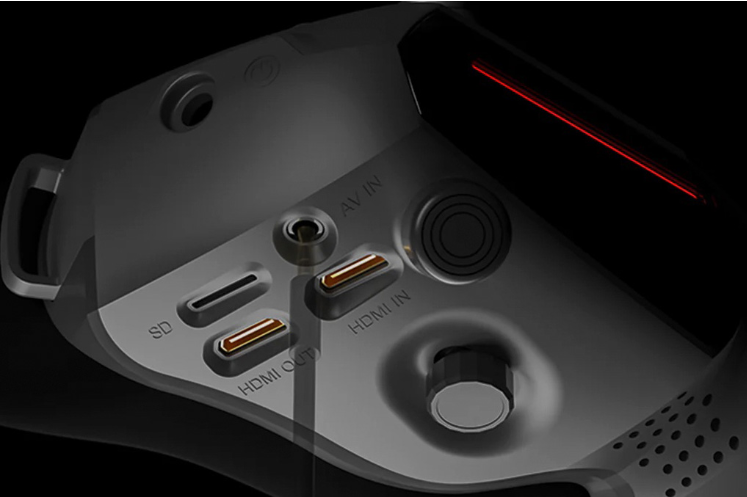

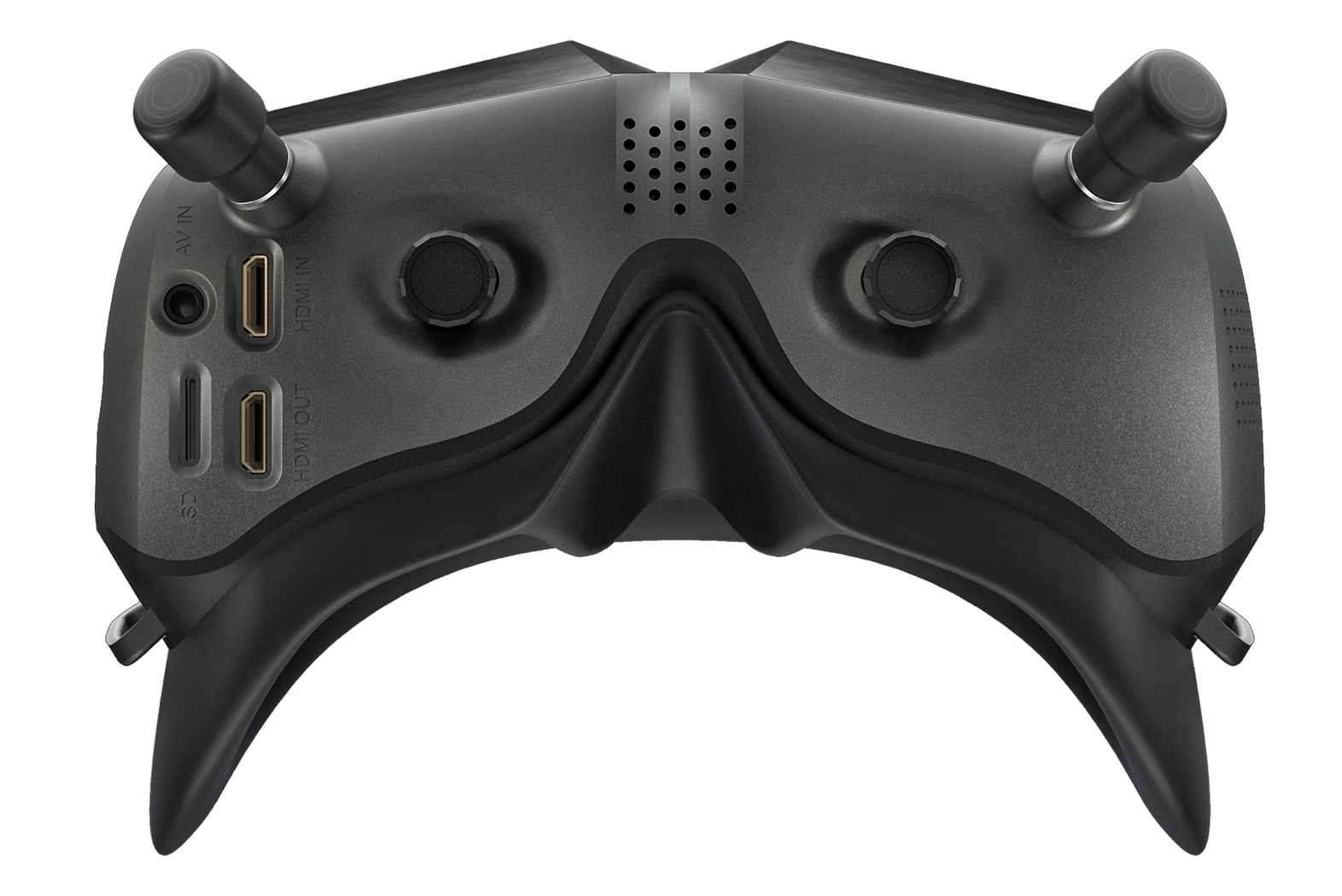

HDMI Input/Output
The HDMI input expands the range of devices that can be used with the goggles, providing more flexibility and convenience. The HDMI OUT interface can be connected to other display devices to share your flight footage with pilots in real time.

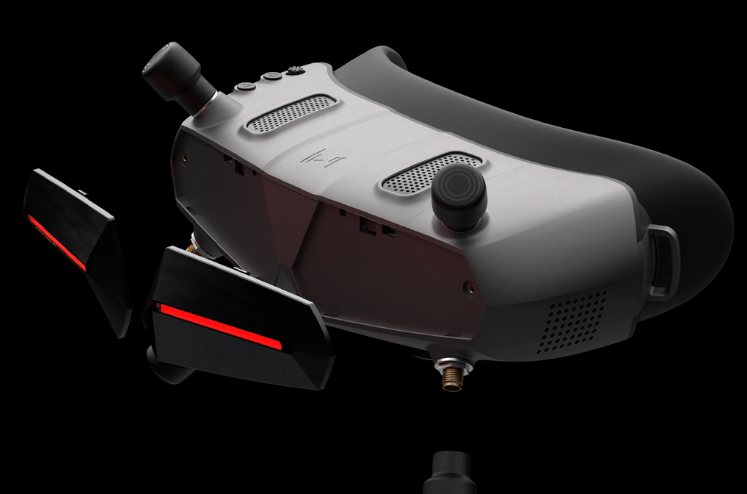

Removable Front Cover
The front cover of the goggles can be removed and replaced with a new antenna, replacing the two antennas located under the goggles, which provides pilots with more options to optimize their FPV experience.

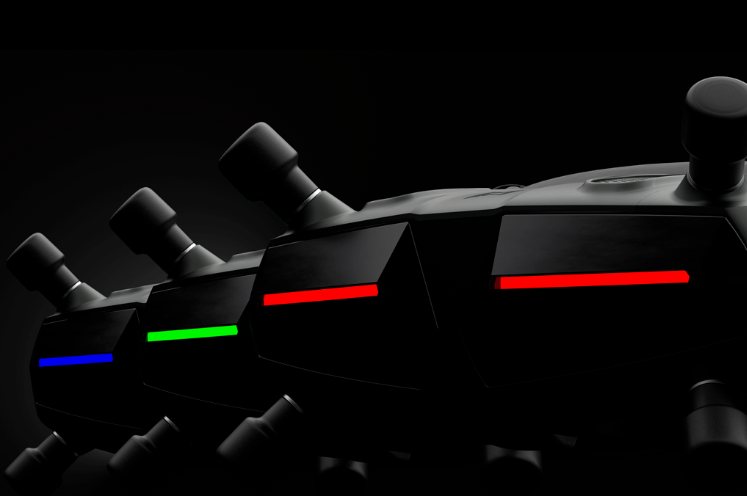

Stylish LEDs
The front cover of the goggles adds a light function, adding a touch of style to your gear.

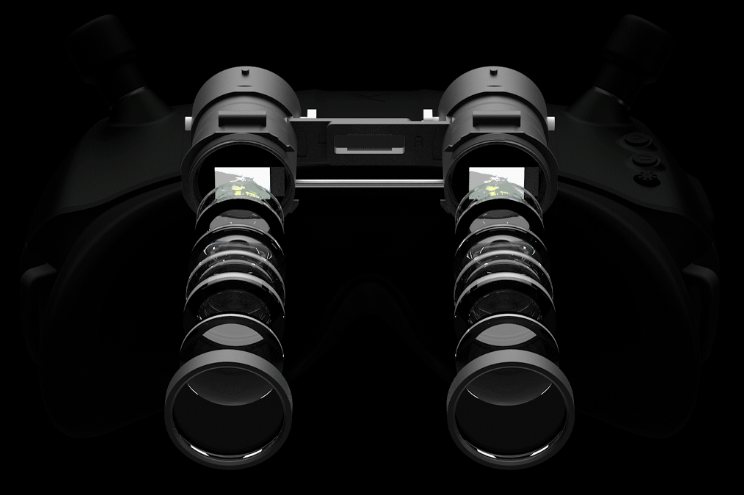

High-End Optics
Visual perfection with dual 1080p OLED clarity. A massive 50° FOV gives immersive visuals. Dial in your exact vision with precision, adjustable diopters. Lenses for astigmatism, myopia and blue light-blocking glasses can be replaced to meet different vision needs.

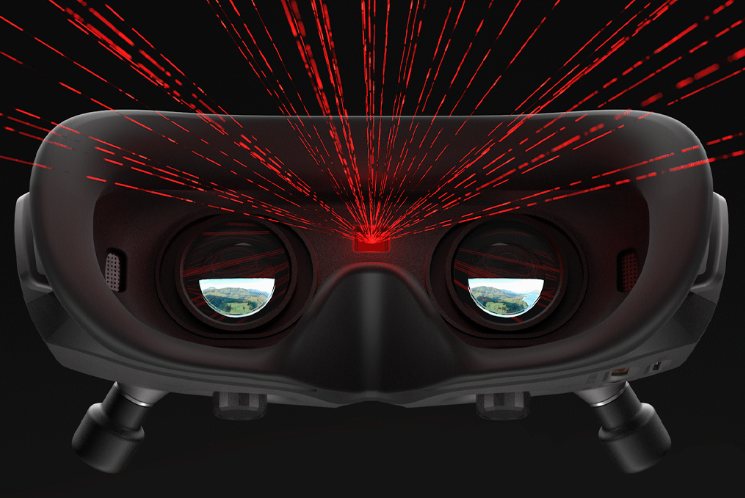

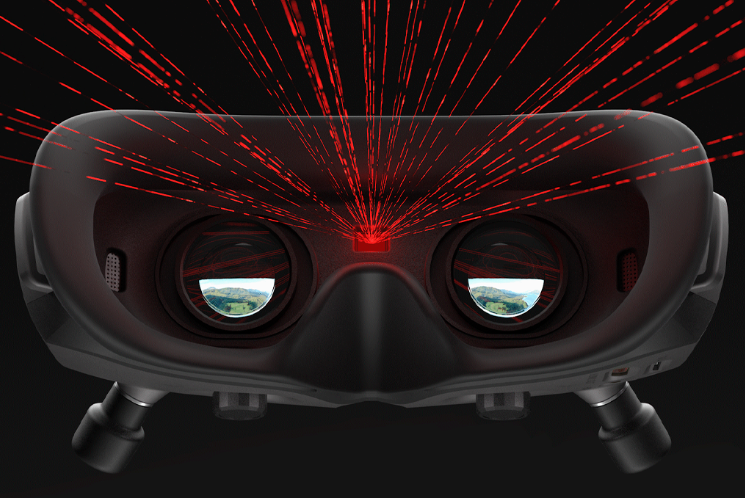

Infrared Sensing Technology
Infrared sensing technology provides pilots with a convenient and energy-efficient way to turn the screen on and off without manually pressing any buttons. This feature helps to extend the life of the screen.

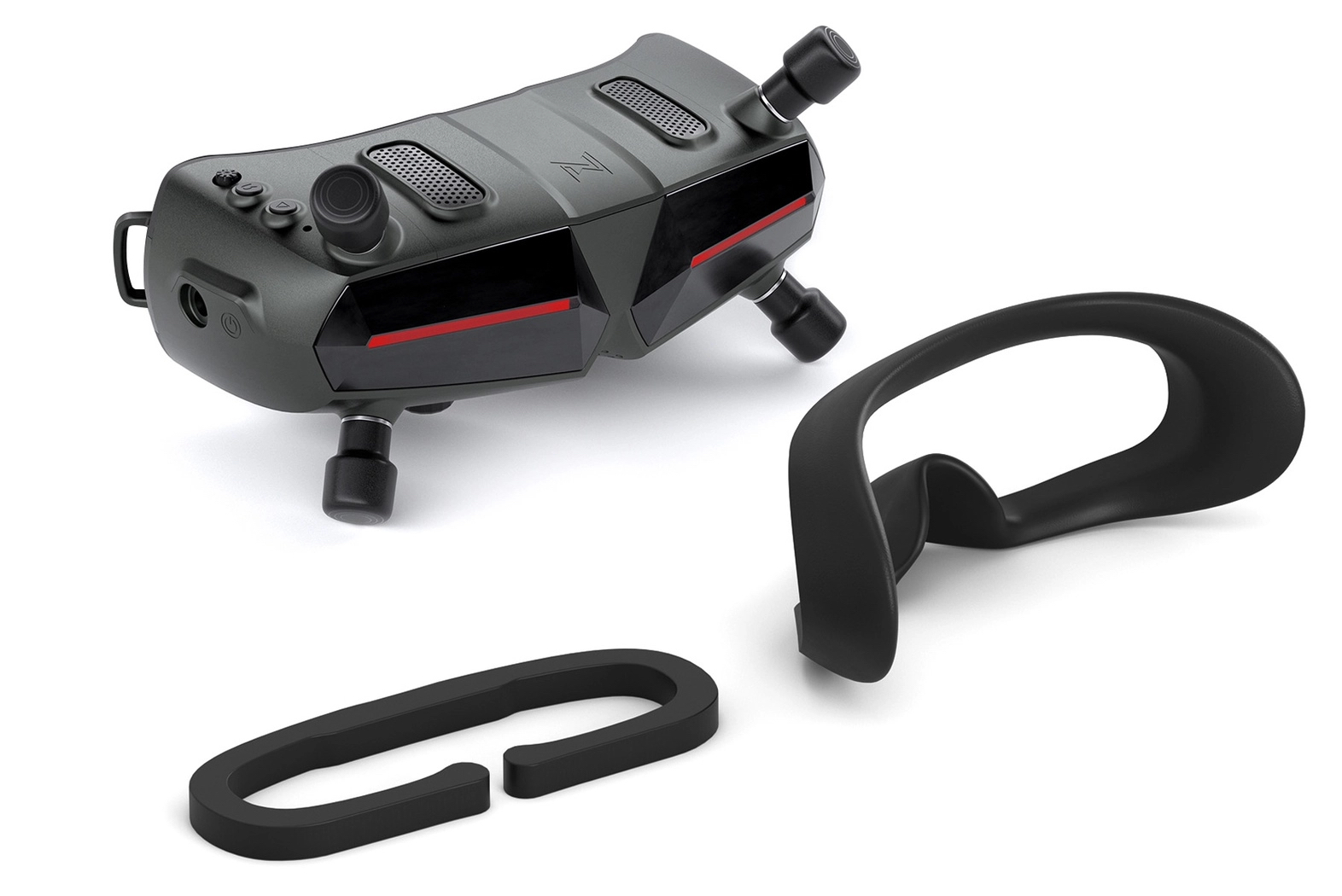

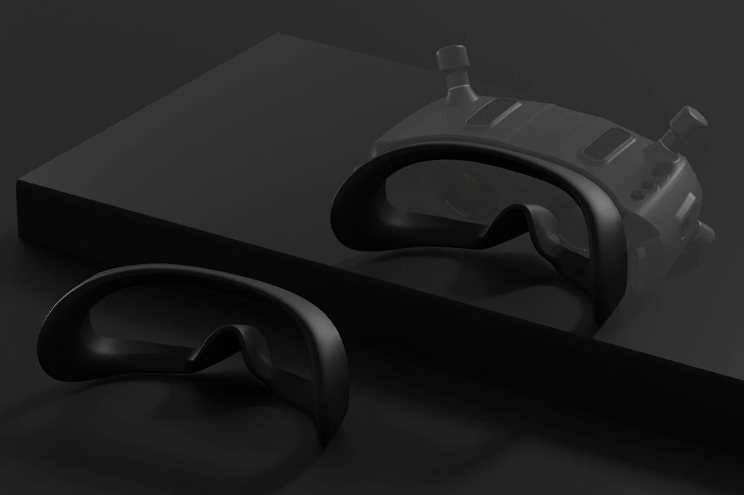

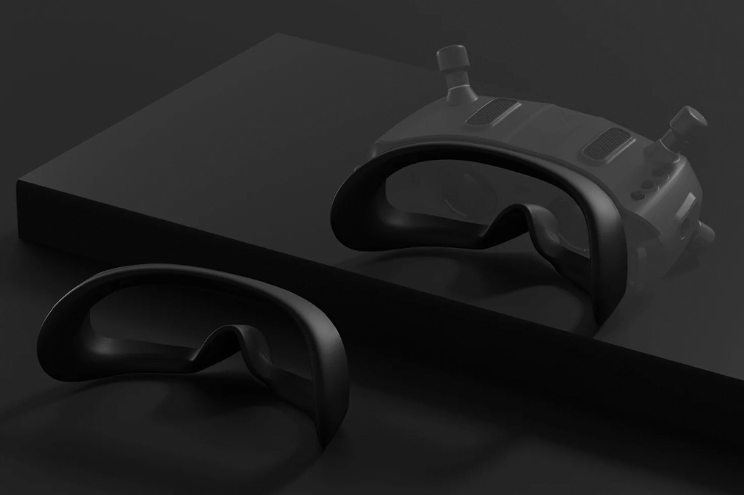

Excellent Ergonomics
The goggles feature wide foam to provide pilots with a comfortable and secure fit regardless of different facial features, creating a perfect fit and reducing light leakage.

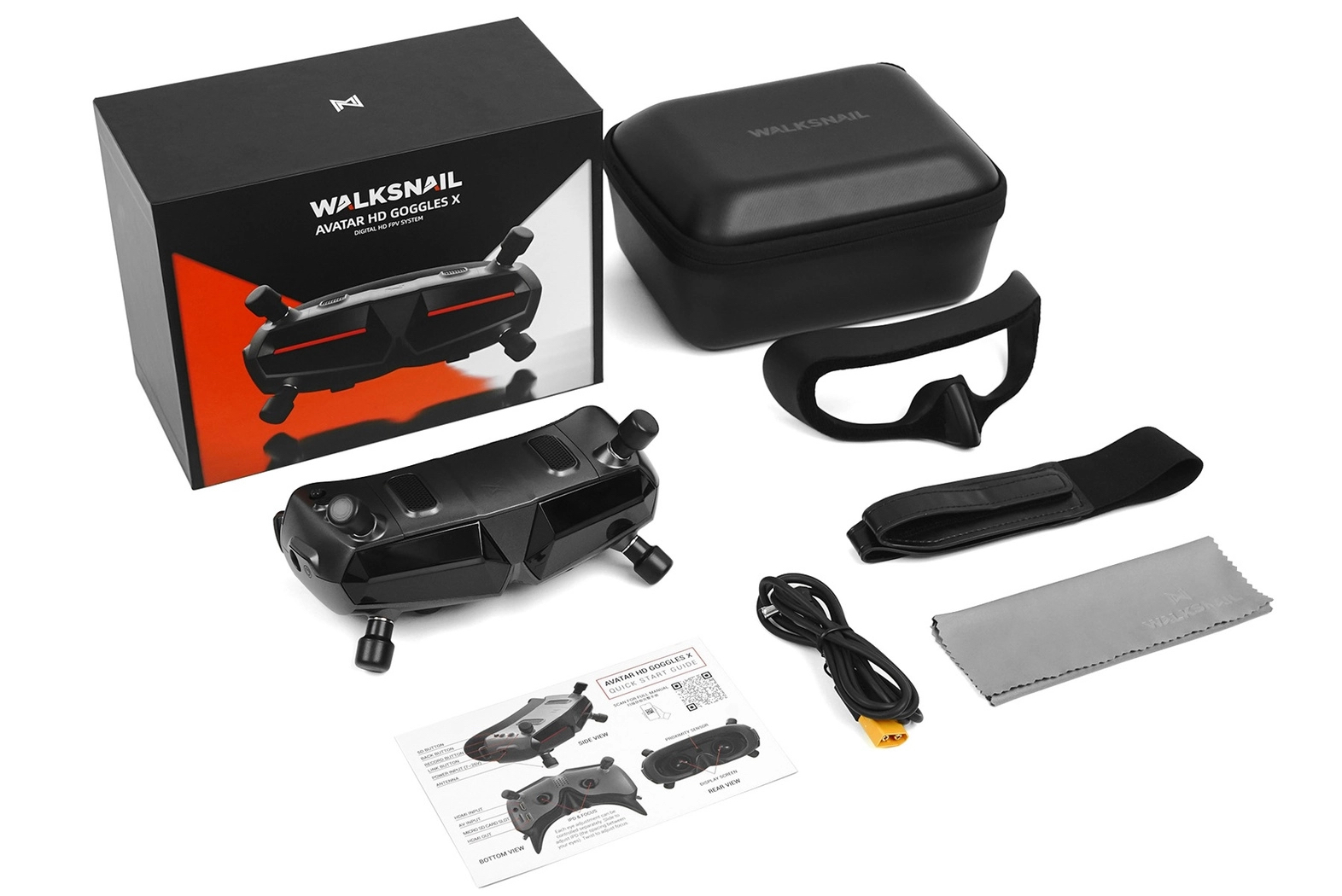

Includes:
• Walksnail Avatar HD Goggles X
• Wide PU Foam Padding
• XT60 to DC Power Cable
• Lens Cleaning Cloth
• Storage Box
• User Manual
